Our SERIE L monocoque dumper trailers have been designed with a body that is lighter, but very strong and reliable.

The reduced tare increases the load capacity of the unit.

Another important feature is the rear door, with hydraulic upwards opening, that can also be opened manually to the side.


Available models
and technical characteristics

Product density:

  • Wheat: 800kg/m3
  • Barley: 650kg/m3
  • Machine harvested grapes: 900kg/m3
Product density:
  • Wheat: 800kg/m3
  • Barley: 650kg/m3
  • Corn: 800kg/m3
  • Machine harvested grapes: 900Kg/m3
Chassis
  • Chassis built in structural steel of tubular profile with a high safety factor.
  • Low profile chassis to reduce total height.
Tipper body
  • Strong & light tipper body.
  • Reinforced with side bends.
  • Optional top extensions. Light and easy to install.
  • Top reinforcement bend also educes product spillage.
  • Front ladder and internal steps.
Door
  • Rear dumper type door with central unloading porthole.
Finishing
  • Shot blasting, electrostatic paint, oven dried.
  • Stainless steel.
According to 2019 Spain Road Regulations: 1 exle GVW 10.000 kg axle + coupling. 2 axles gvw 18.000 kg axles + coupling. Braking compensation valve. Rear underrun protection. Certified couplings: ring, ball and other special types.

  • Volumes from 7 to 13m3.
  • Box with the possibility of a wheel arch.
  • Inner reinforcement fold in breakwater mode.
  • Dumper tailgate with central hatch.
  • Mechanical support foot.
Spanish road traffic legislation:
  • 1 axle MMA 10.000Kgs on the axle plus hitch.
  • 2 axles MMA 18.000Kgs on both axles plus hitch.

  • Volumes from 16 to 30.5m3.
  • The widest chassis on the market: manufactured at maximum width (1.05m) for maximum stability and maximum axle reinforcement.
  • Multifunctional rear door with hydraulic and manual side opening with central unloading door
  • Suspension on leaf spring drawbar with adjustable height.
  • Hydraulic support foot with pump.
  • Chassis width 1050.
  • In tamdem bathtubs fixed axles in tridem models 2 self-steering plus one fixed axle.
Spanish road traffic legislation:
  • Tandem axle tubs of MMA 18000 kg on the axles plus hitch.
  • Trimdem tubs axles of MMA 24000 kg on the axles plus hitch.
  • Long vehicle plates from model LB-650T upwards.

  • Volumes from 14.5 to 30.5m3.
  • Hydraulic and manual side-opening rear door with central hatch.
  • Spring on spear.
  • First axle with slewing ring to facilitate manoeuvring in confined spaces.
Legislation in Spain:
  • Vehicles equipped with 2 axles with a MMA 18.000Kgs on axles.
  • Models above LB650 DE include long vehicle plates.

This range "SERIE L" 2 Axles has been designed for maximum versatility and robustness, being suitable for bulk loading, especially UVA and OIL.

  • Easy hooking and unhooking thanks to the front axle and the spring on the drawbar.
  • The "TWO AXLES" system allows the trailer to be unhitched in the field loaded without problems of jamming.
  • Its pivoting front axle allows it to turn in a confined space.
  • Load volumes range from 10.9 to 15 m3.
Spanish road traffic legislation.
  • Vehicles equipped with 2 axles of MMA 18000 kgs on both axles.

  • This "SERIE L" 3-axle (2+1) range has been designed for maximum versatility, being suitable for bulk and palletised loads with easy dismantling of the sides.
  • Easy hooking and unhooking thanks to its front axle and drawbar spring.
  • Its front axle allows it to turn in a small space.
  • Volumes from 22 to 30.5 m3.
  • The 800 model is manufactured with a central rib and a box apex tube.
Legislation in Spain
  • Vehicles equipped with 3 axles of MMA 24.000Kgs.
  • Long vehicle plates on all models.

Sales Department - Agriculture

Telephone:
974 474 150
Fax:
974 474 157
E-mail:
agricola@rigual.es
contact

Galleryuses and applications

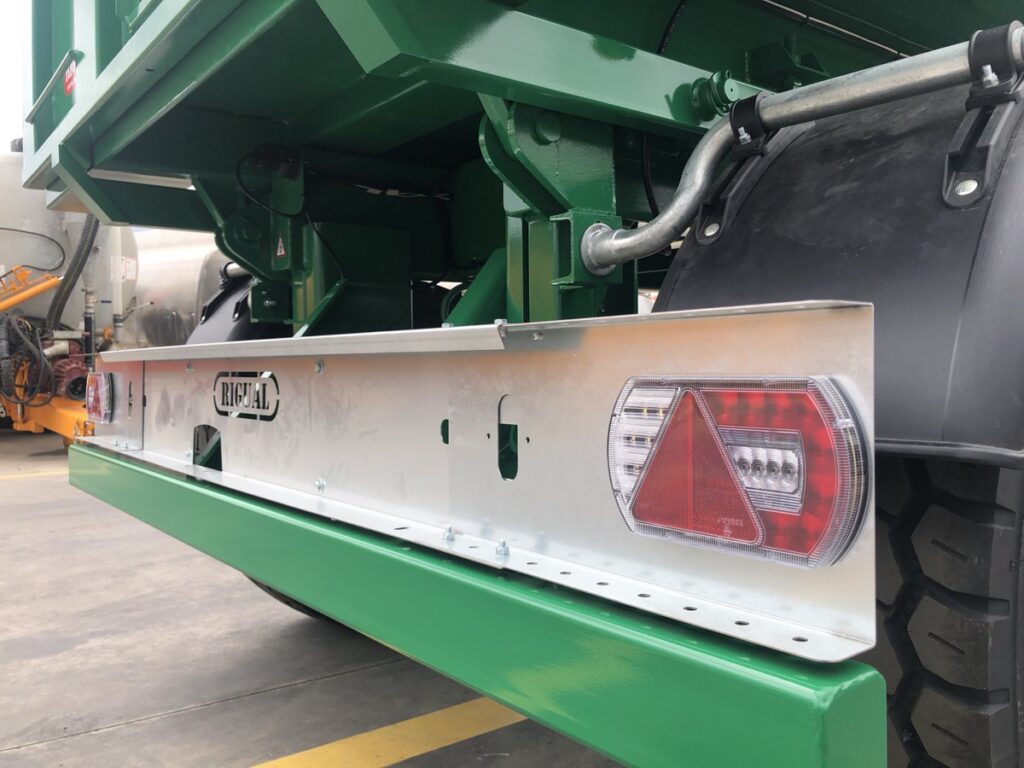

detalle parachoques y luces led bañera lb rigual

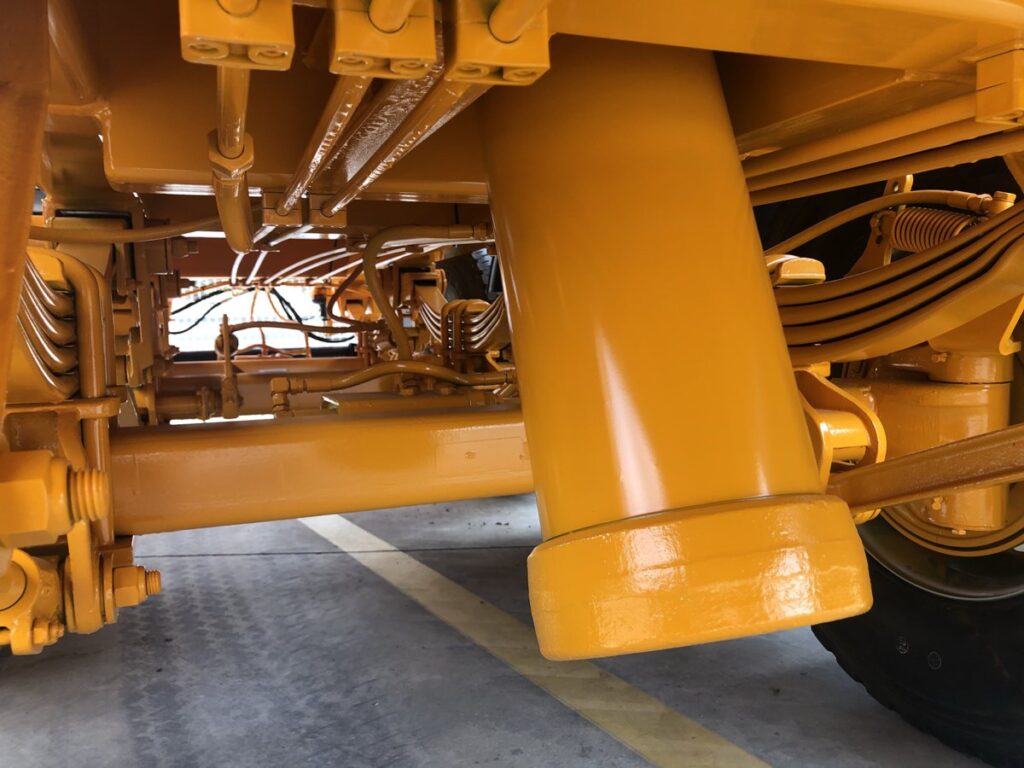

detalle ejes bañera cerealista rigual

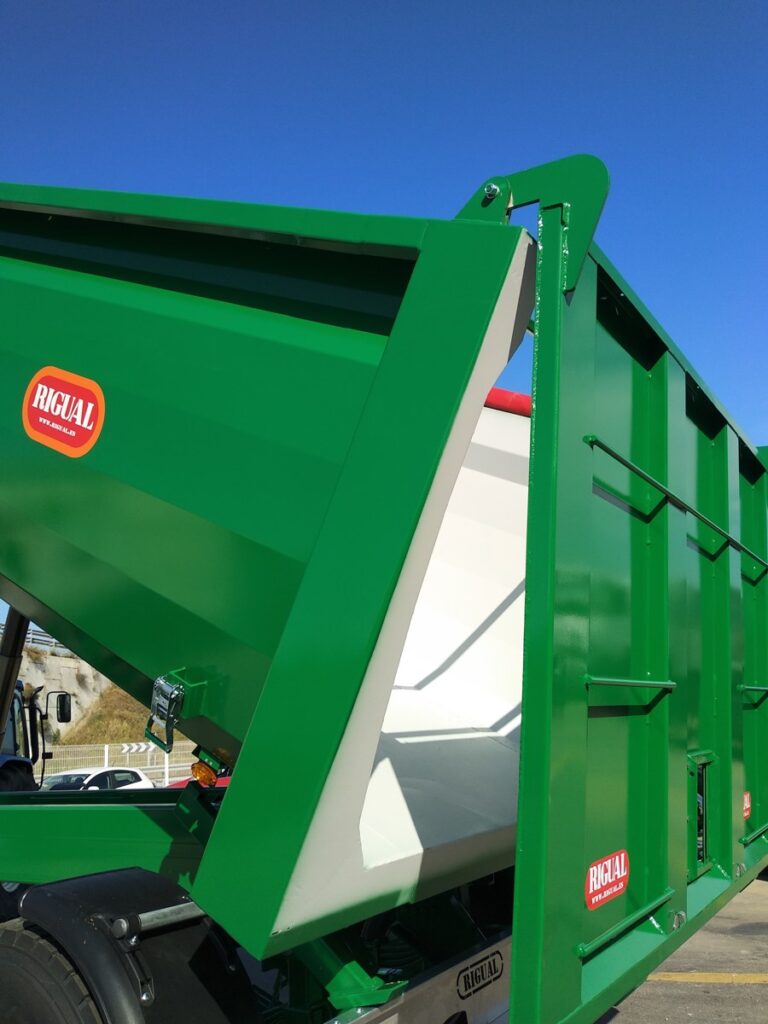

detalle apertura puerta bañera rigual lb

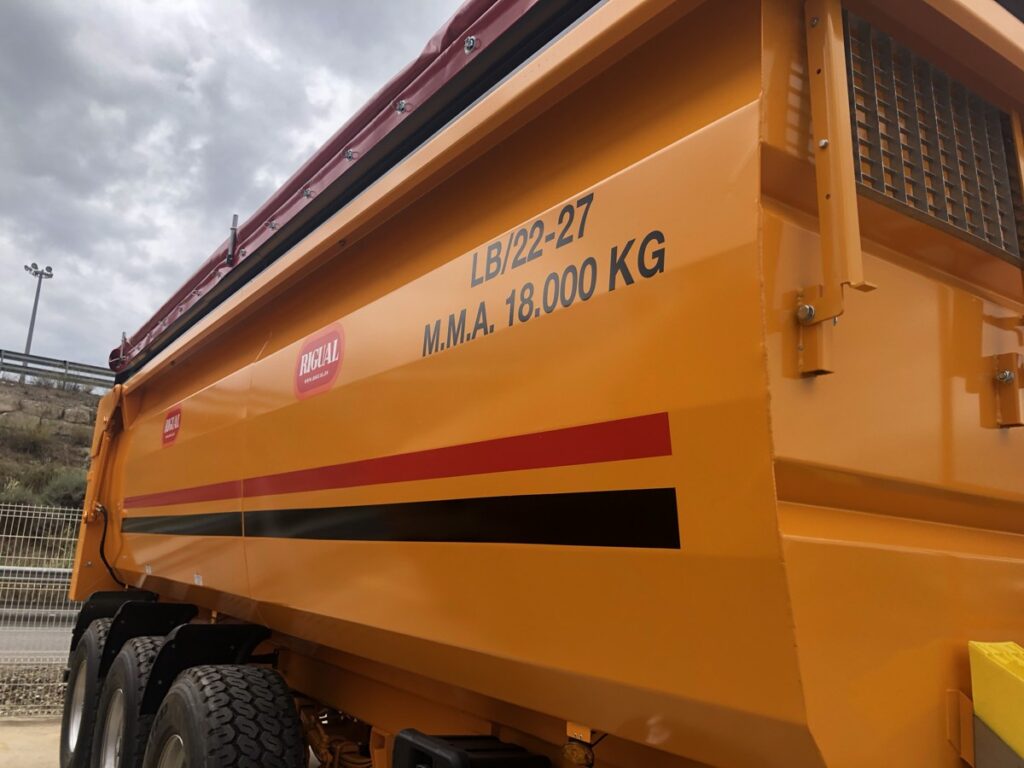

bañera rigual tridem cerealista

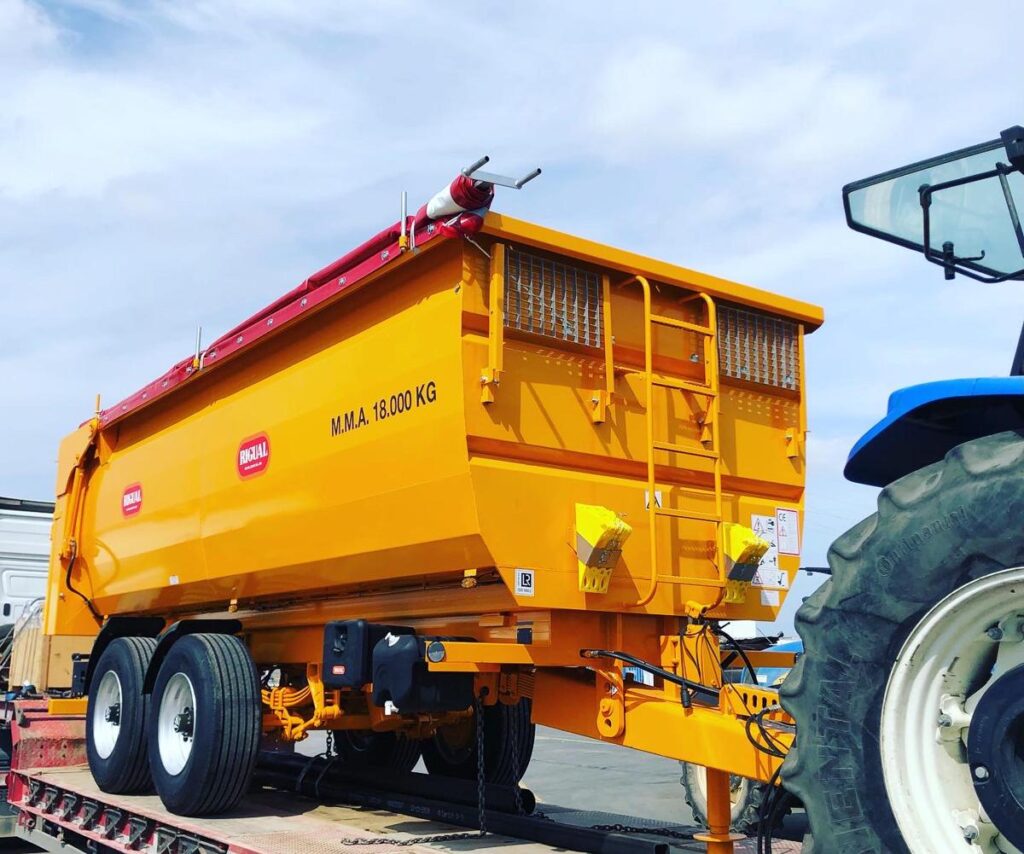

bañera rigual mma 18000

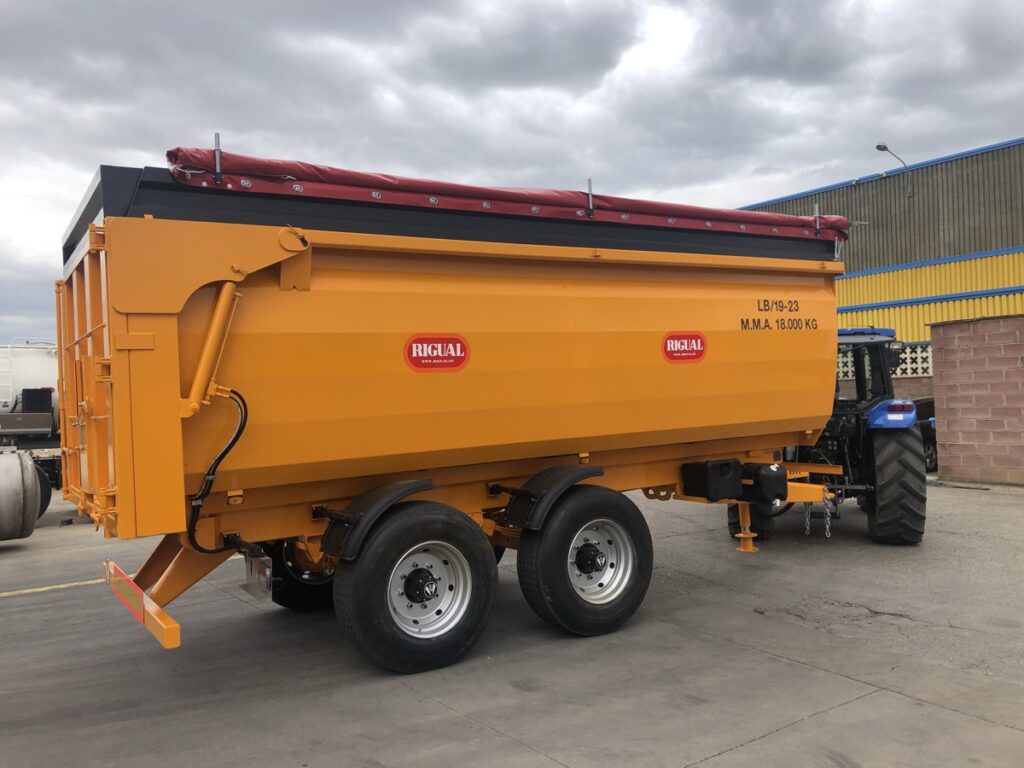

bañera rigual lb19-23 con alzas y toldo

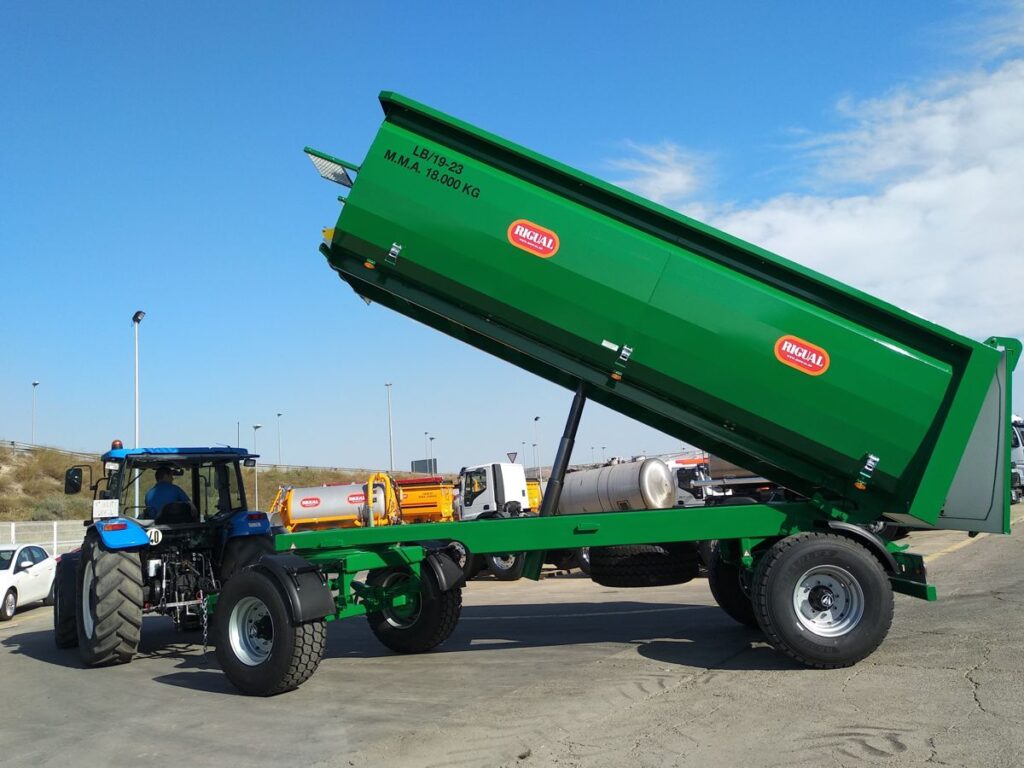

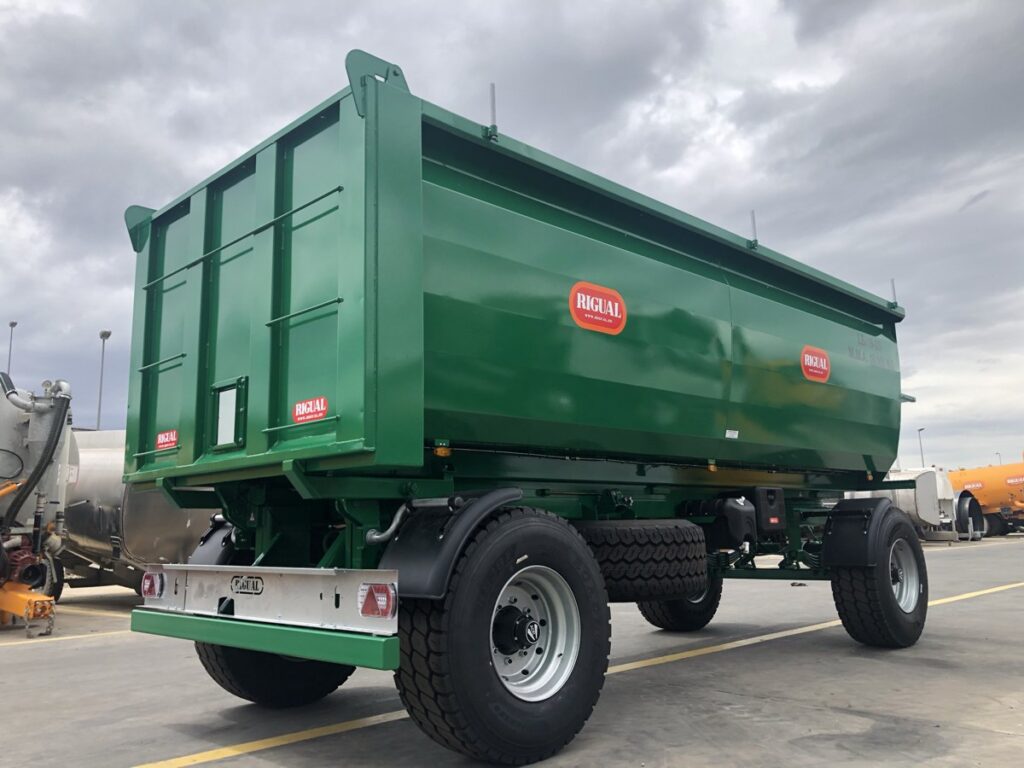

bañera rigual lb dos ejes

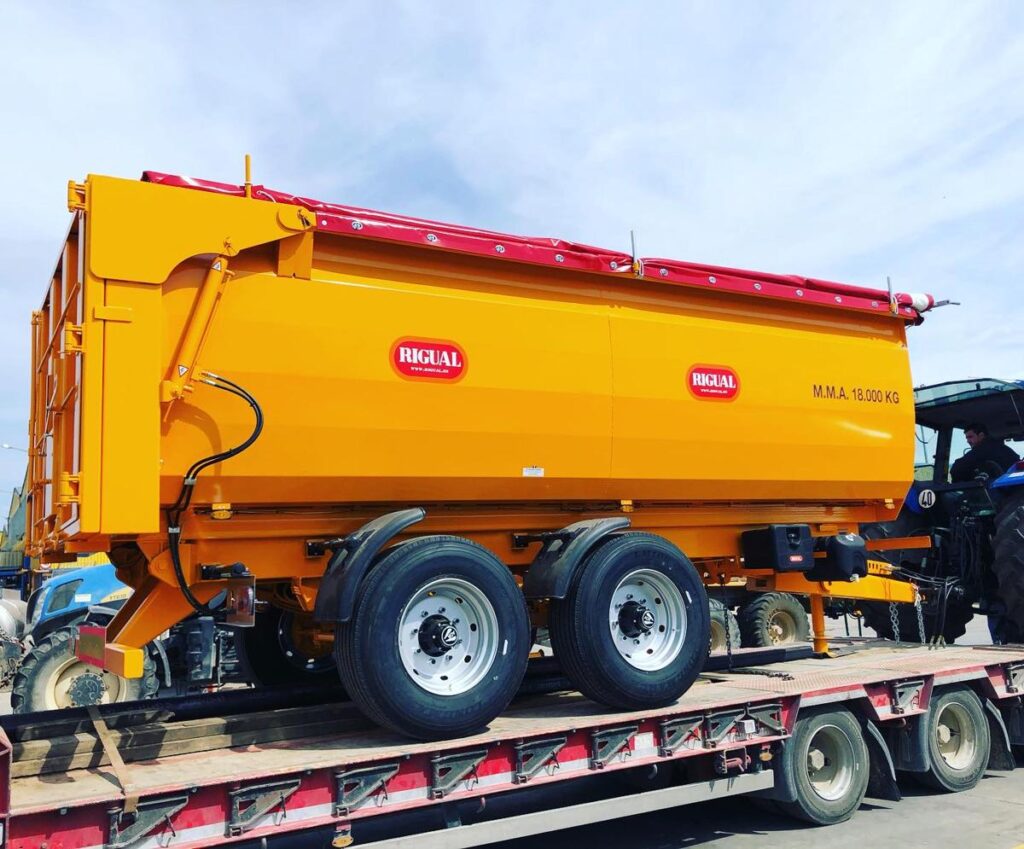

bañera lb

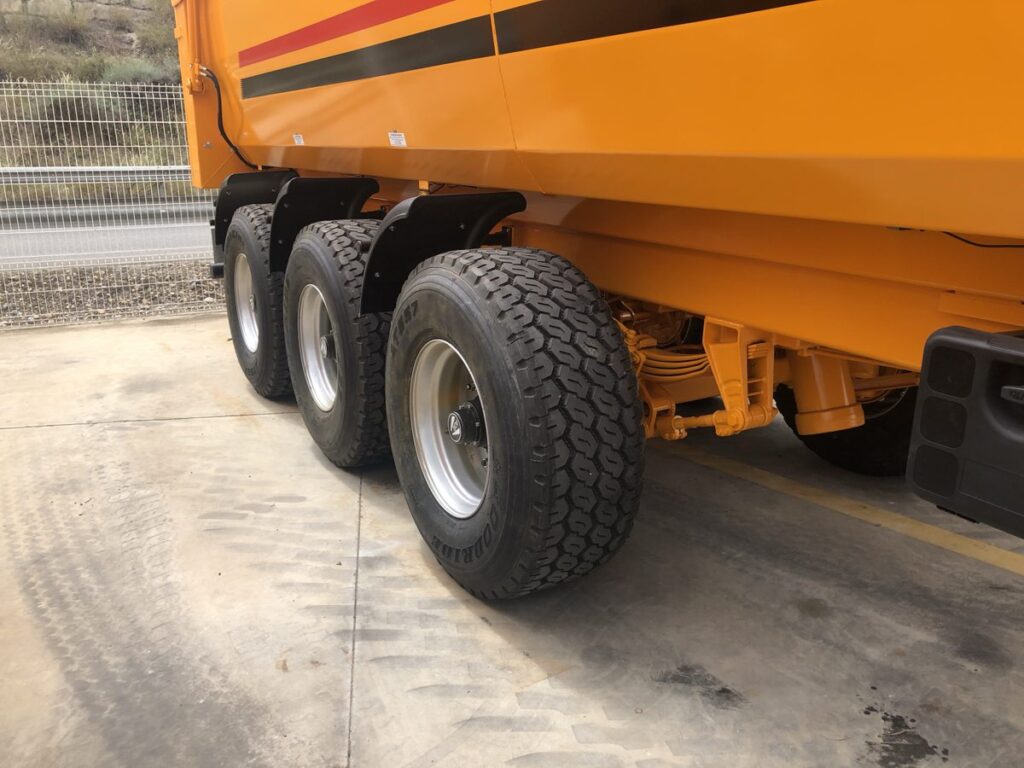

bañera lb tridem detalle ejes

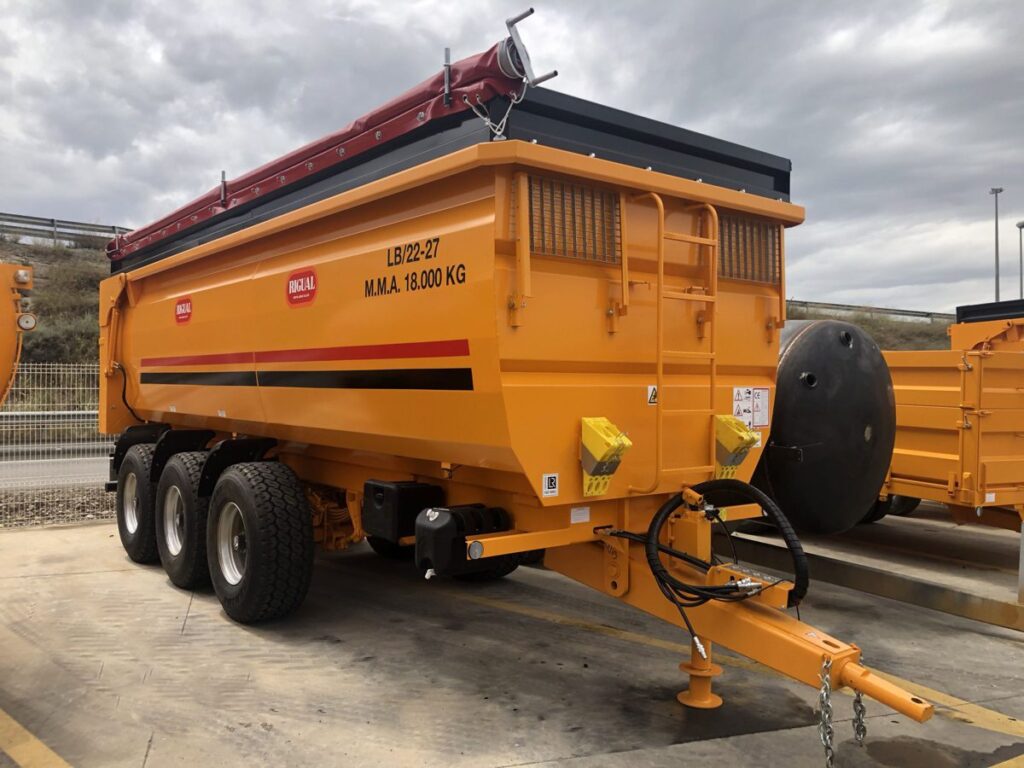

bañera lb tridem con alzas y toldo abrelata

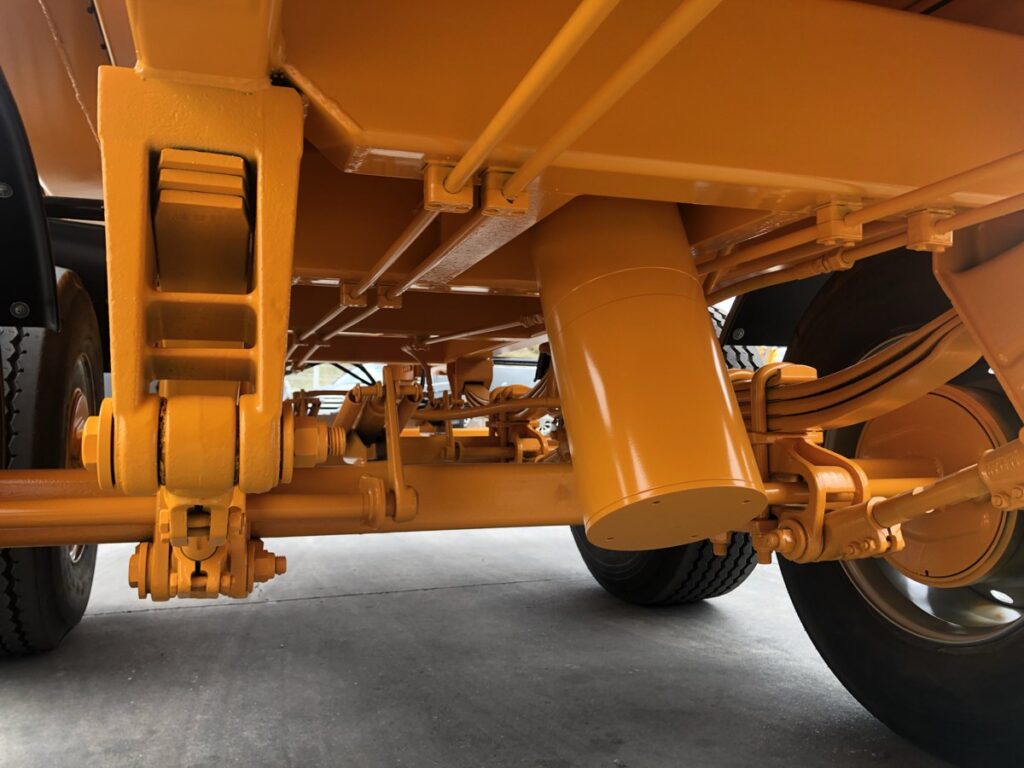

bañera lb tandem ejes

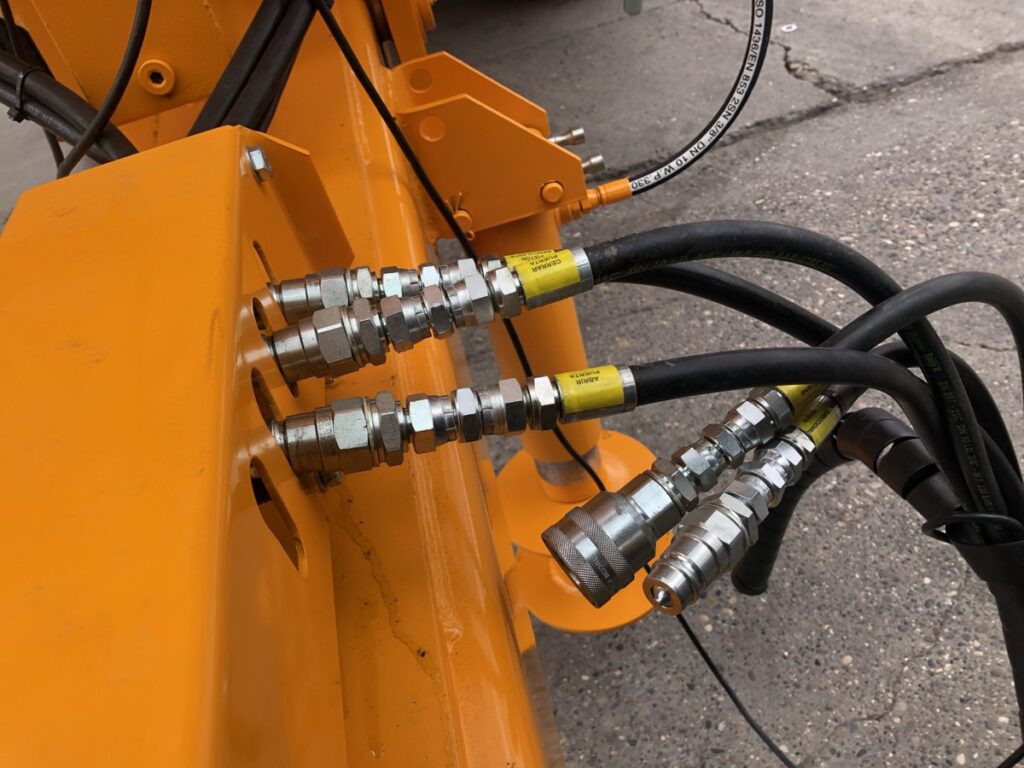

bañera lb detalle latiguillos

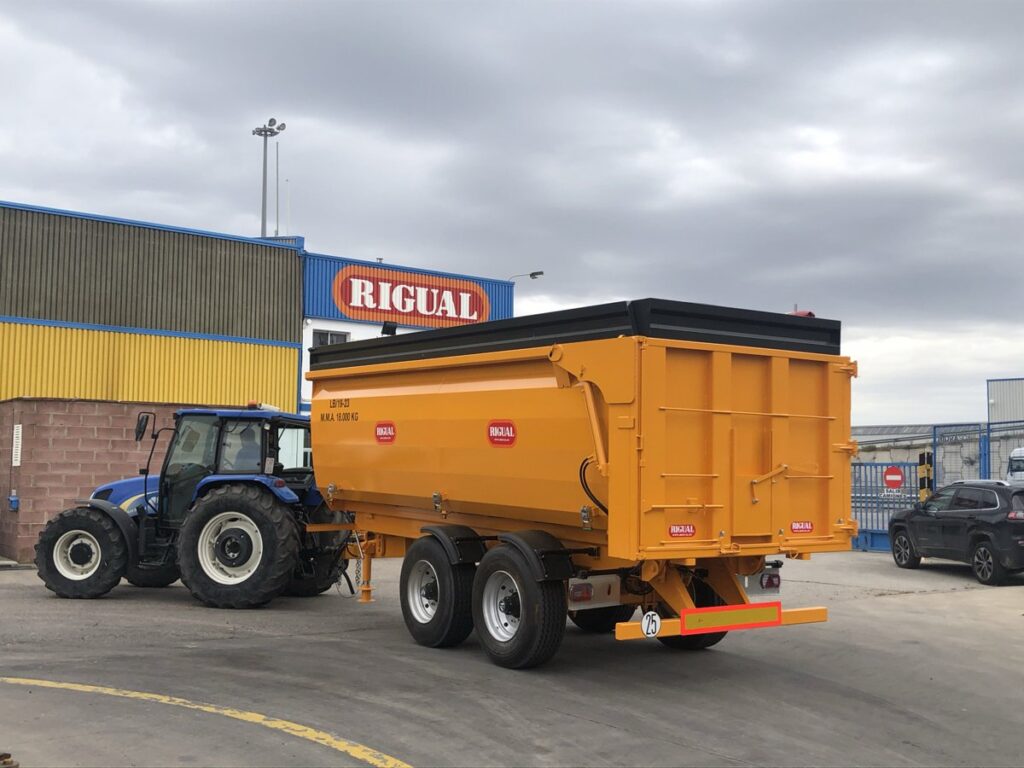

bañera lb con alzas

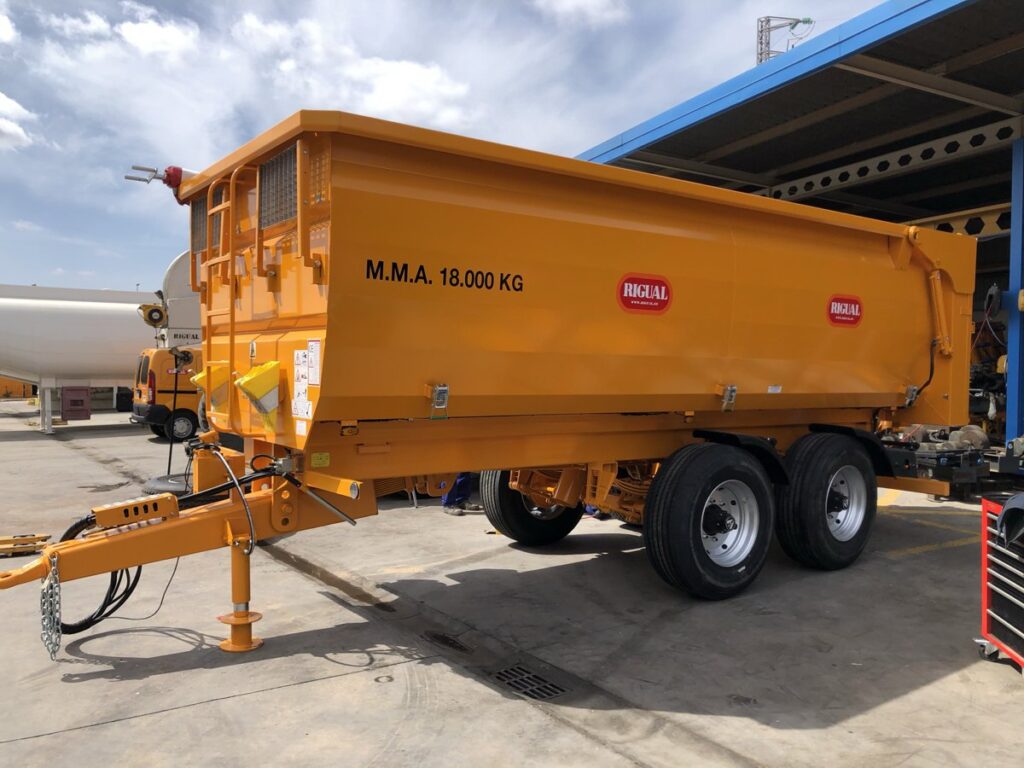

bañera lb 18000

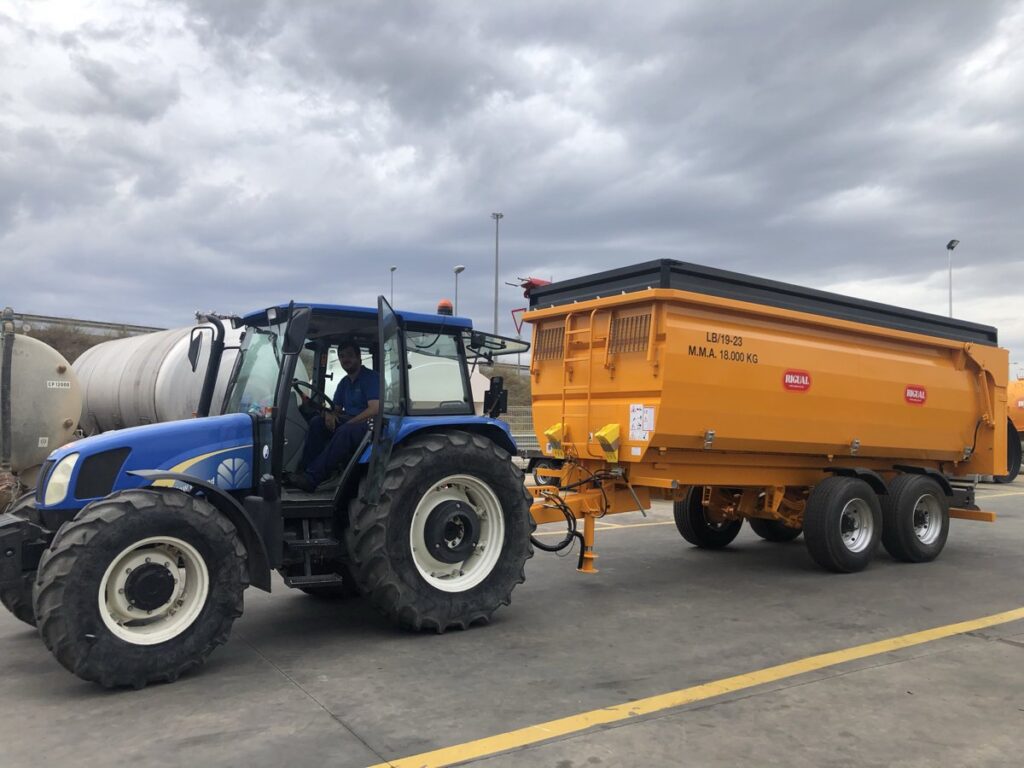

bañera cerealista tandem con alzas

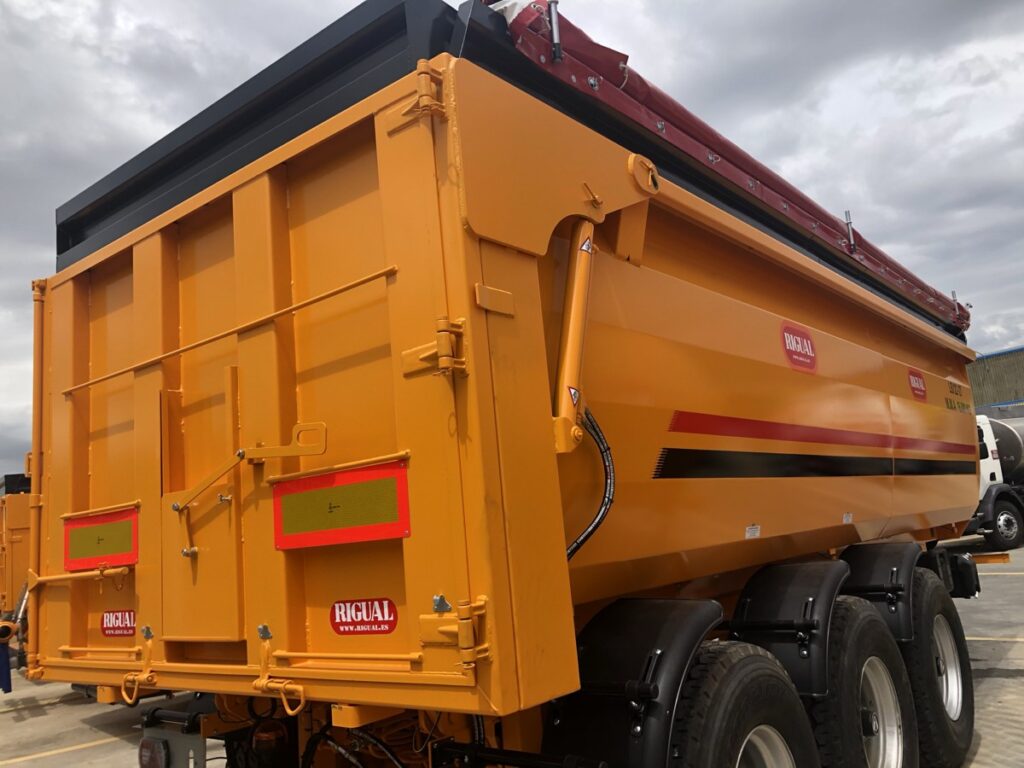

bañera cerealista rigual tridem

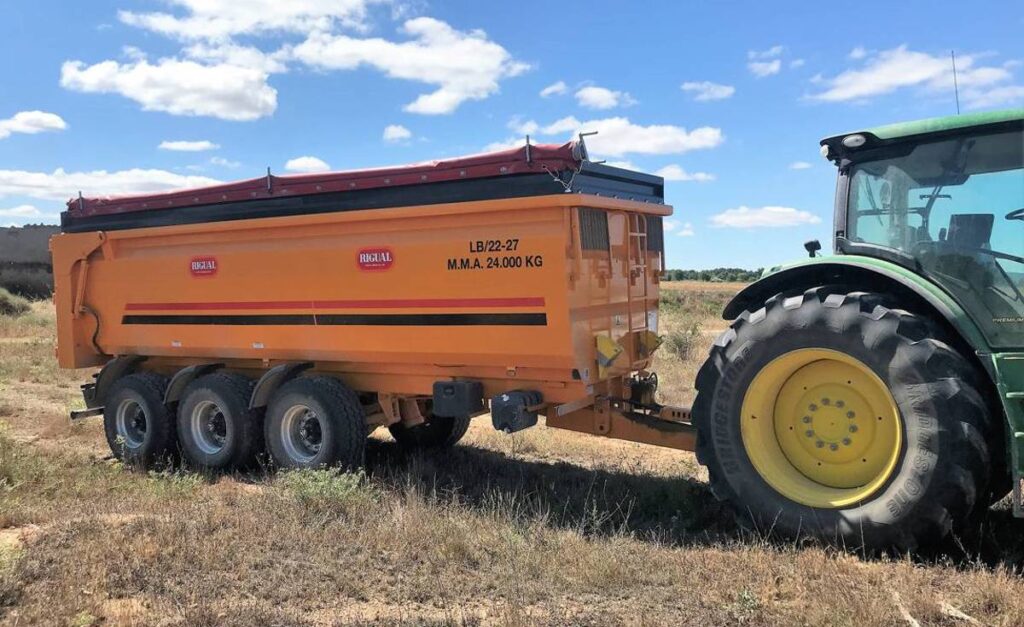

bañera cerealista rigual tridem con alzas y toldo

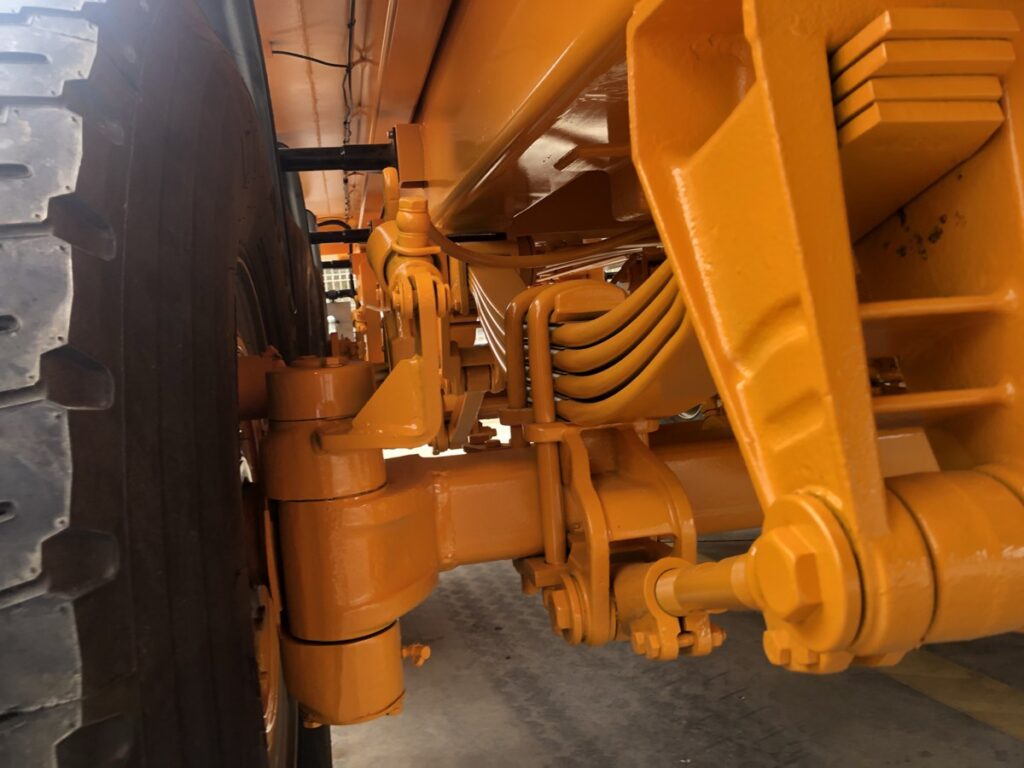

bañera cerealista rigual detalle suspensión

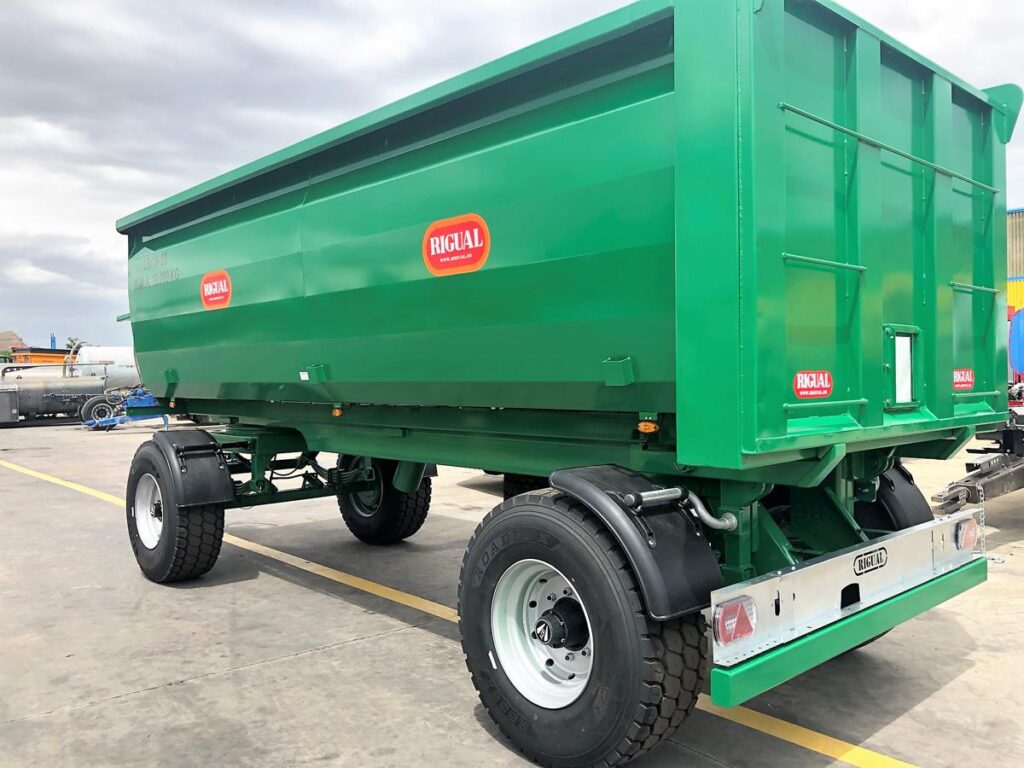

bañera cerealista lb dos ejes

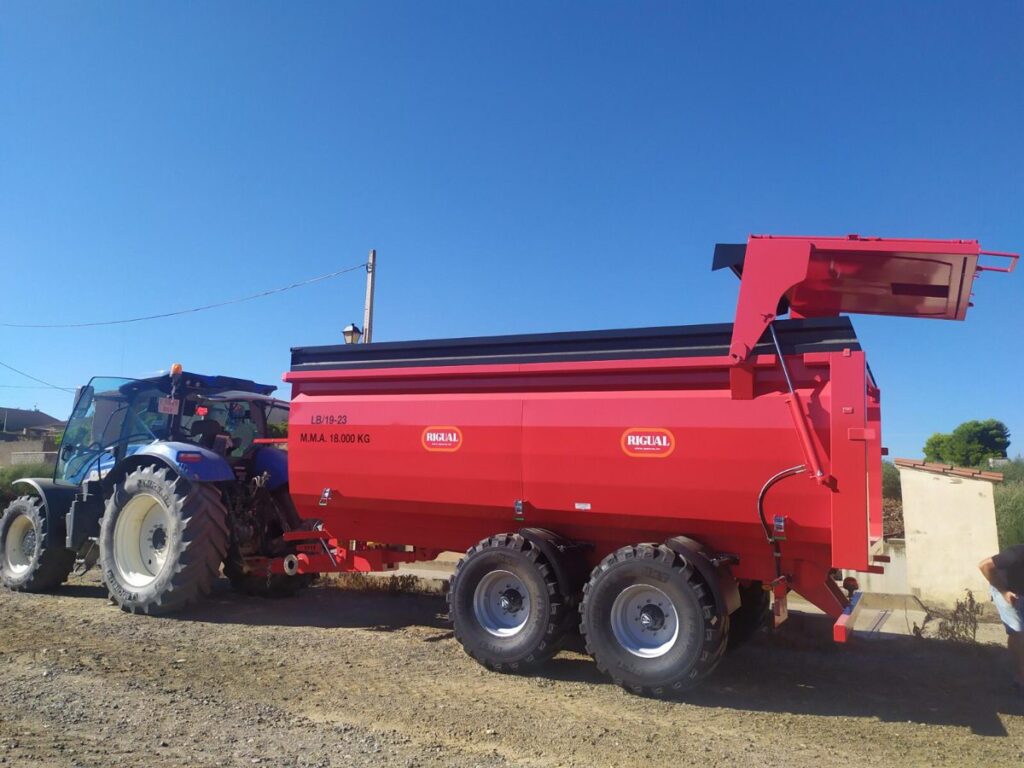

bañera agricola rigual tandem con neumaticos de flotación

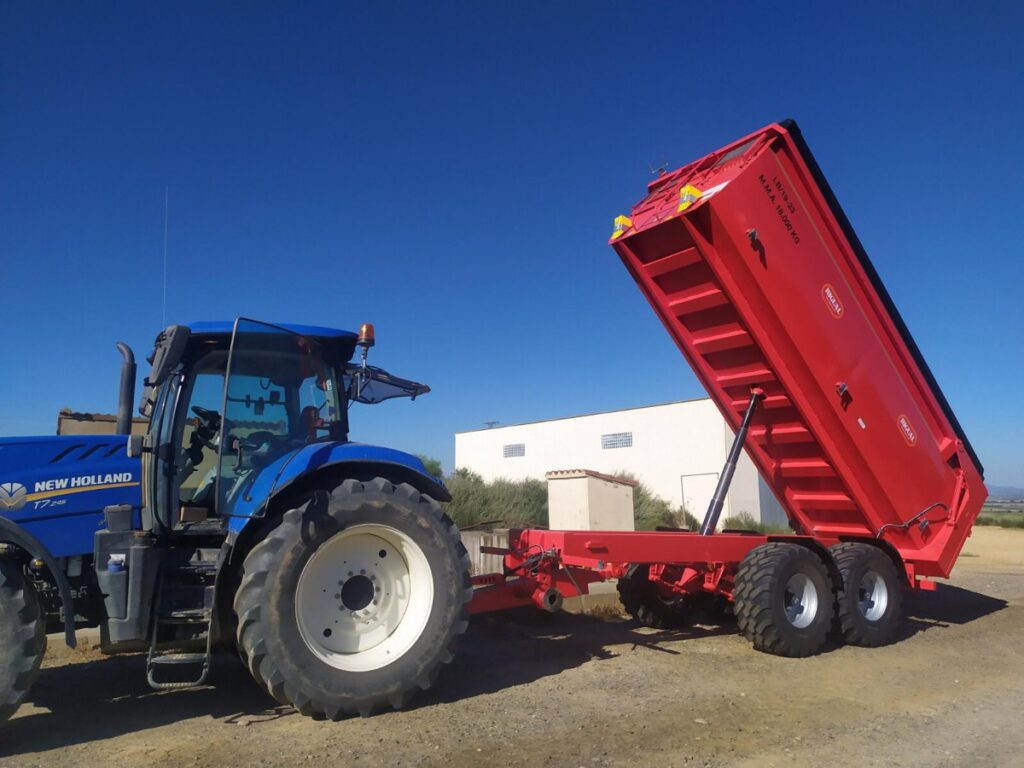

bañera agricola rigual tandem basculada

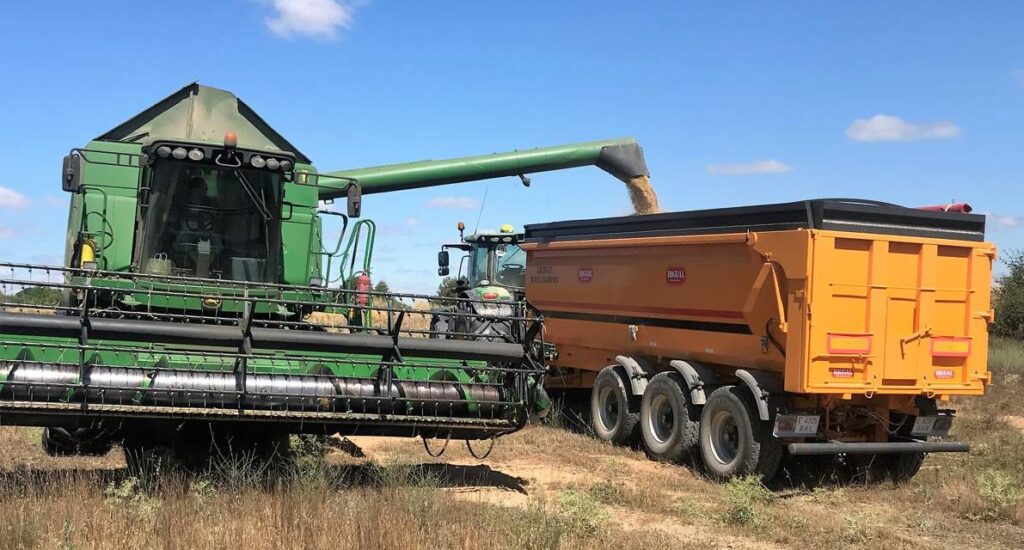

bañera agricola rigual lb tridem cerealista

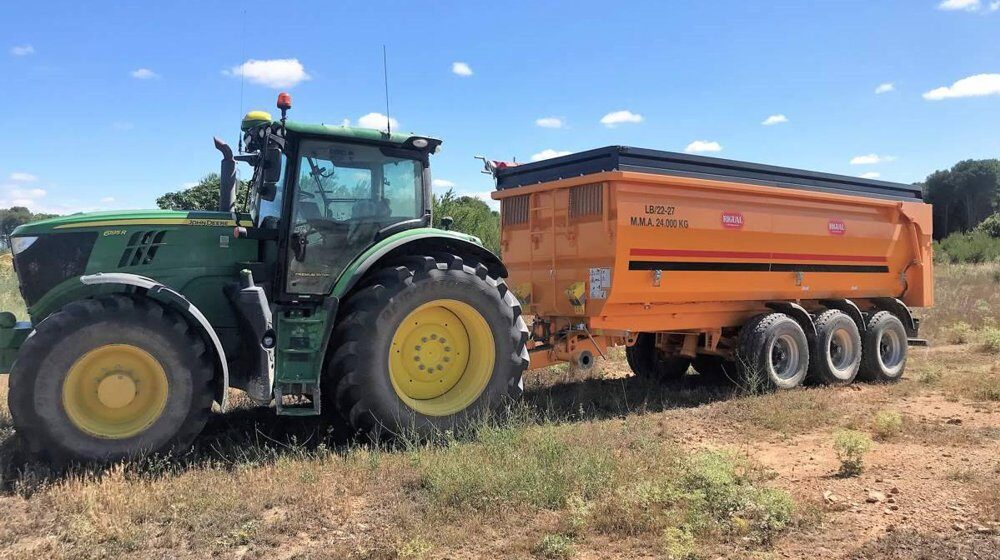

bañera agrícola lb 22-27 tridem

bañera agrícola lb 22-27 tridem

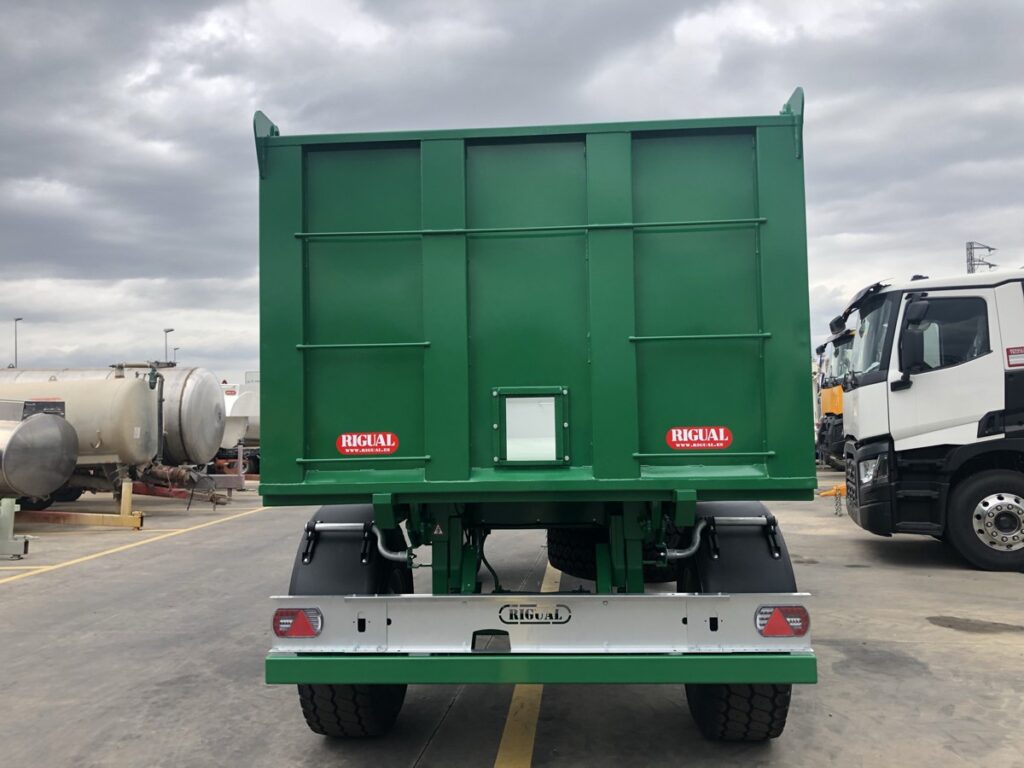

detalle puerta bañera agricola de dos ejes

Product
advantages

The L Series tubs are versatile vehicles that can be used for different purposes depending on their volumes. We have specialised models designed for bulk loading of grapes and olives, as well as for any other type of product or load that may be required.

In the design of the L-Series tubs we have prioritised the needs of the user. A lower tare weight will allow a higher loading weight and therefore a higher transport volume is guaranteed.

The different models of tubs will allow you to carry out high volume loads with or without lifts thanks to their first axle lift with automatic lowering and pull assist.

In the development of the two models, we have sought to provide them with maximum stability and safety, as well as greater lightness and robustness by reinforcing the sides with XX mm side folds made of stainless steel.

In our designs we always take into account the use that is going to be given to the vehicles, so we adapt the different components to ensure their durability and that they comply with current legislation for each purpose, for example, in the case of grape harvesting, an INOX tub, etc. will be used. We have a wide range of options to adapt the tub to your specific needs, obtaining totally personalised vehicles.

We know that the entry and exit of vehicles must be fast and comfortable, so we have models with hydraulic and manual doors, with DUMPER type locking on the smaller models.
