Vineyard L SERIES Dumper trailers - Stainless Steel - Rigual

This product range has been based on the successful design of our “L SERIES” and built in stainless steel for vineyard use.


Available models
and technical characteristics

Volumes from: 9.7 to 11.5 m3. Specific weights of loads:

  • Machine harvested grapes: 900Kg/m3
  • Hand-picked grapes: 800Kg/m3
  • Reinforced structural tube chassis with load rating above the rated load.
  • Recessed chassis to optimise overall height.
  • Wheel arch.
  • High quality AISI-304 stainless steel case.
  • Double bottom in stainless steel 3 mm.
  • Total height of the machine is less than 2.30 metres, making it easier to unload the grape harvester.
  • Folded reinforced box.
  • The shape of the box provides good visibility when reversing.
  • Upper breakwater integrated into the box.
  • Front staircase.
  • Rubber door with rubber and nail lock with 3 snap latches and 3" ball valve.
  • Finished in stainless steel or food grade paint.
Legislation in Spain:
  • Vehicles equipped with 1 axle - MMA 10.000Kgs.
  • Vehicles equipped with 2 axles - MMA 18.000Kgs.
  • Brake control valve.
  • Rear bumper.
  • Certified hooks.

Sales Department - Agriculture

Telephone:
974 474 150
Fax:
974 474 157
E-mail:
agricola@rigual.es
contact

Galleryuses and applications

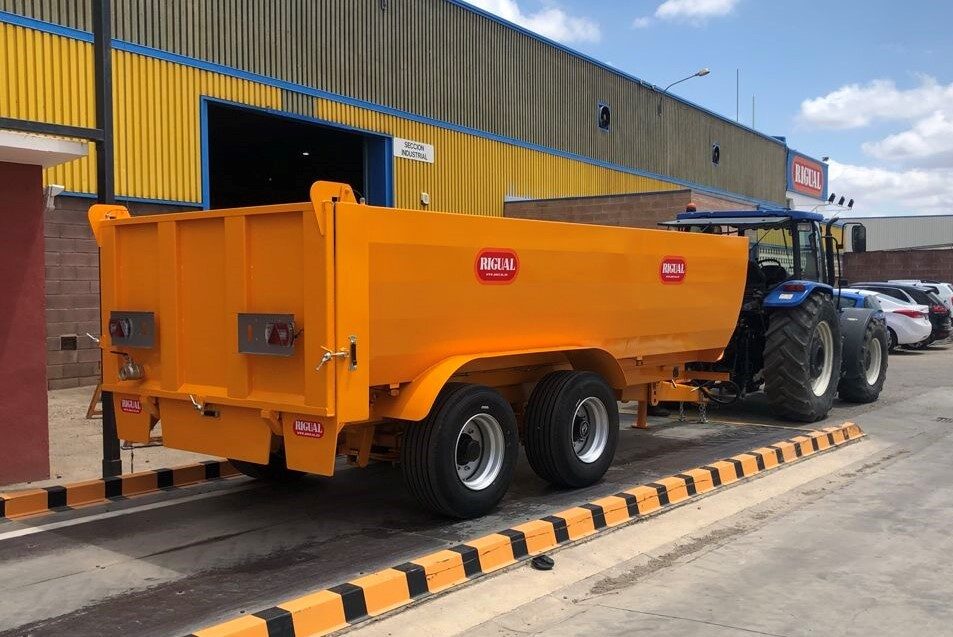

bañera vina Rigual tandem con paso de rueda

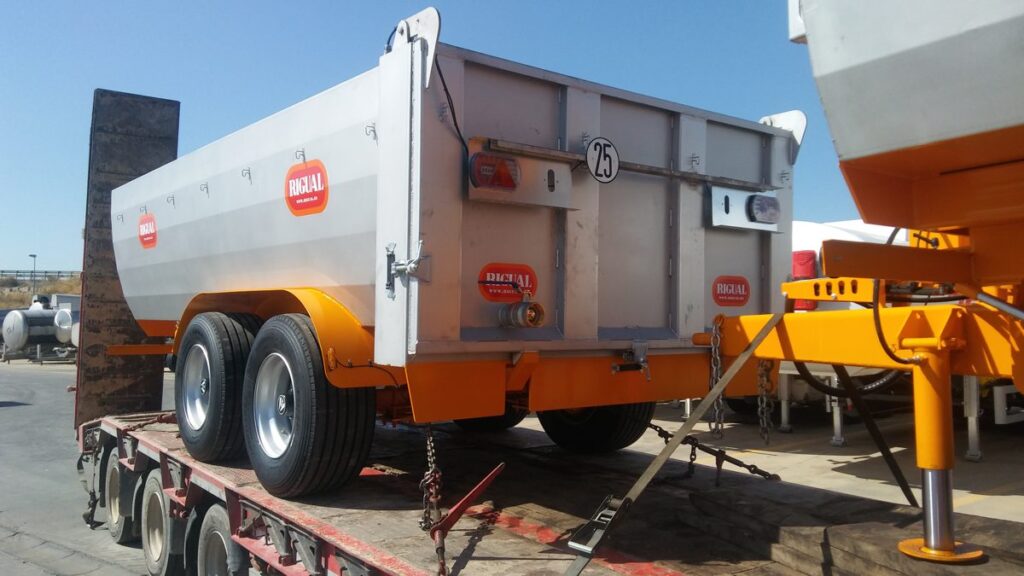

Bañera vina Rigual tandem con paso de rueda en acero inoxidable

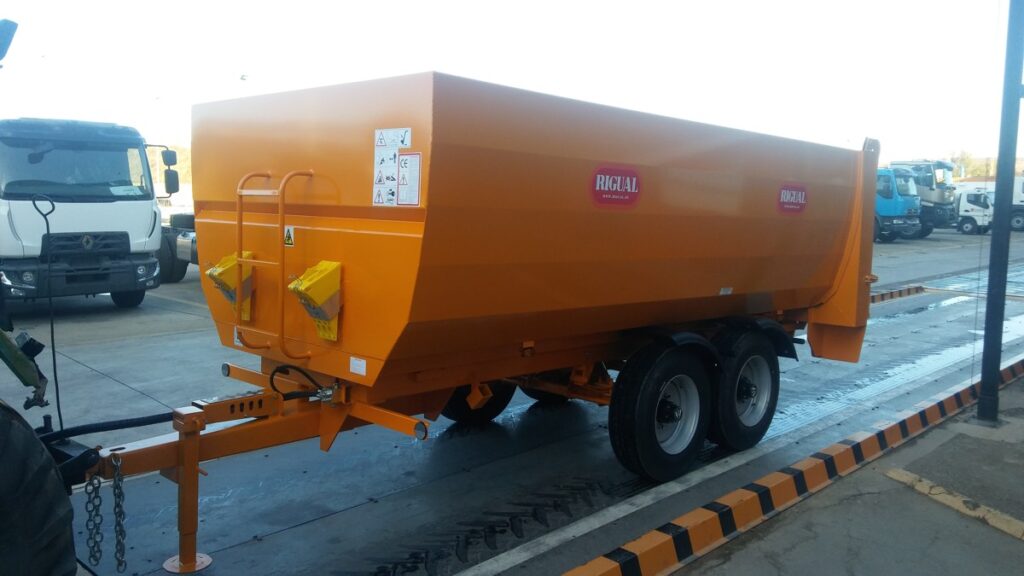

Bañera vina Rigual con rompeolas y puerta automatica

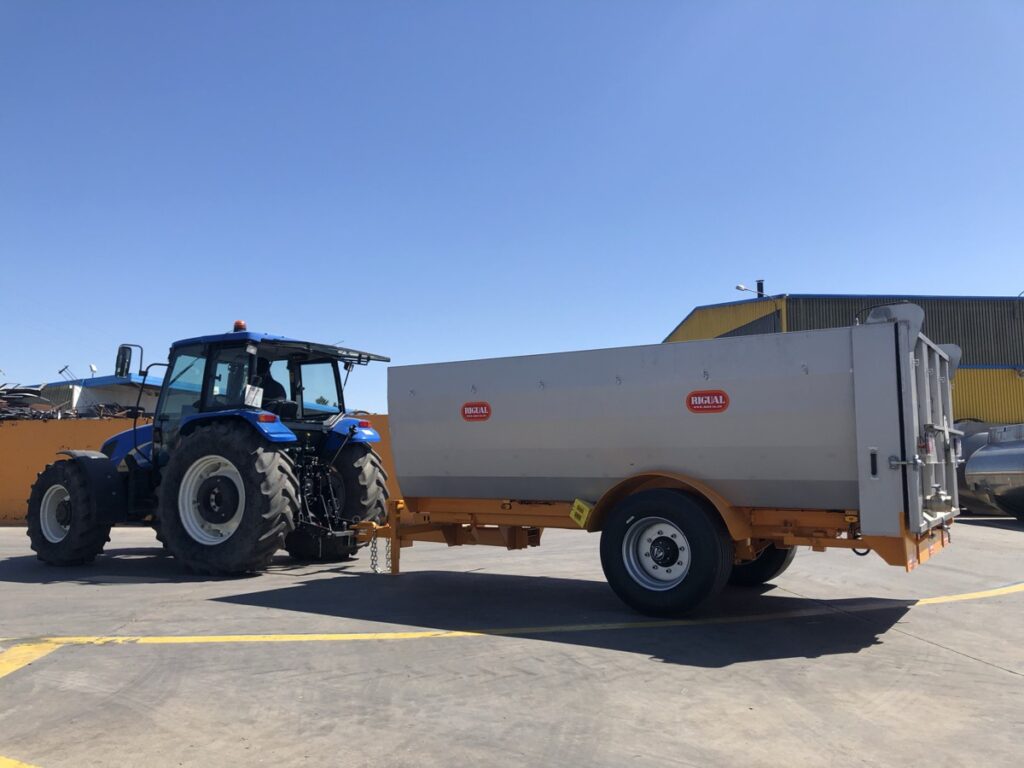

Bañera vina de un eje con paso de rueda

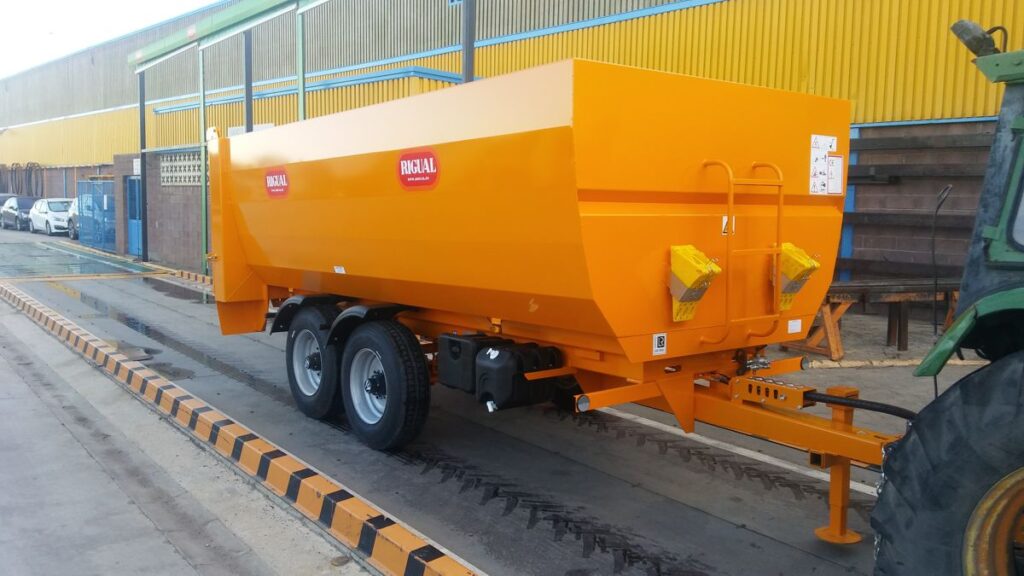

Bañera tandem Rigual de 4_75 metros con rompeolas

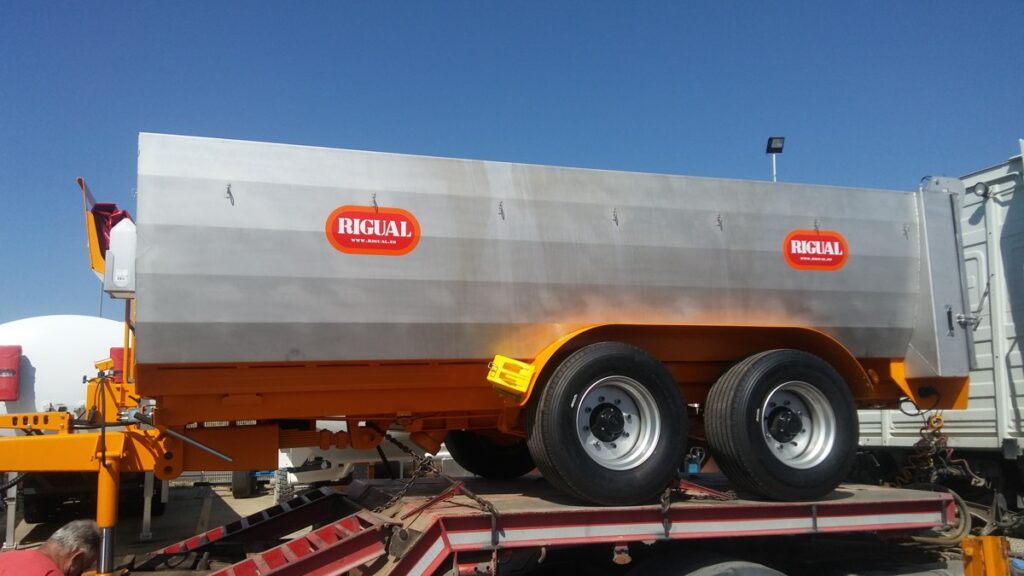

Bañera Rigual especial viña tandem con paso de rueda

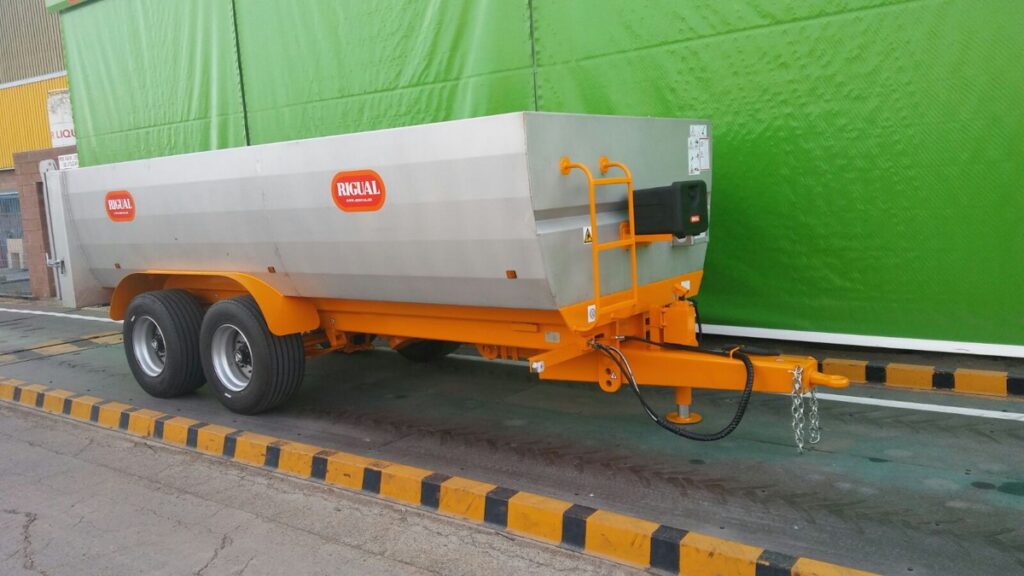

Bañera Rigual especial viña tandem con paso de rueda y rompeolas interior

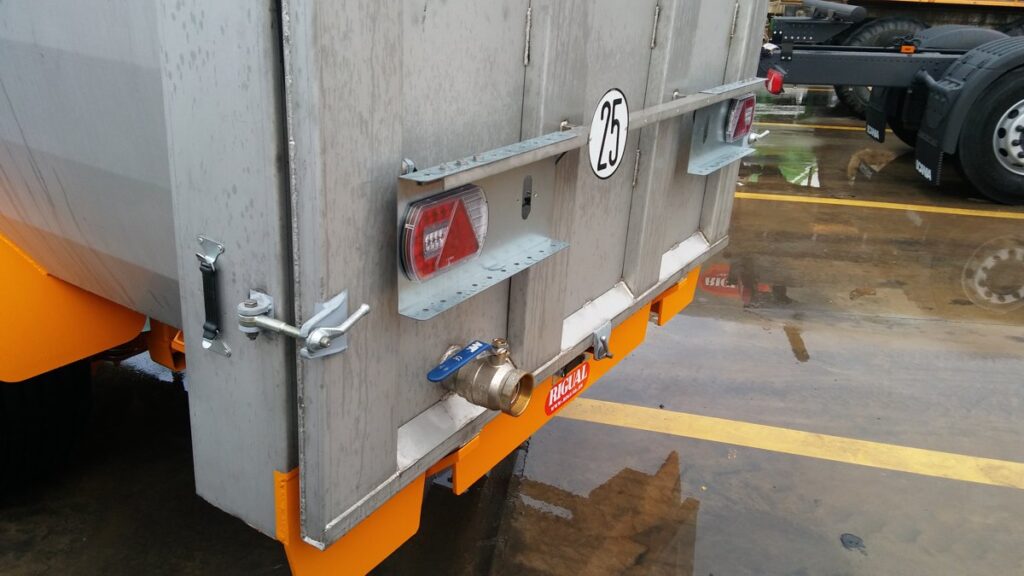

Bañera LS-420 en inox con paso de rueda doble fondo y rompeolas

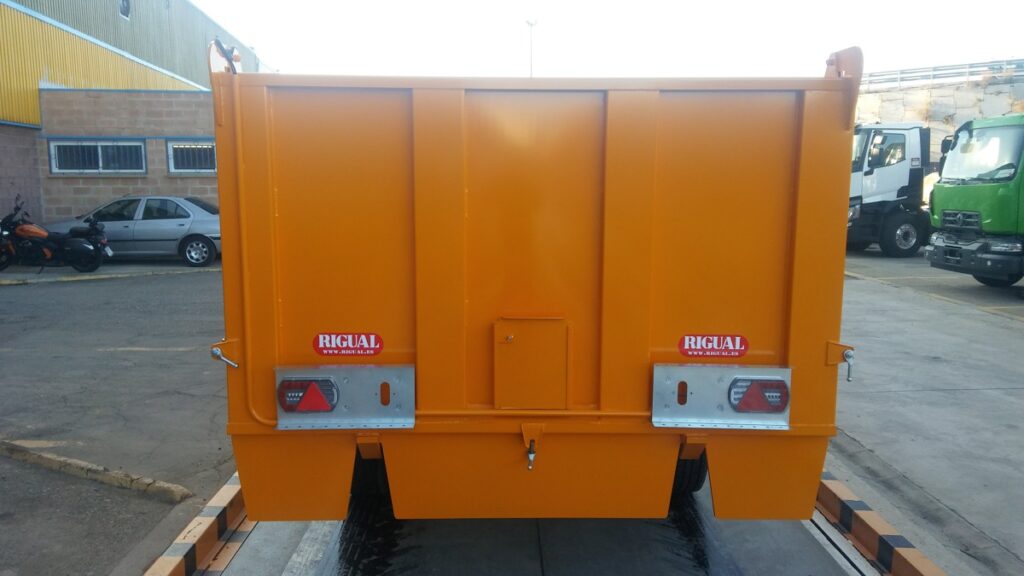

Puerta automática bañera rigual especial viña y aceituna

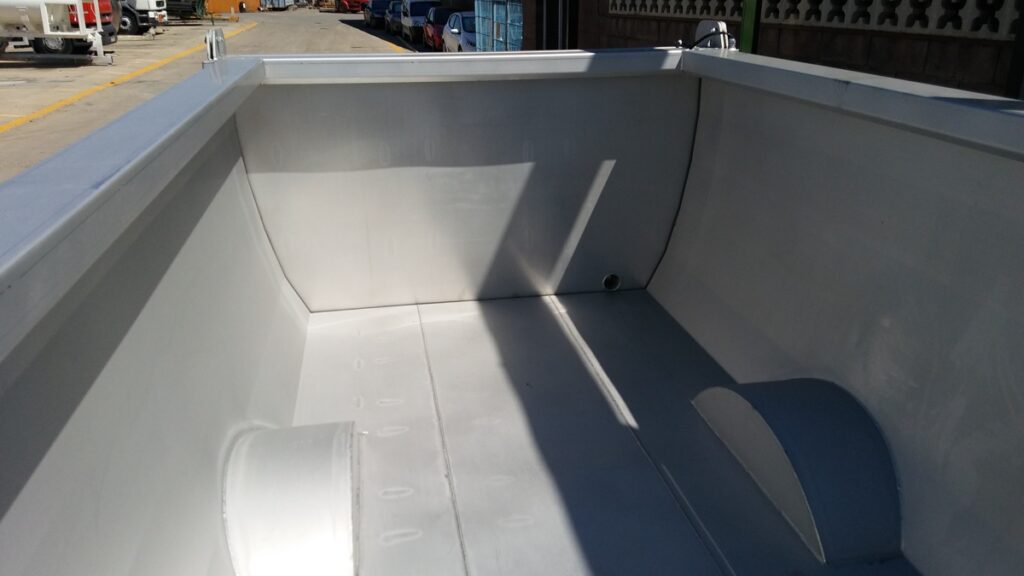

Interior bañera viña con paso de rueda de un eje con rompeolas

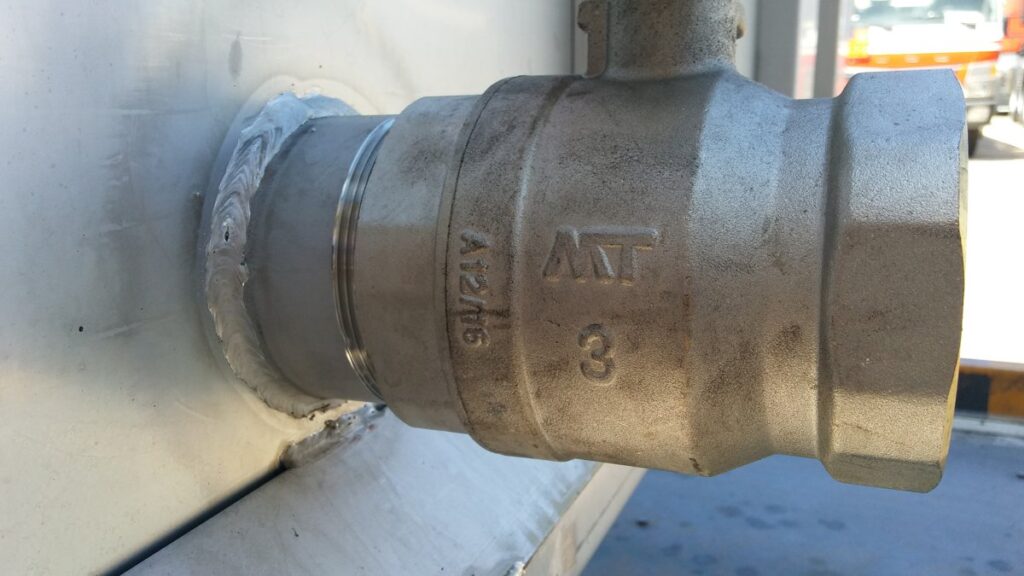

Grifo para descarga caldo en bañera de viña rigual

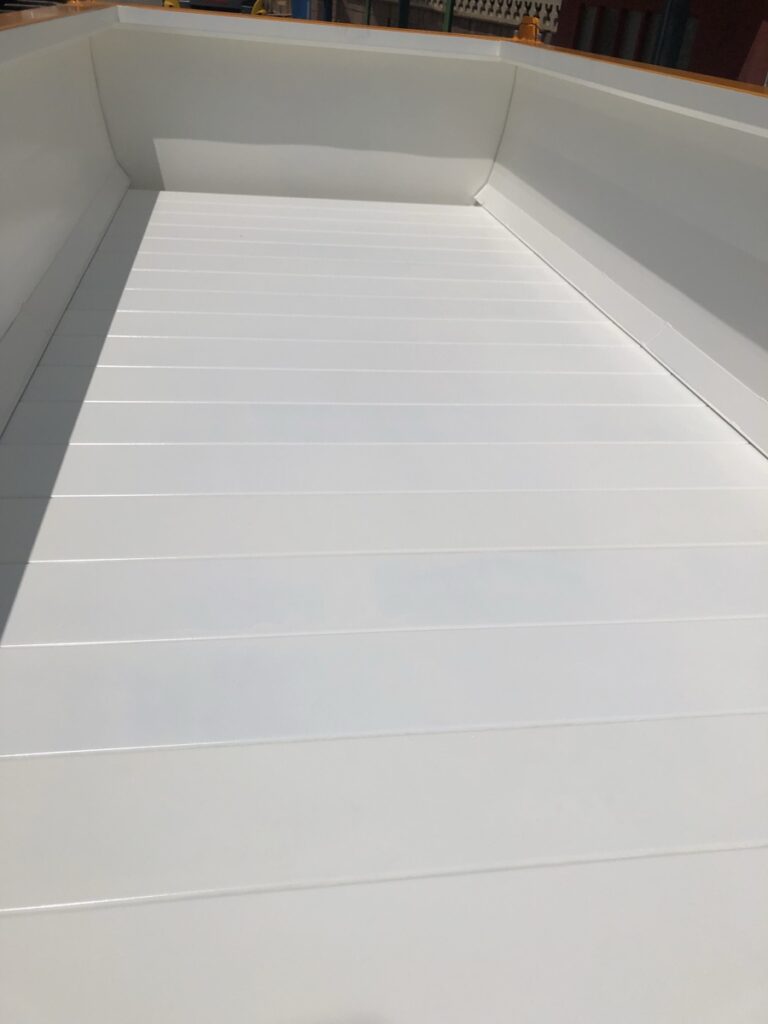

Doble fondo bañera viña

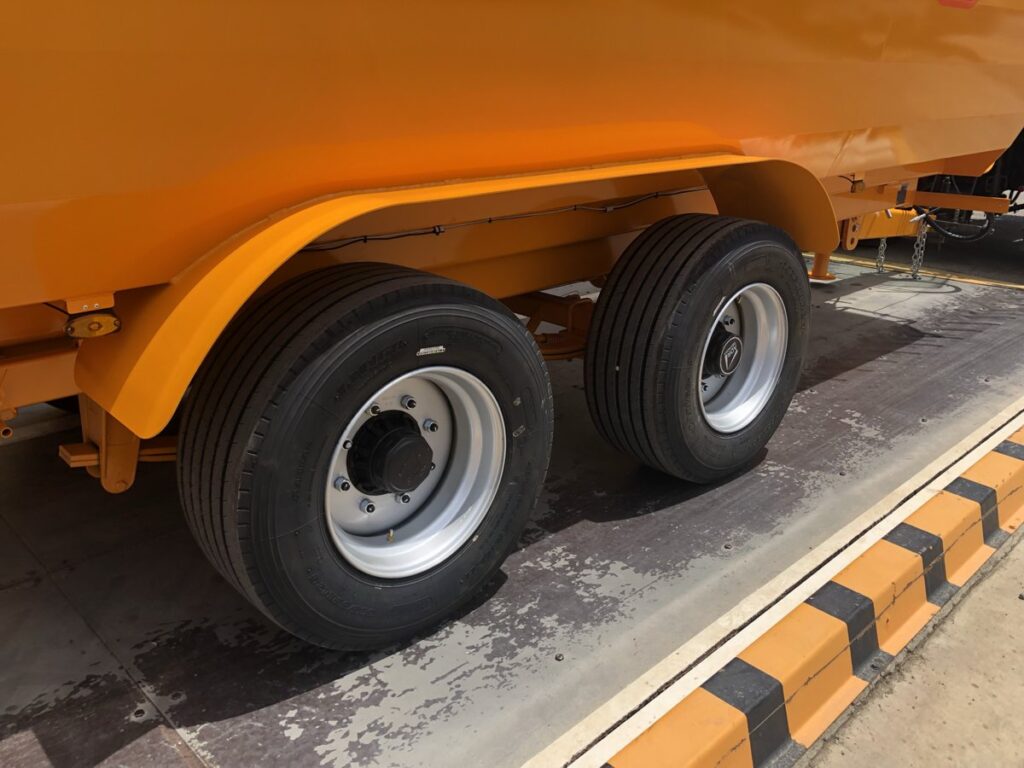

Detalle paso de rueda tandem en banera vina

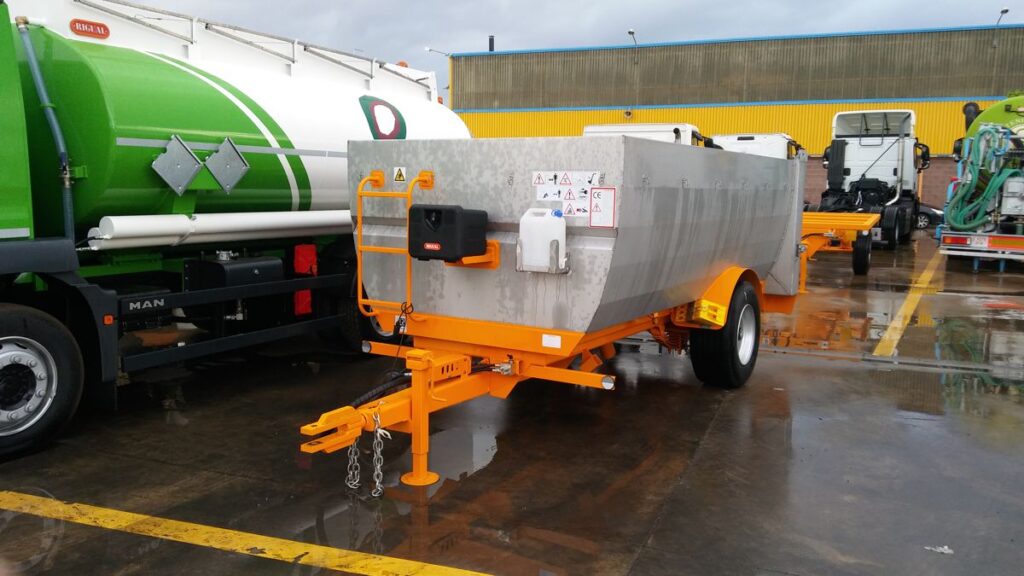

Bañera viña Rigual con un eje paso de rueda y doble fondo

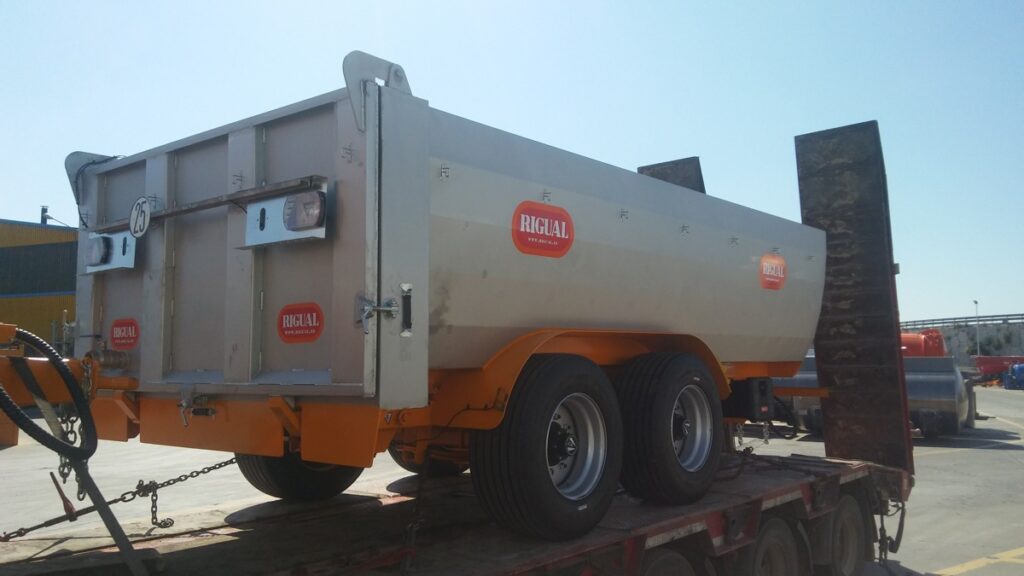

BAÑERA VIÑA INOX MBT-12 SERIE LS PASO RUEDA P.AUTOM + HERMET. -19105- (7)

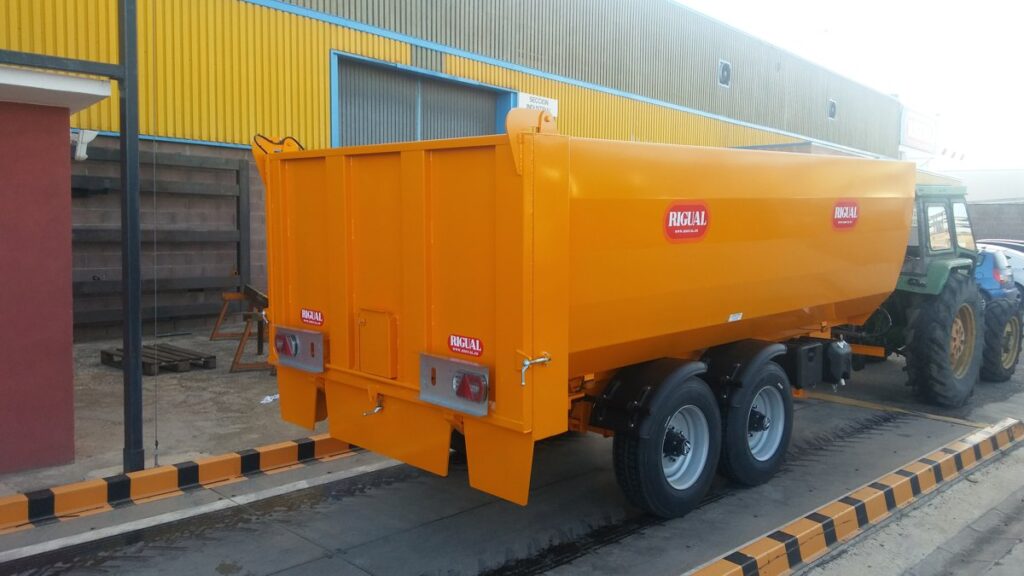

Bañera vina y aceituna Rigual tandem de 4_75 metros con rompeolas interior

Product
advantages

The folding system designed into the sides of the cockpit makes it more robust and less heavy, as no extra elements such as crossbeams or ribs are added.

Thanks to the wheel arch, we achieve an ideal loading height for loading, both by combine harvester and by hand.

Thanks to the totally airtight door, we do not lose any liquid during the harvesting process or during the transfer to the cellar.

Thanks to the integrated upper breakwater, we ensure that nothing is lost when the grapes are transferred due to the movement of the tub.

The double bottom has been designed to separate the stock from the grapes during the harvesting process.

Thanks to its reduced height, we have a greater angle of vision, facilitating manoeuvring both forwards and in reverse.
