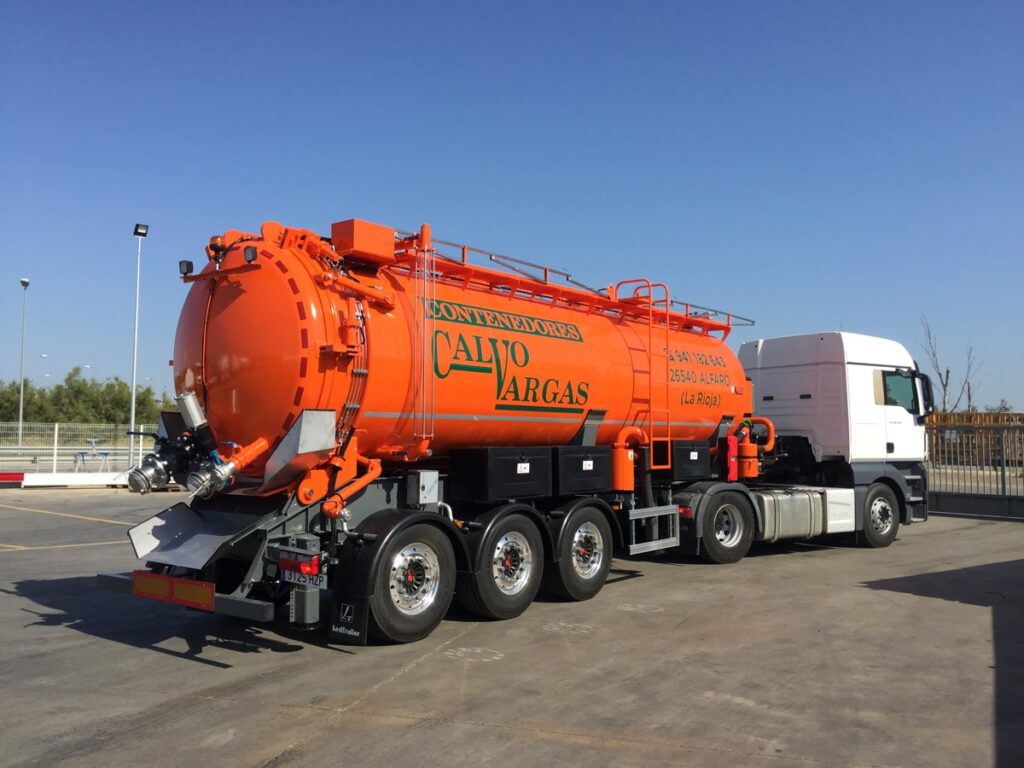

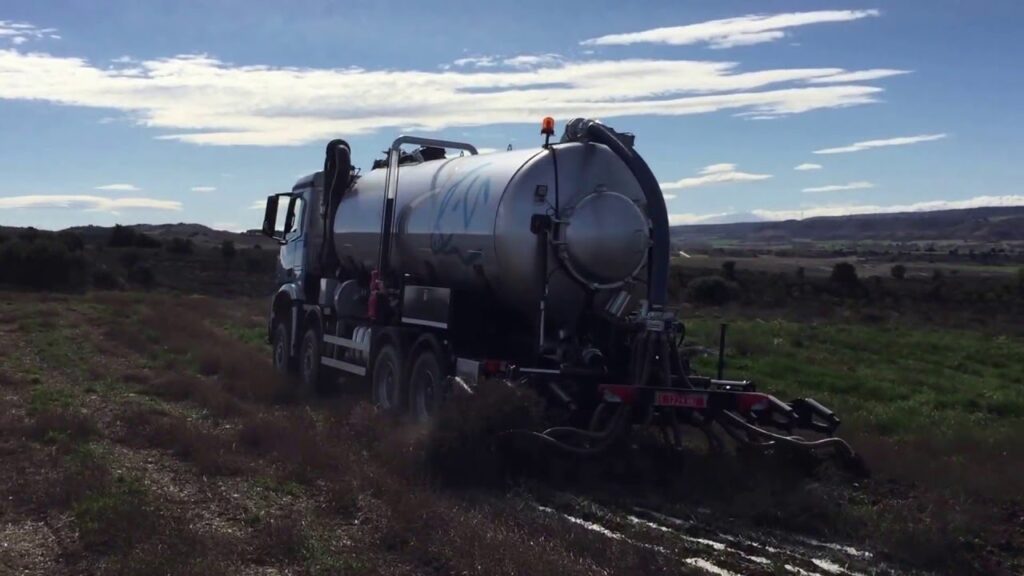

RIGUAL suction tanks are specially designed for the suction, transport and distribution of slurry, sludge, dirty water, etc.
Their standard configuration is single-compartment tanks, with one or more breakwaters depending on their capacity, with a vacuum pump to make it possible to load the product to be transported.
This equipment can be ADR certified for the transport of hazardous waste.
Our intelligent management technology (Rigual Smart) is the most advanced on the market and offers optimised and automatic electronic management of equipment operation, which has the following advantages: significant fuel savings, minimisation of mechanical wear of the equipment, greater ease of operation of the components, greater safety in the handling of the equipment and reduction of noise emissions.
Available models
and technical characteristics
- Made of carbon steel or stainless steel AISI 304 or 316.
- Capacities and compartmentalisation to be defined according to chassis tonnage and customer requirements.
- Manual opening rear door Ø 500/1000 mm diameter.

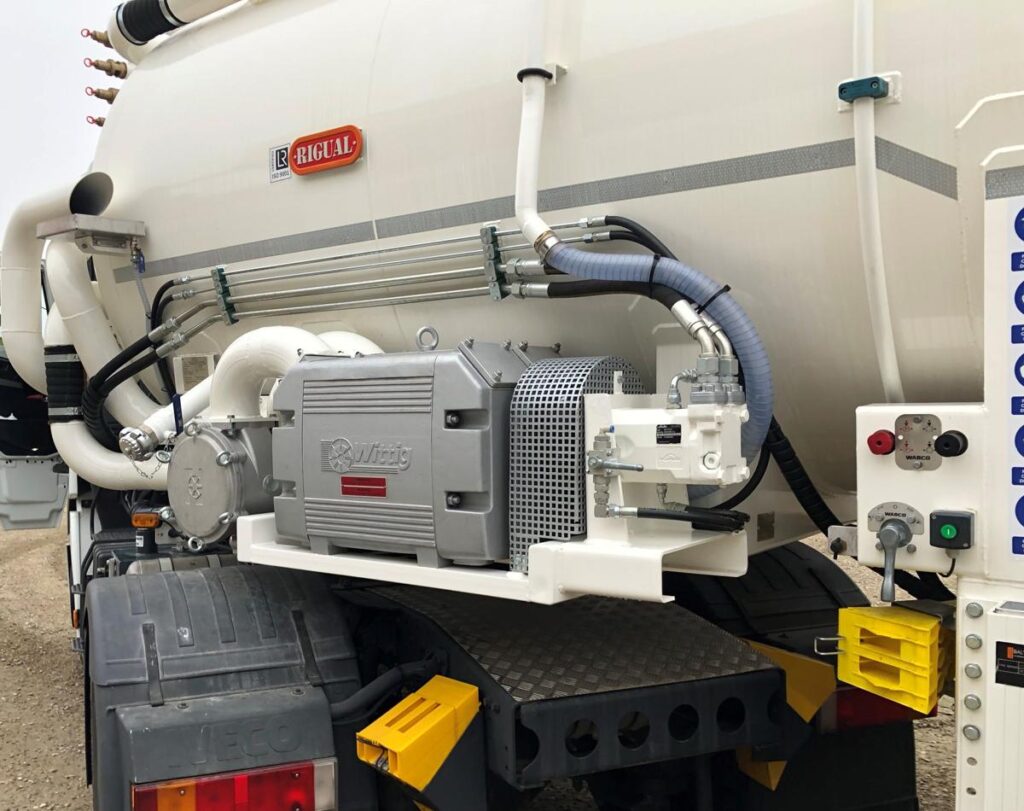

- Vane or lobe vacuum pump with flow rates from 850 to 1584 m3/h, with air or water cooling depending on the model or type of vacuum pump chosen.
- High penetration and high quality electrostatic painting.
- Own design of the tank and its main components.
- Hydraulic full-opening rear door.

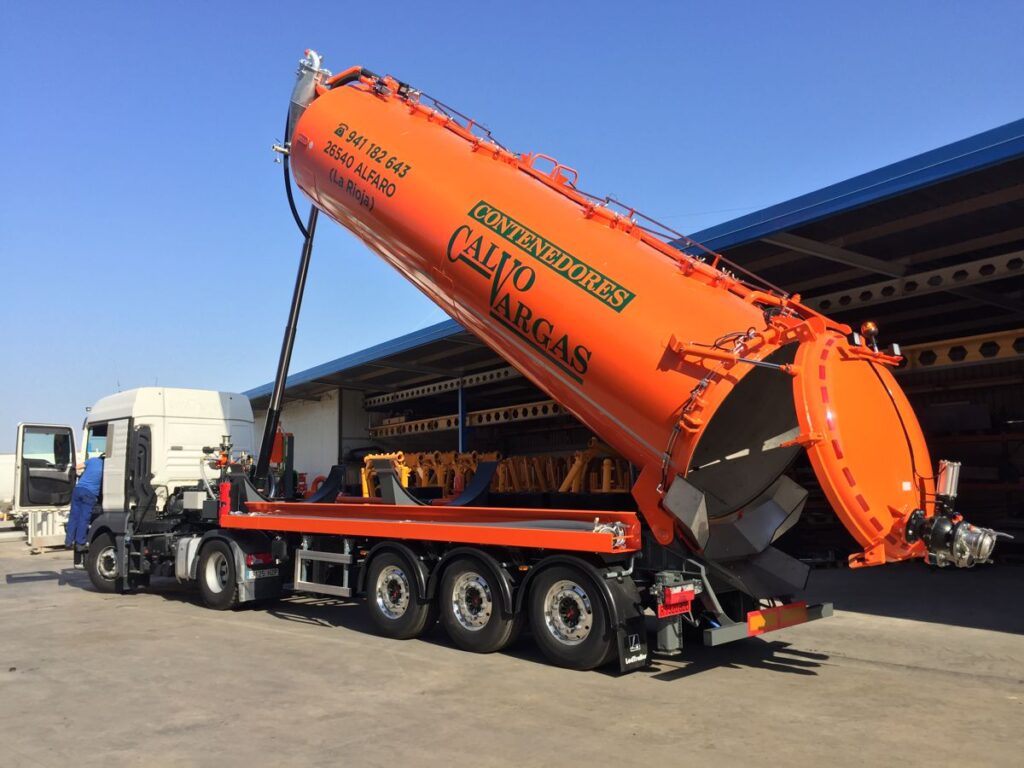

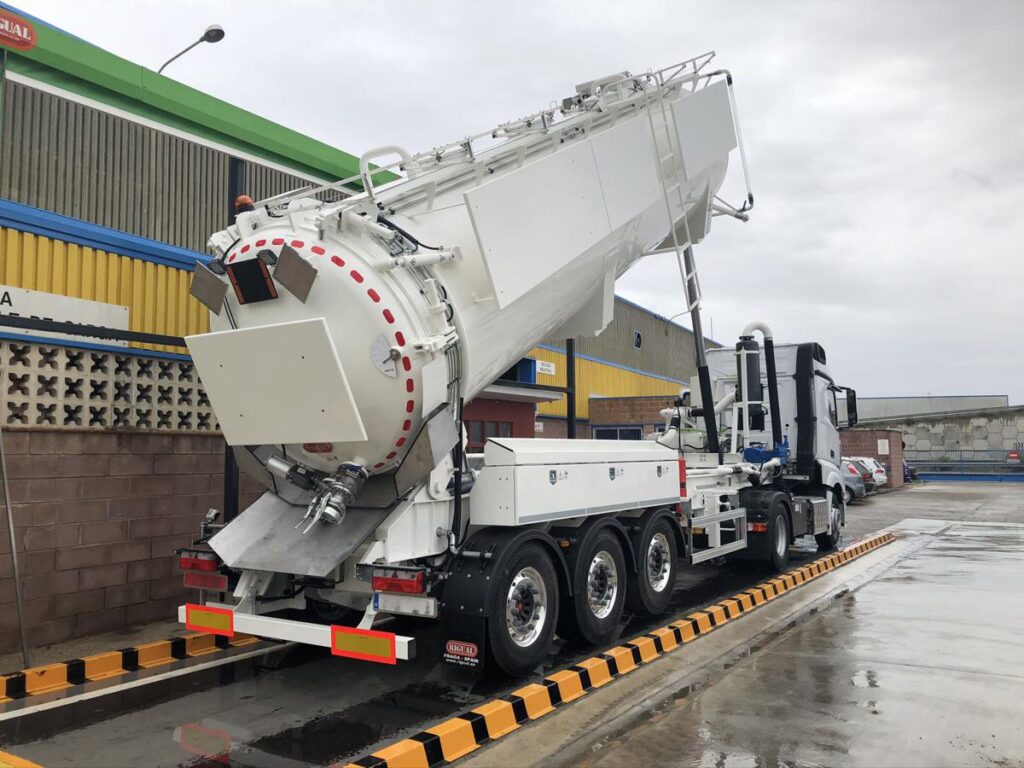

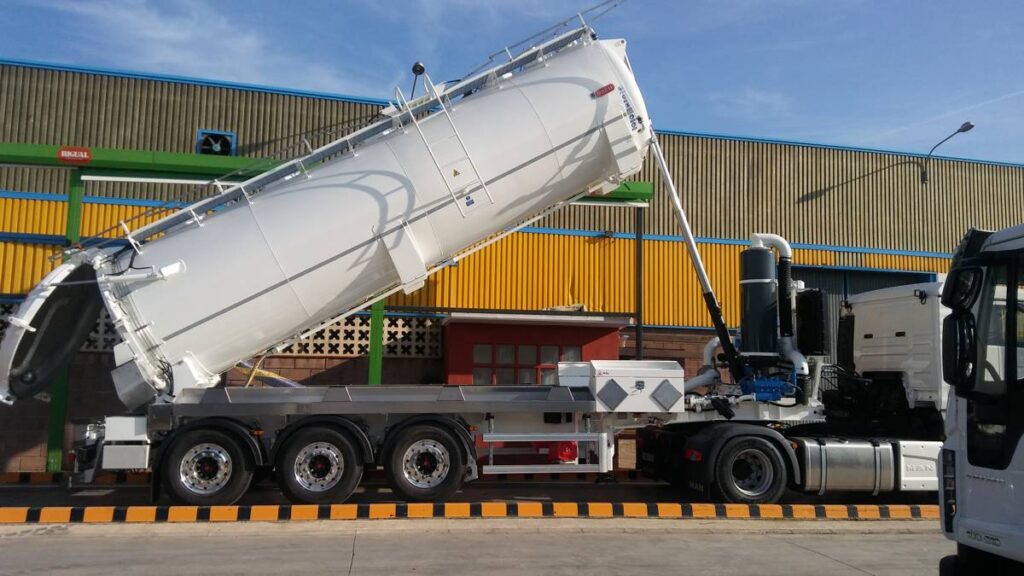

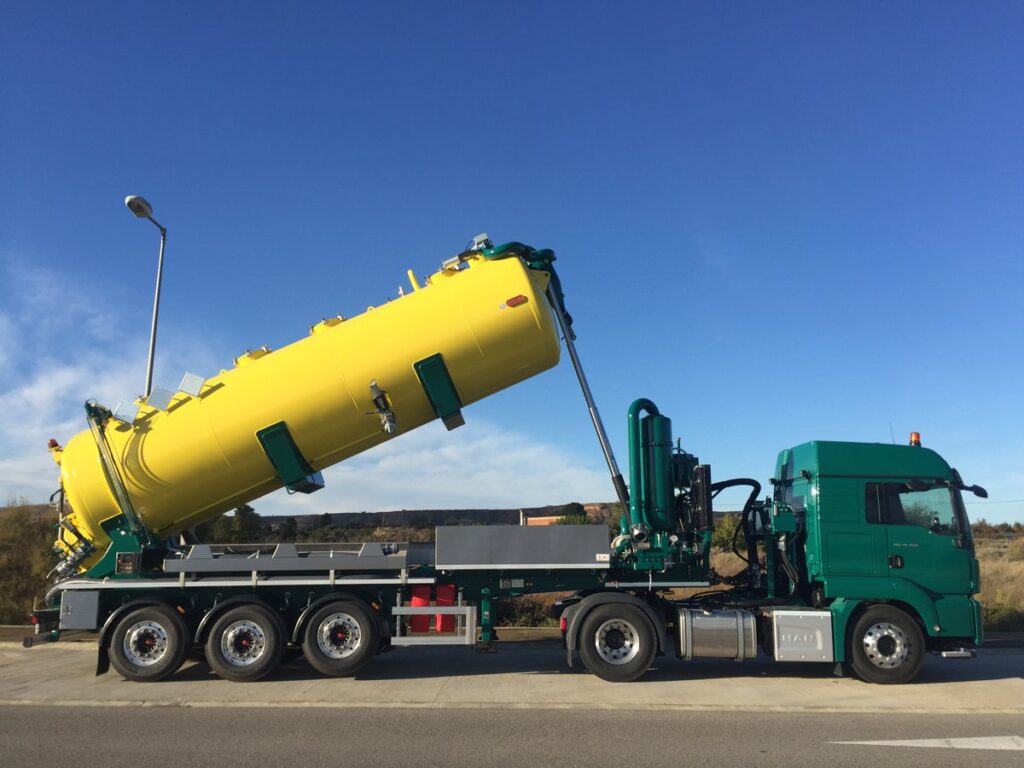

- Tipping tank.

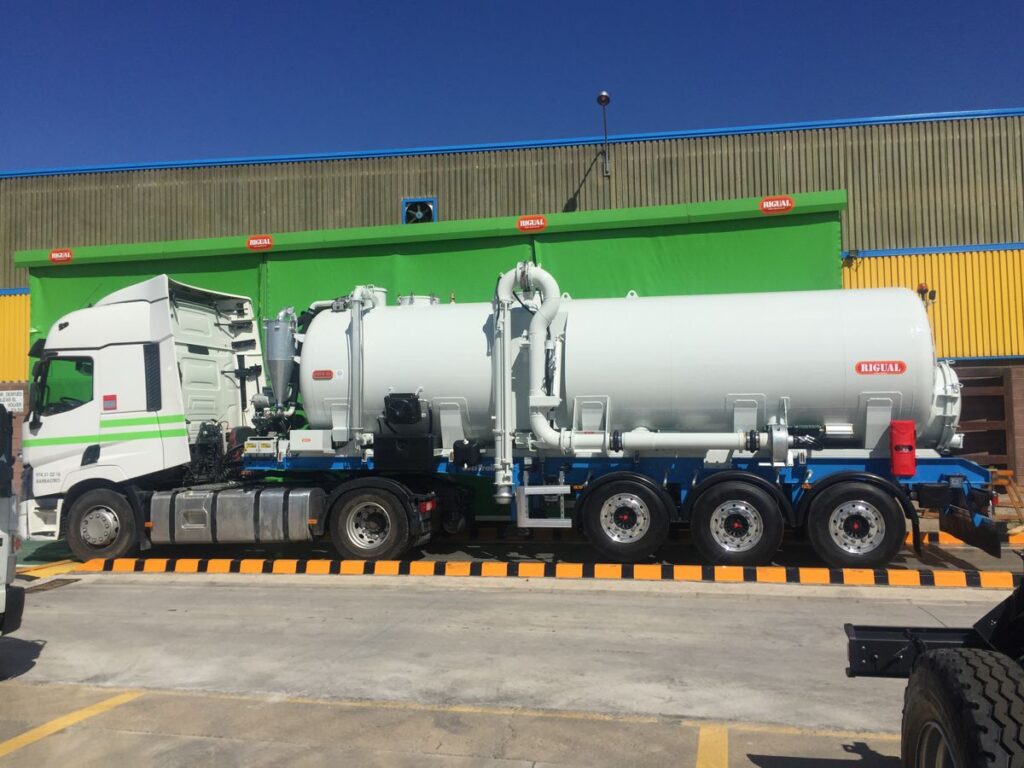

- Hydraulically operated loading arm with load accelerator.
- Suction tube.

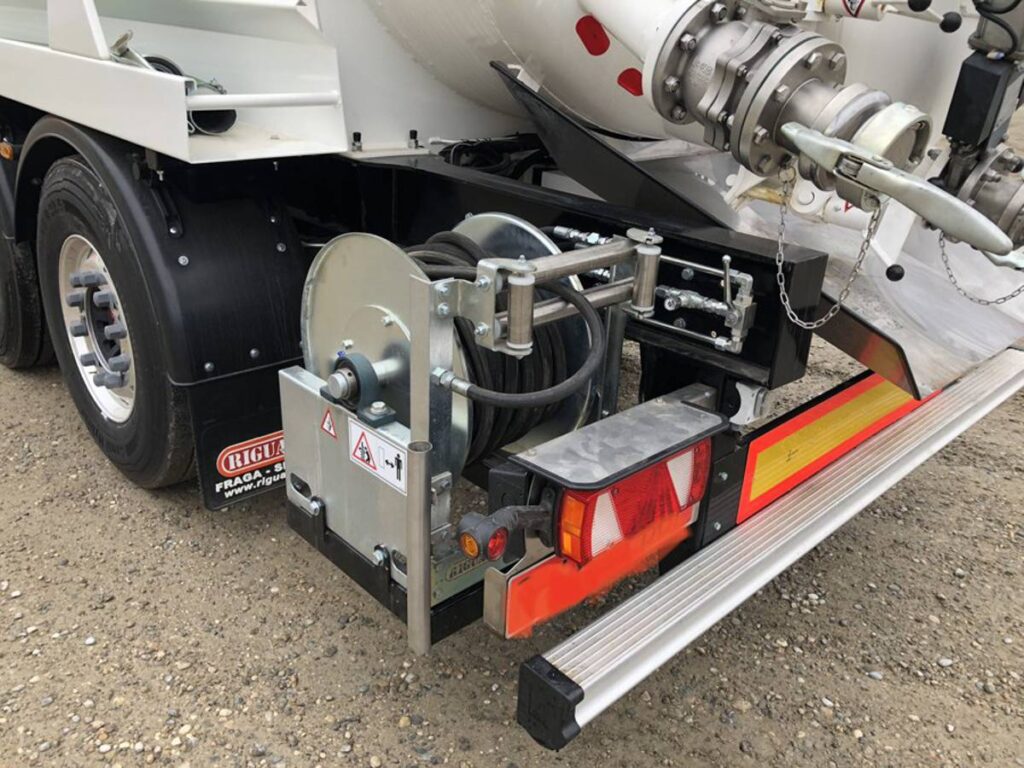

- Pressurised water cleaning pump of 30 L/min and 150 bar, with independent water tank and manual reel with 25 m. of hose with pressurised water lance.
- Product mixer.
- Remote control.
- ADR AT or FL certification depending on the type of waste to be transported.
- Rigual IoT platform for remote equipment management.
- Tanks: capacity from 10,000 to 22,000 litres depending on the MMA of the chassis chosen, single compartment and recommended breakwater every 7,000 litres.
- Tank materials: carbon steel or stainless steel (AISI 304 or 316).
- High pressure pumps: for finishing, pressure cleaning or high pressure cleaning from 180 - 1250 bar and 73 - 212 L/min.
- Depressors: vane, lobe or liquid ring with flow rates from 1080 to 3000 m3/h.
- Hydrostatic transmission driven by power take-off or auxiliary motor.

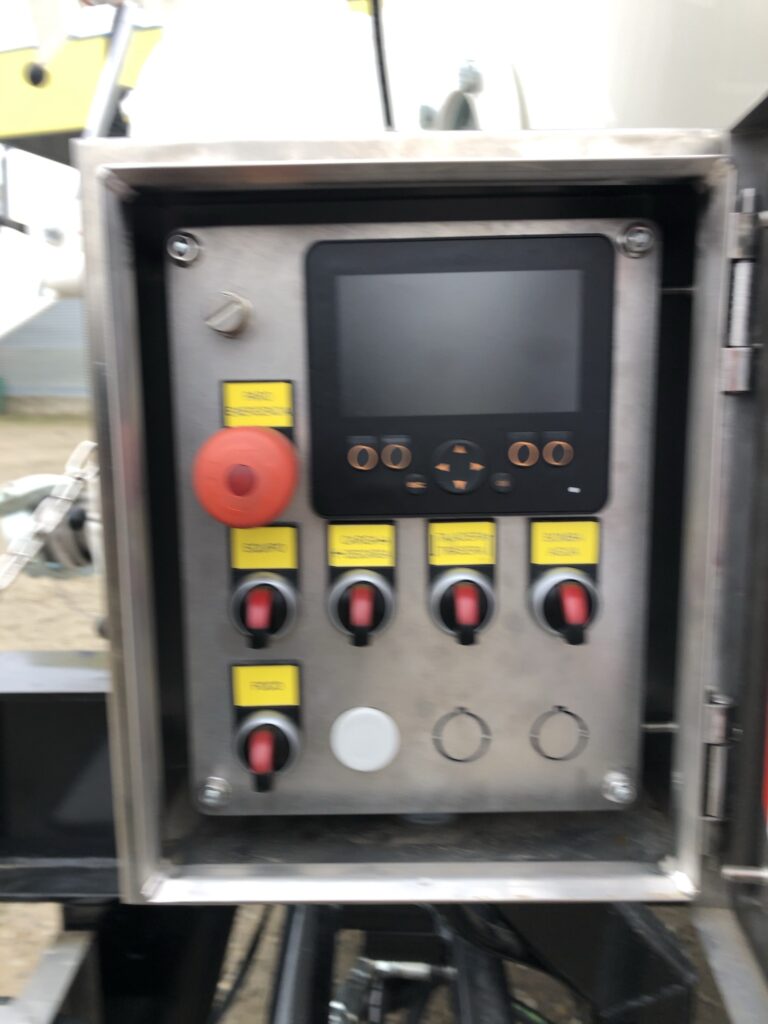

- Hydraulic system control: By PLC (Rigual Smart).
- ADR (Optional): AT or FL depends on the waste to be transported Standard.
- They are tailor-made, so their final configuration and auxiliary equipment (loading arms, cassette, cleaning reels, etc.) is decided according to the needs and operation of our customers.

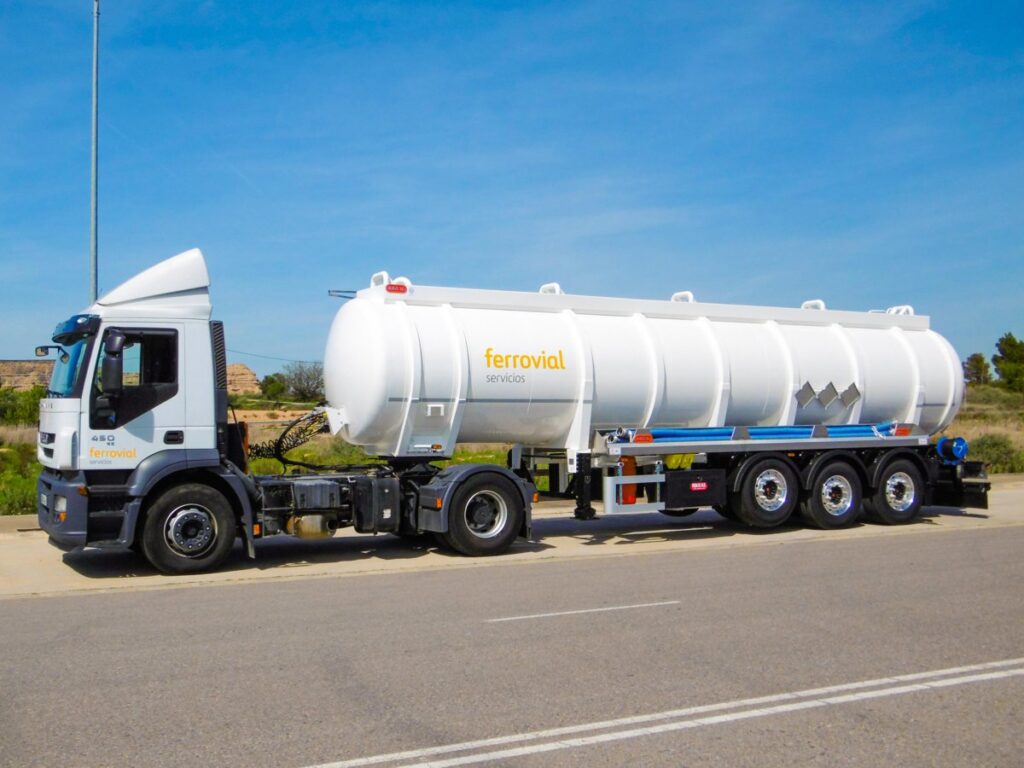

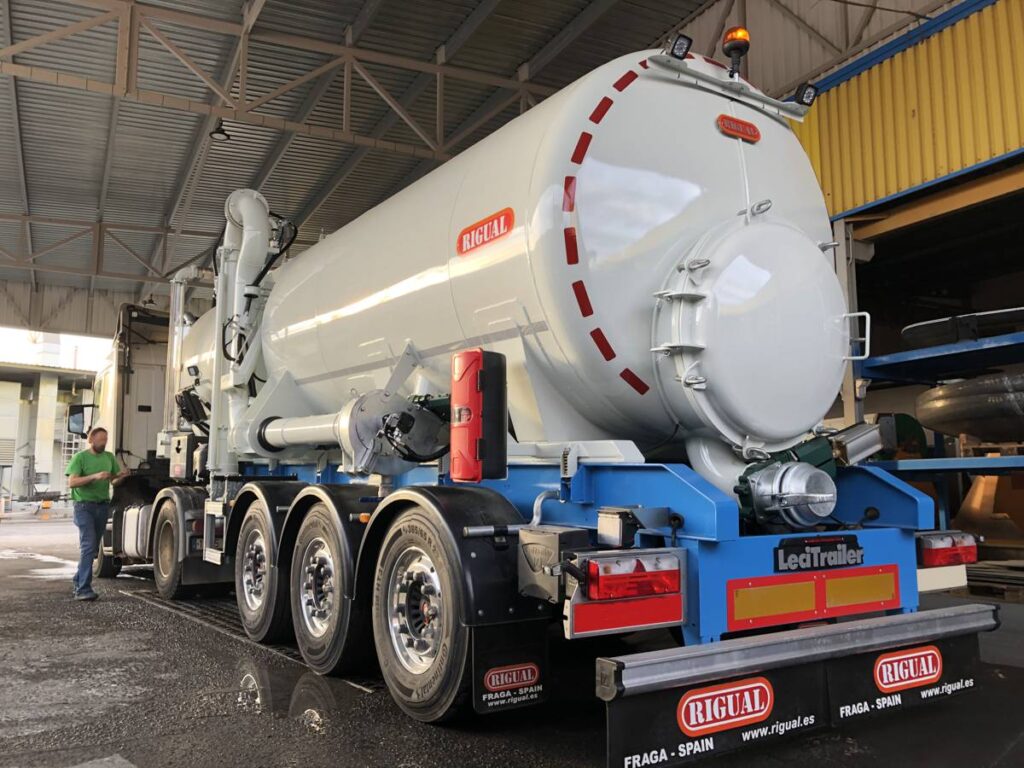

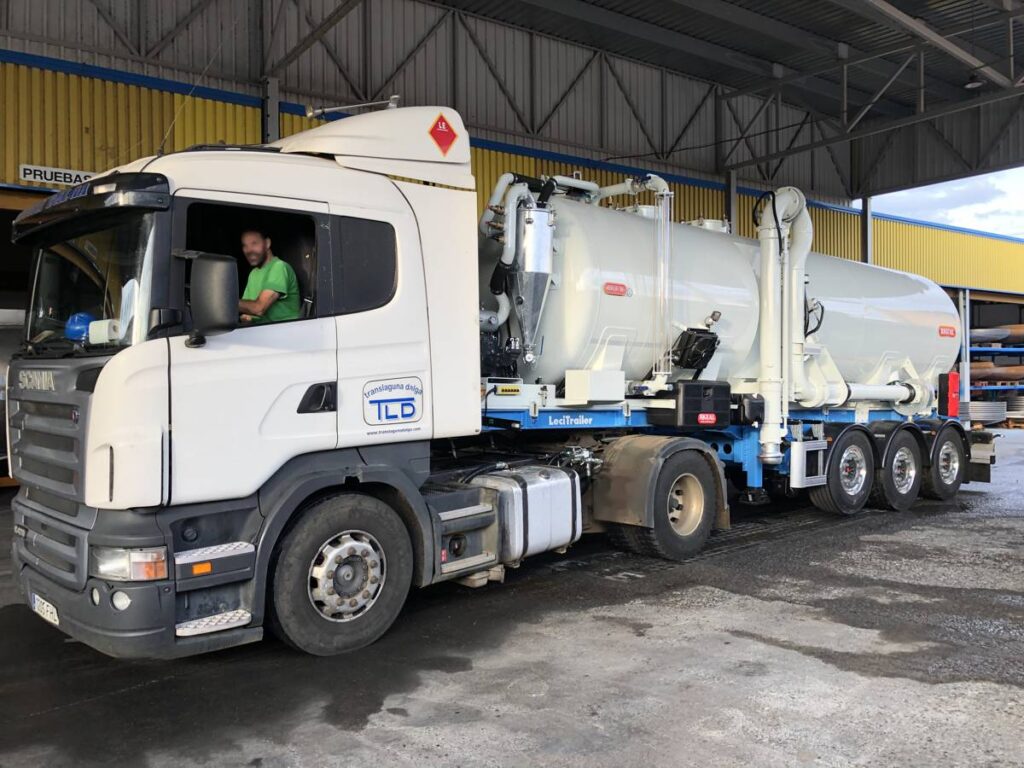

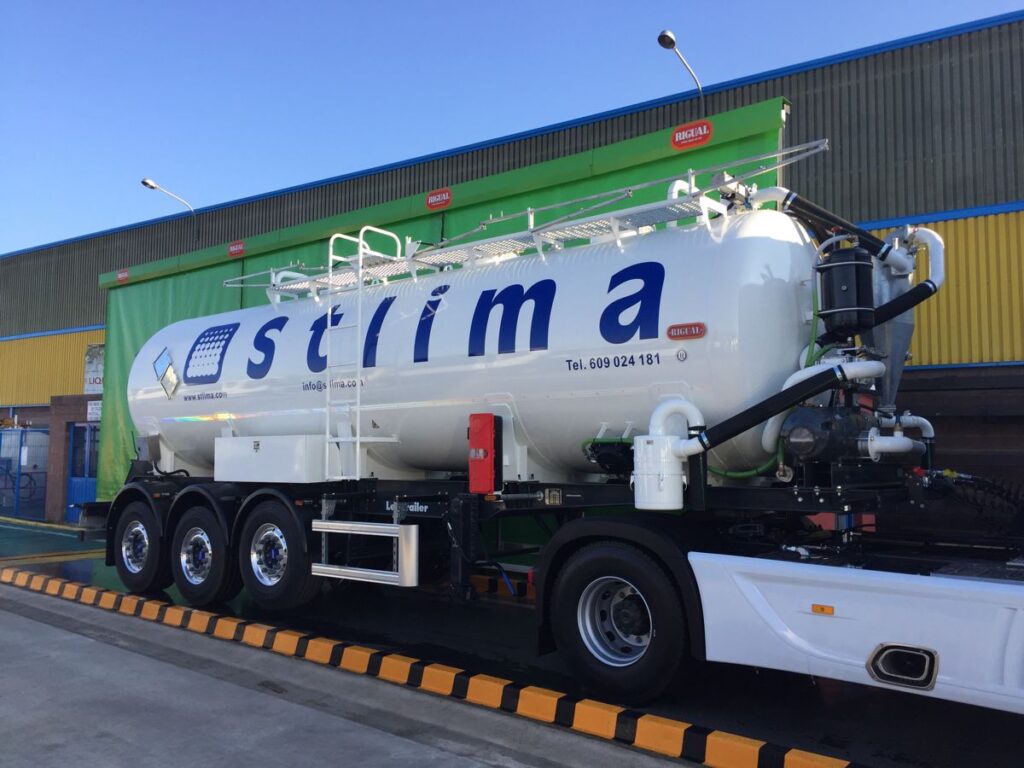

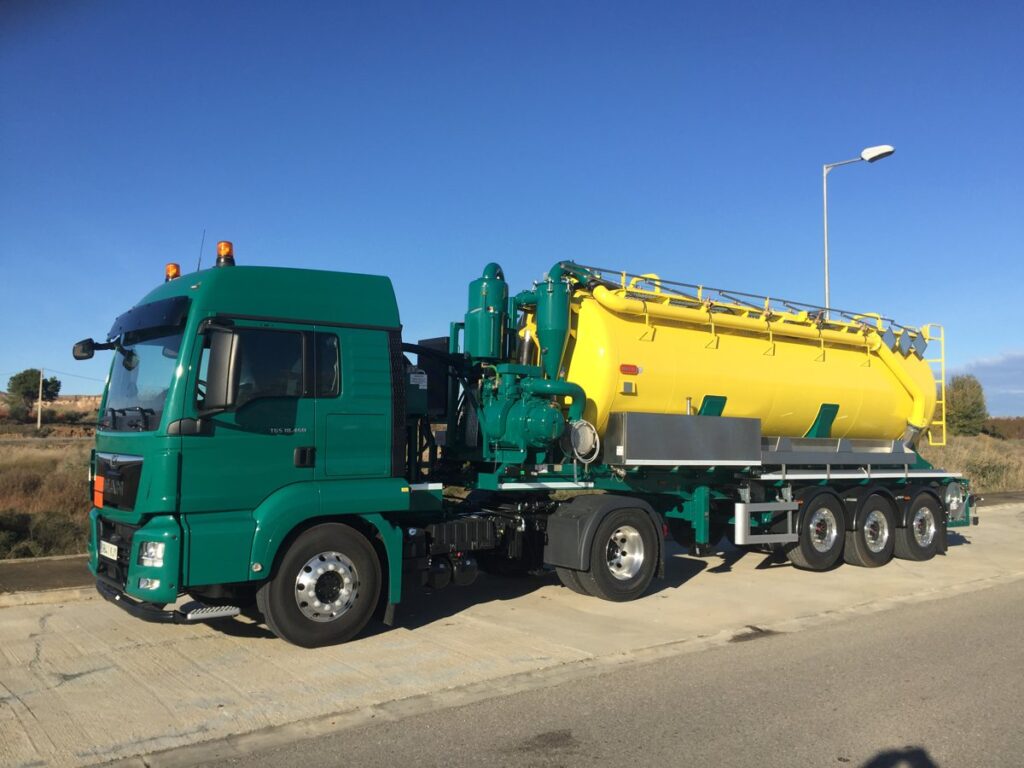

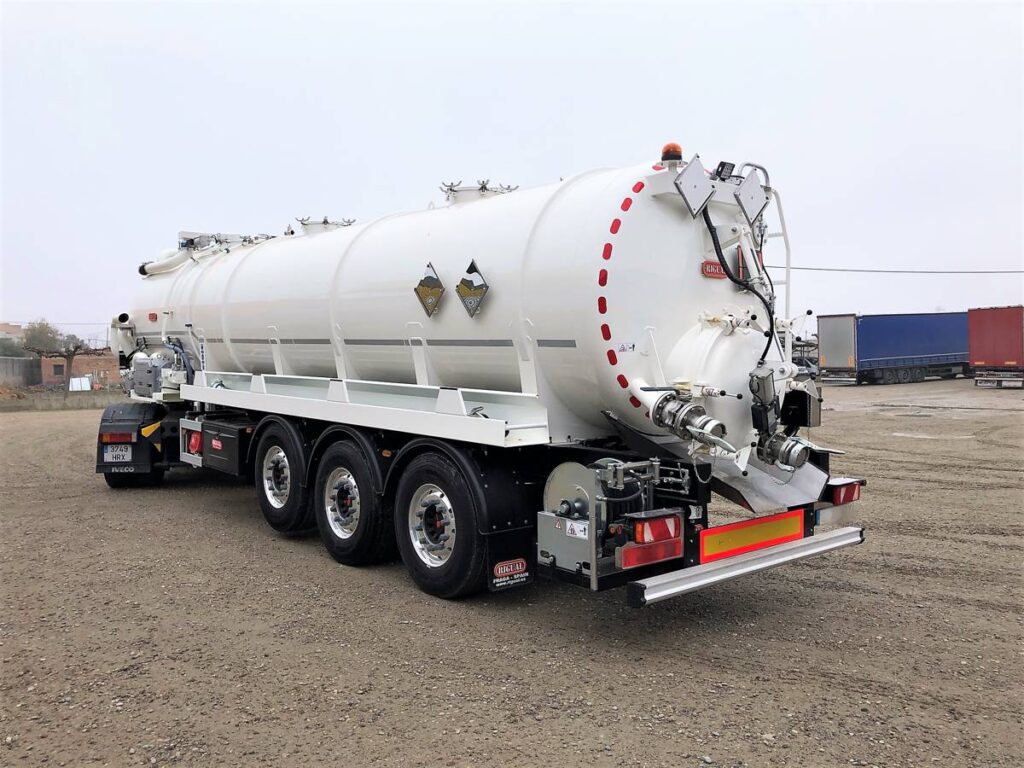

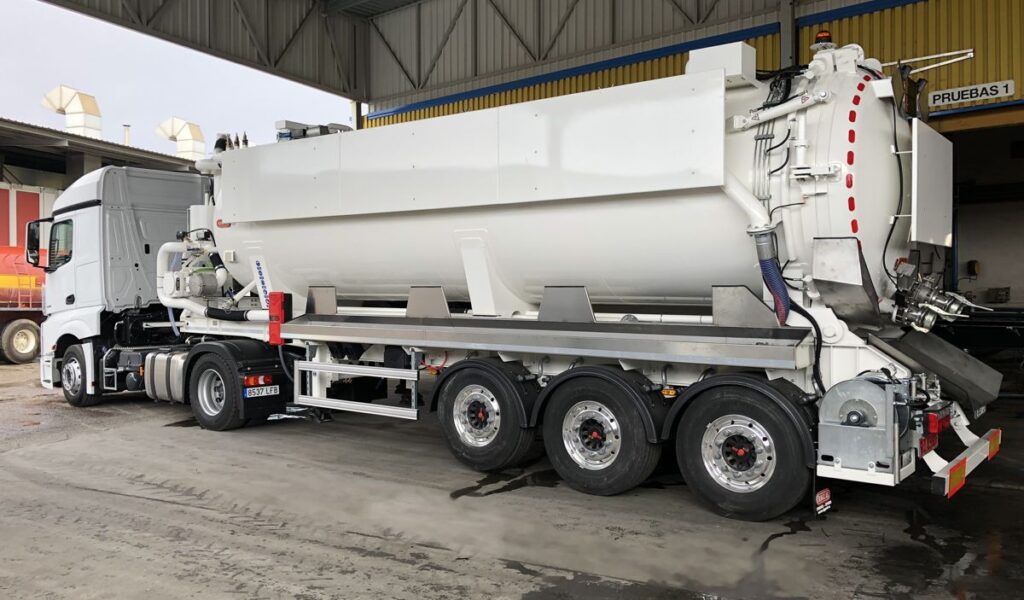

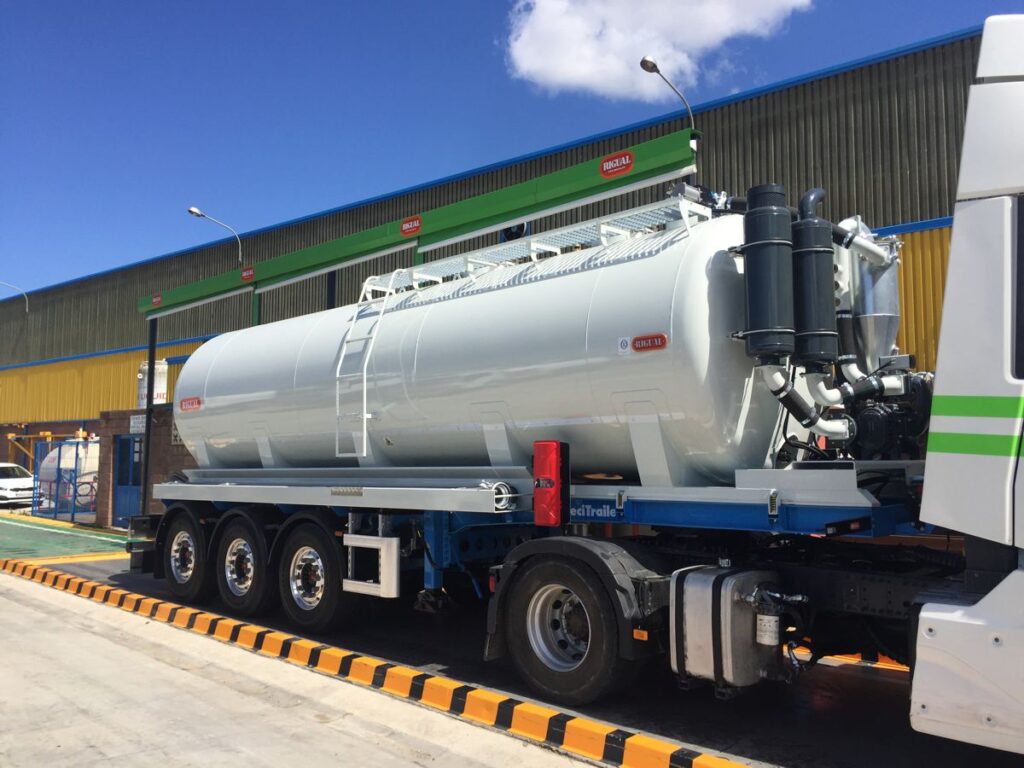

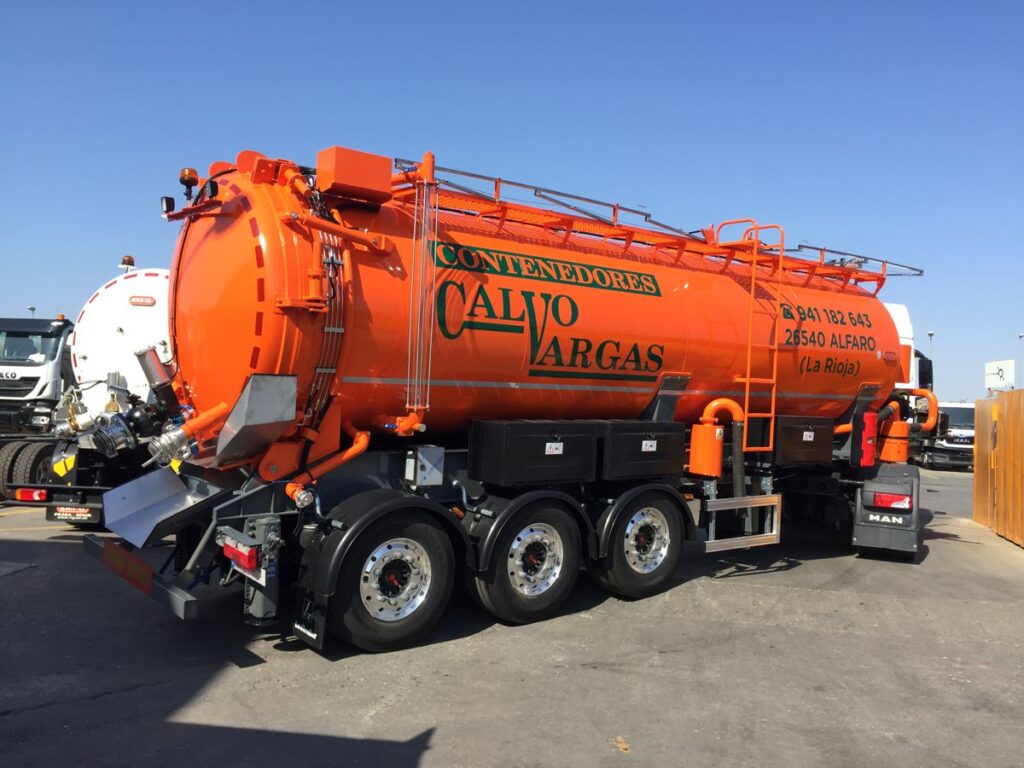

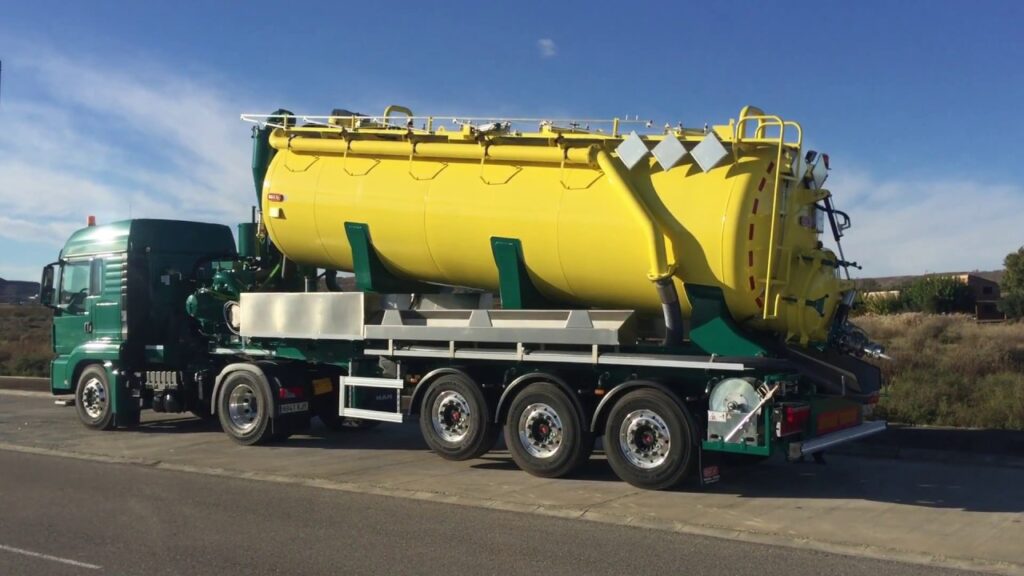

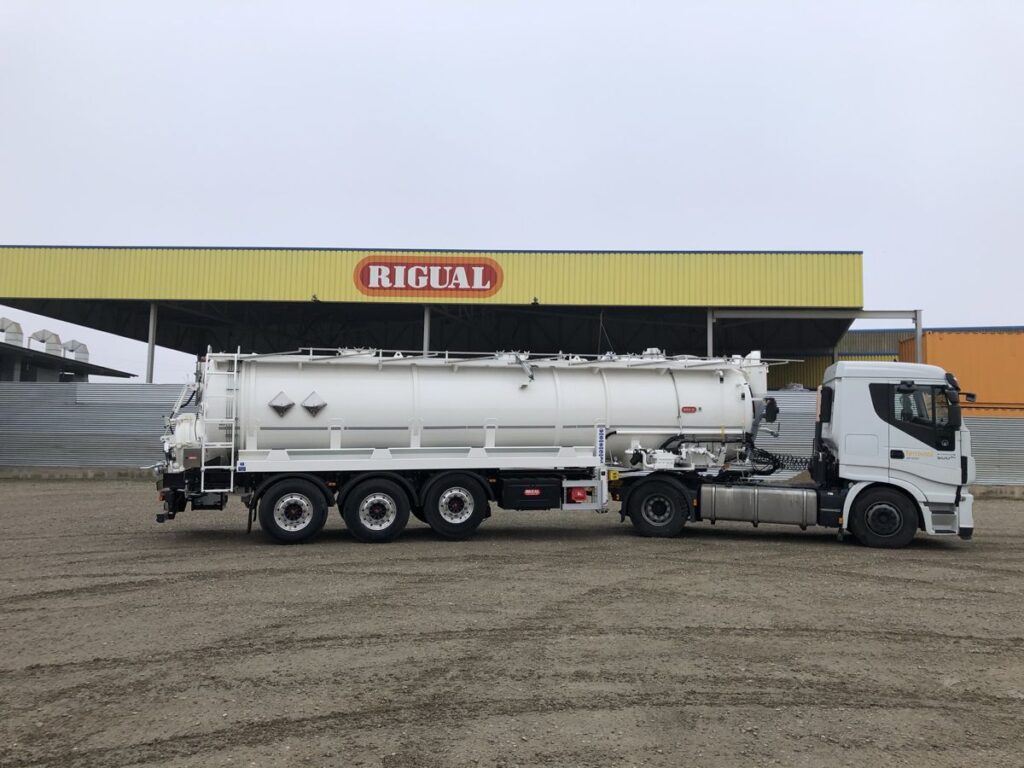

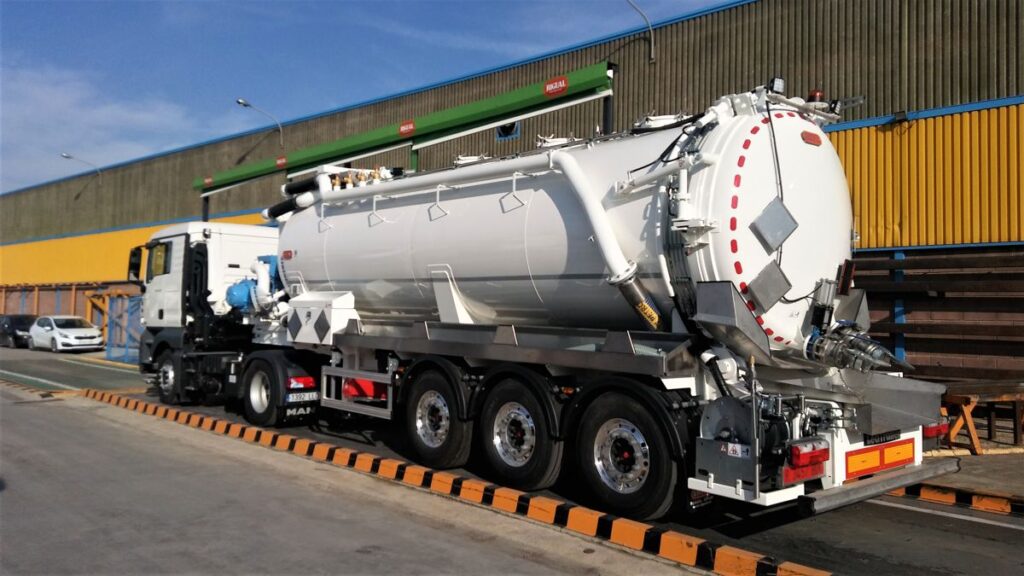

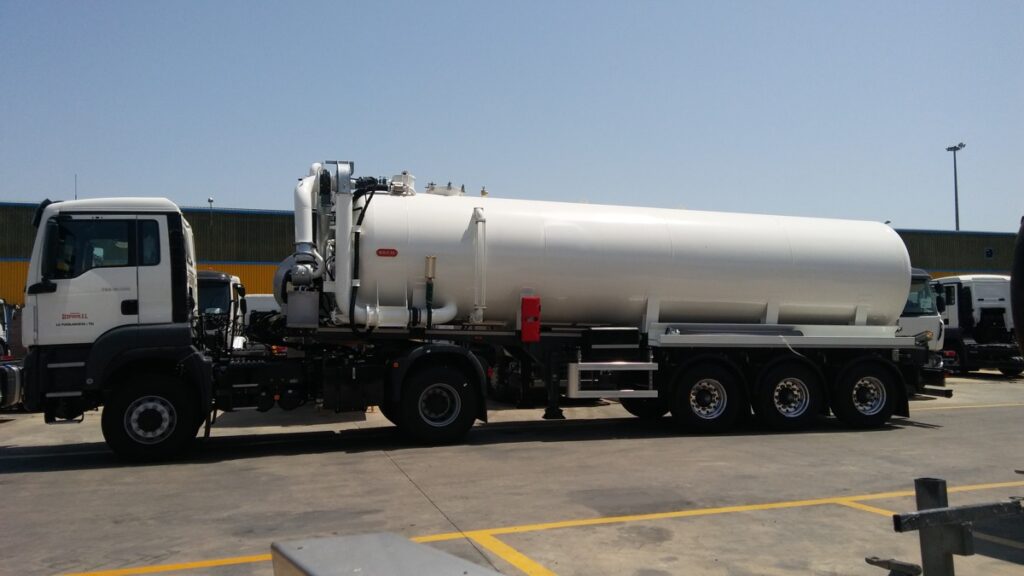

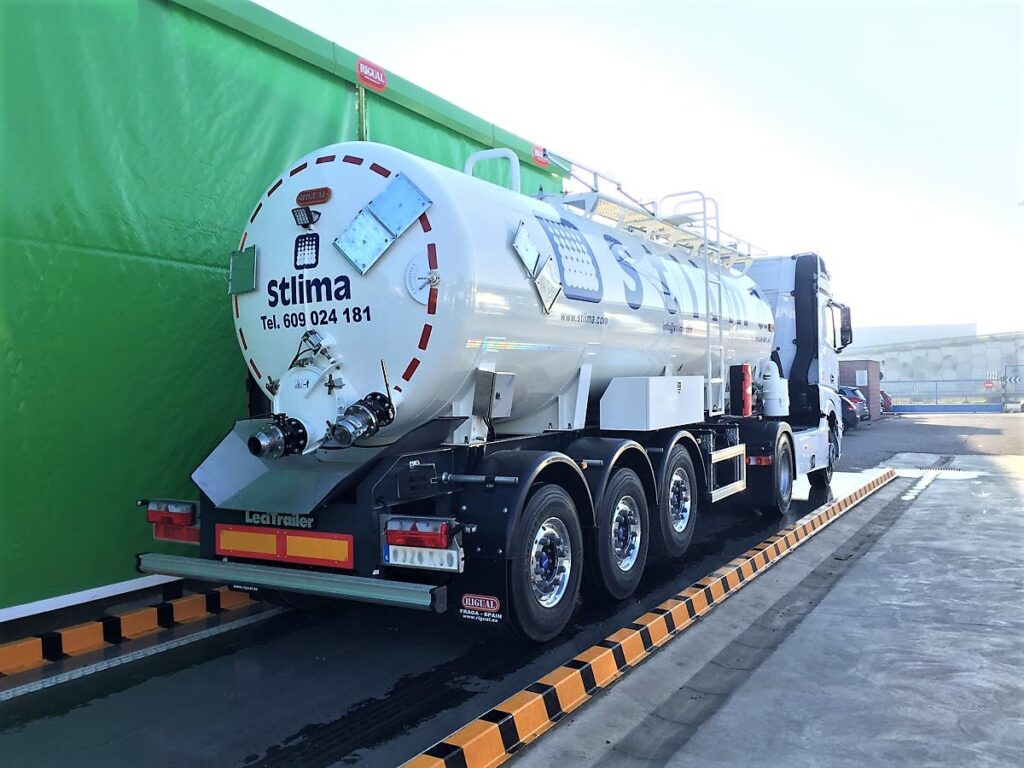

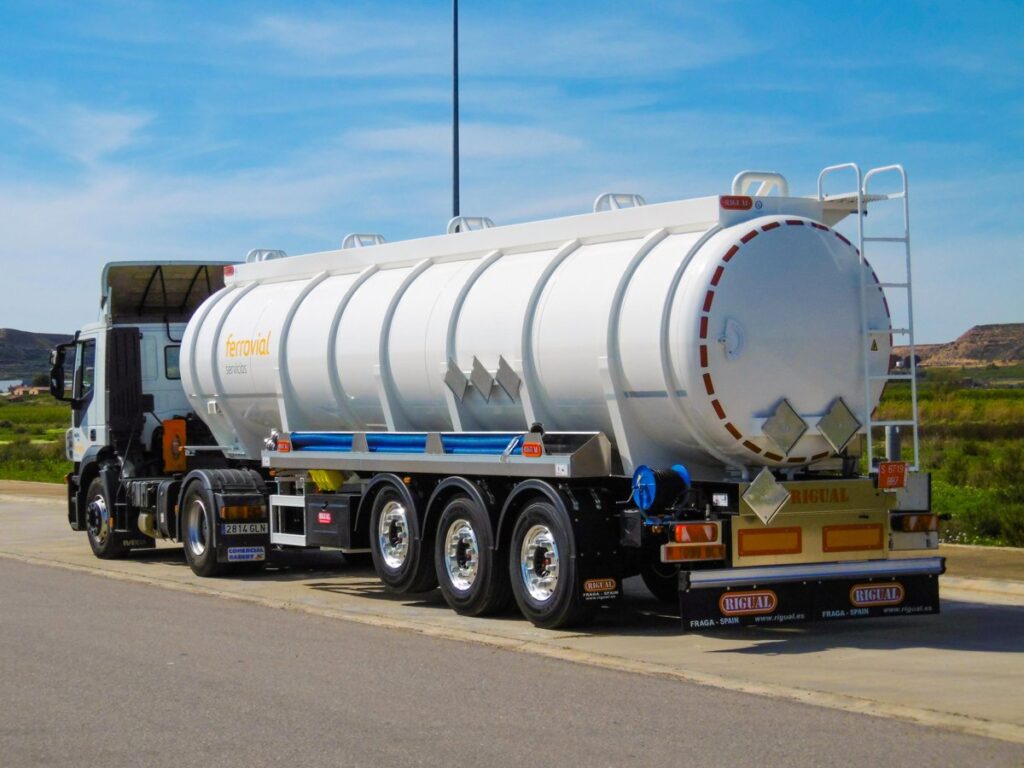

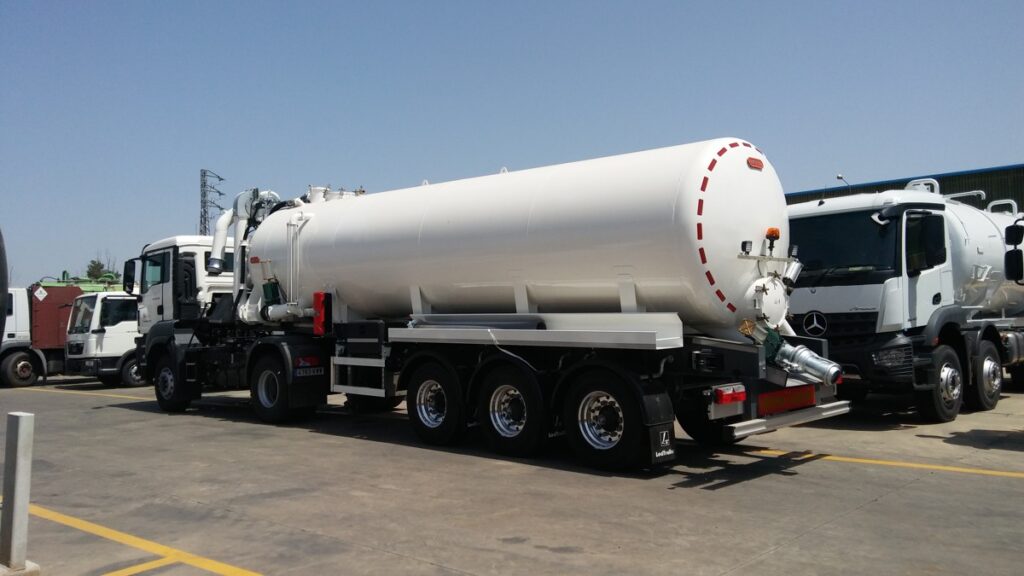

- Tanks: self-supporting or semi-trailers with a capacity of 15,000 to 26,000 litres.
- Tank materials: carbon steel or stainless steel (AISI 304 or 316).
- High pressure pumps: for finishing, pressure cleaning or high pressure cleaning from 180 - 1250 bar and 73 - 212 L/min.
- Depressors: vane, lobe or liquid ring with flow rates from 1080 to 3000 m3/h.
- Hydrostatic transmission driven by power take-off or auxiliary motor.
- Hydraulic system control: By PLC (Rigual Smart).
- ADR (Optional): AT or FL depends on the waste to be transported Standard.
- Our semi-trailer or self-supporting bodies, designed for industrial cleaning or sewer cleaning, allow the assembly of various equipment with different characteristics and high performance, taking advantage of the mechanical advantages offered by today's tractor vehicles.
- The incorporation of an autonomous auxiliary engine on the semi-trailer or self-supporting trailer becomes optional, resulting in a significant reduction in dimensions, tare weight and an increase in manoeuvrability, versatility and load capacity.
