Rigual supplies a wide range of slurry tanks, with the latest developments in design, manufacturing, sustainability, and digital transformation. Easy to manoeuvre thanks to the position of the axles towards the rear of the tank. Greater stability and better handling thanks to the load applied on the tractor hitch and the large surface provided by the Bogie and Tridem model. High quality robotic tank welding. Own manufacture of many of the main components with high-tech machinery. As an option, we supply an innovative PLC equipment control system, developed especially by RIGUAL SA, which automatically and immediately adjusts the equipment to the working conditions. This makes the machine easier to use, increases operator safety and reduces wear on the machine mechanical elements.
Available models
and technical characteristics
- Built in: en mild, galvanized or stainless steel
- Suction loading with a vacuum pump.
- Excellent for loading pig slurry, water, and liquid refuse.
Hydraulic gate valves Ø125 and Ø150. - Hoses: 5 mt suction hose

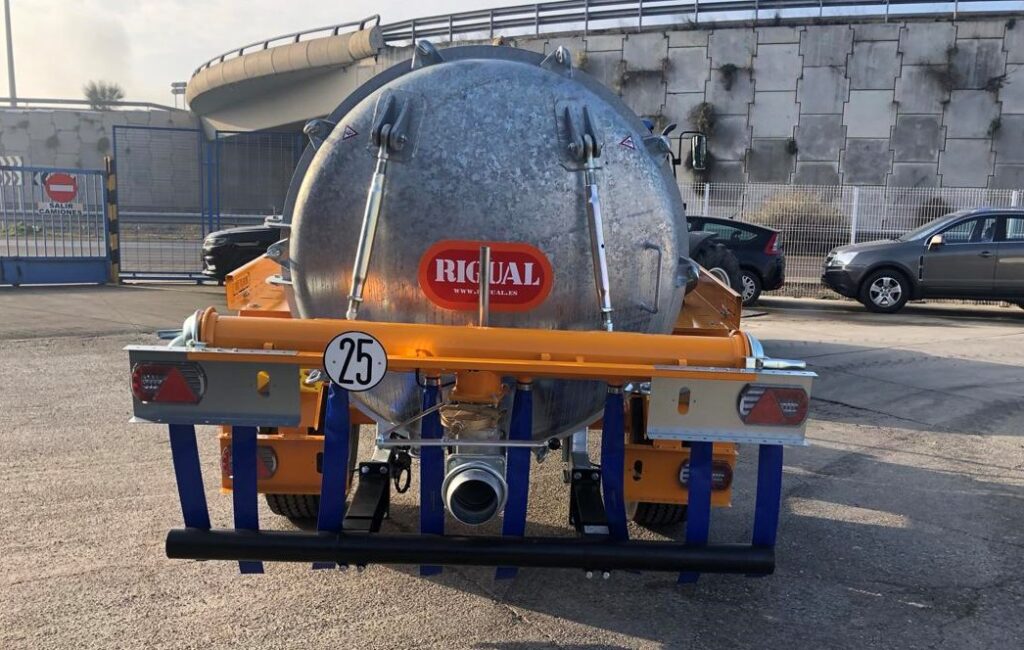

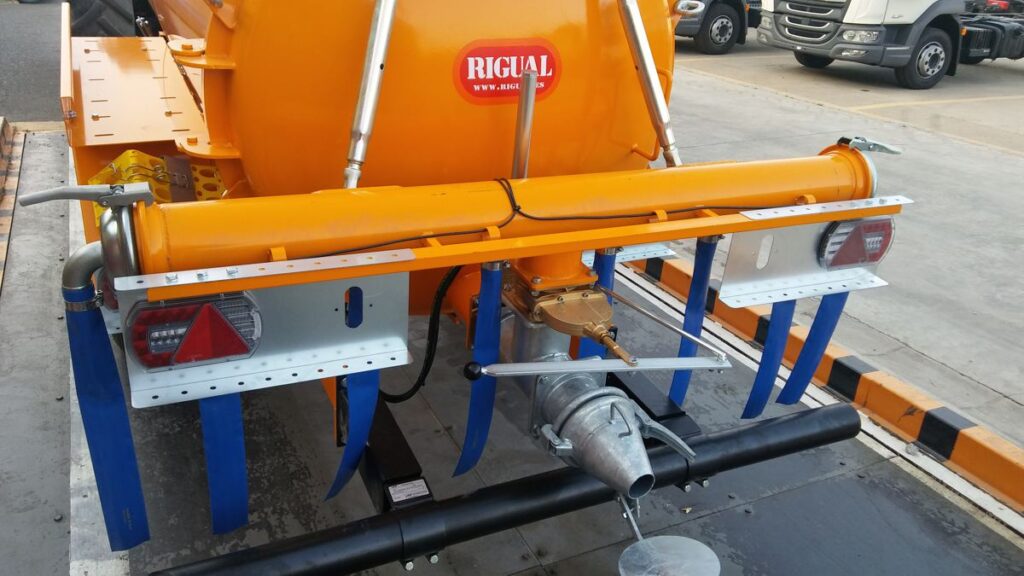

- Rear spreader
- Level indicator.
- Pressure-Vacuum gauge.
- Pressure-Vacuum safety valves. Settings according to EC Regulations.
- Elecrostatic paint - oven dried / Galvanized / Stainless
- Lighting according to EU regulations.
- CE Marking.

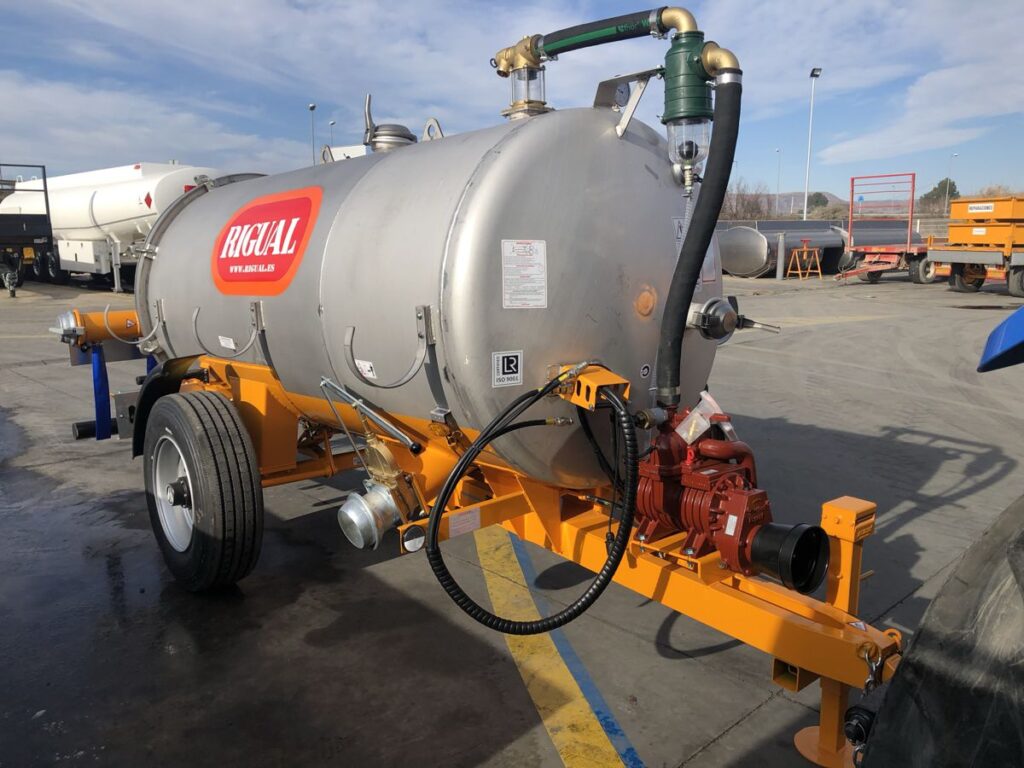

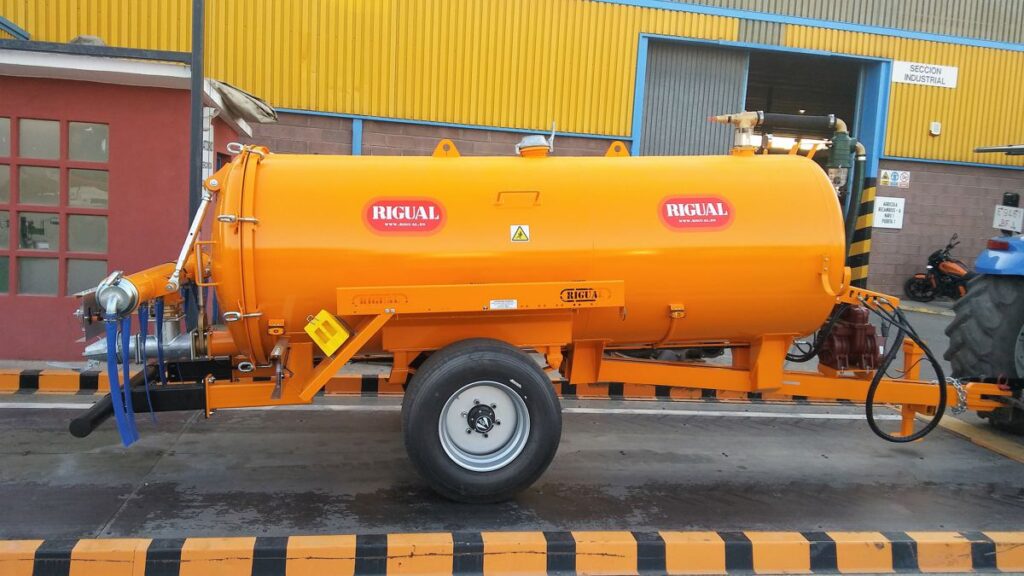

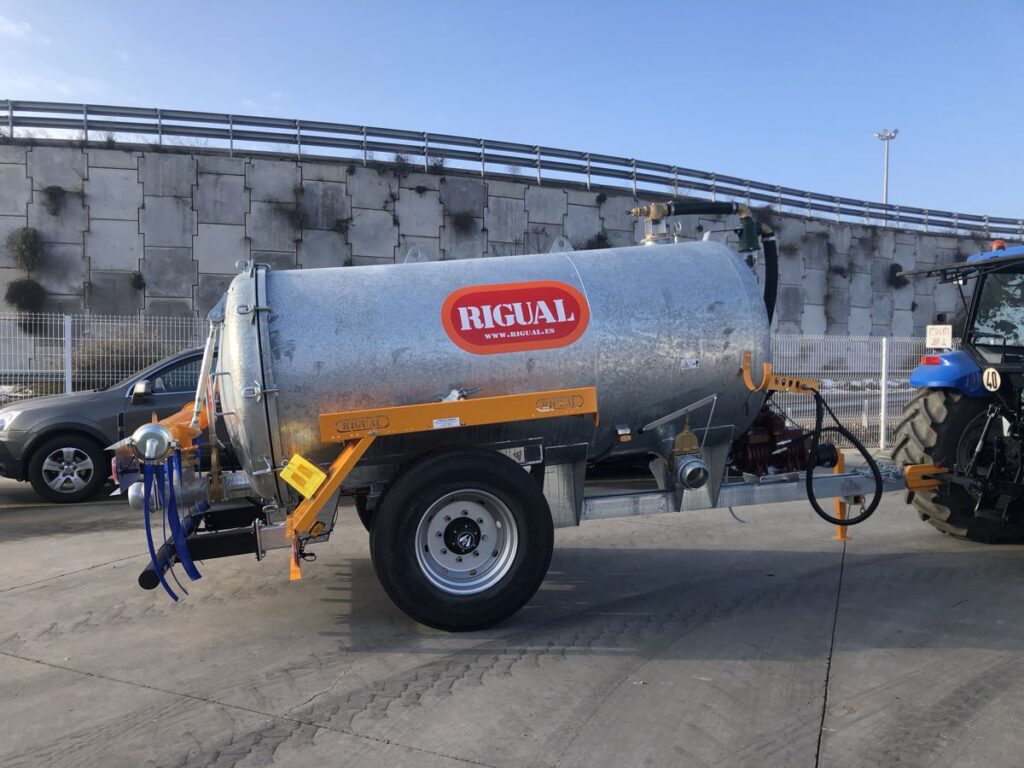

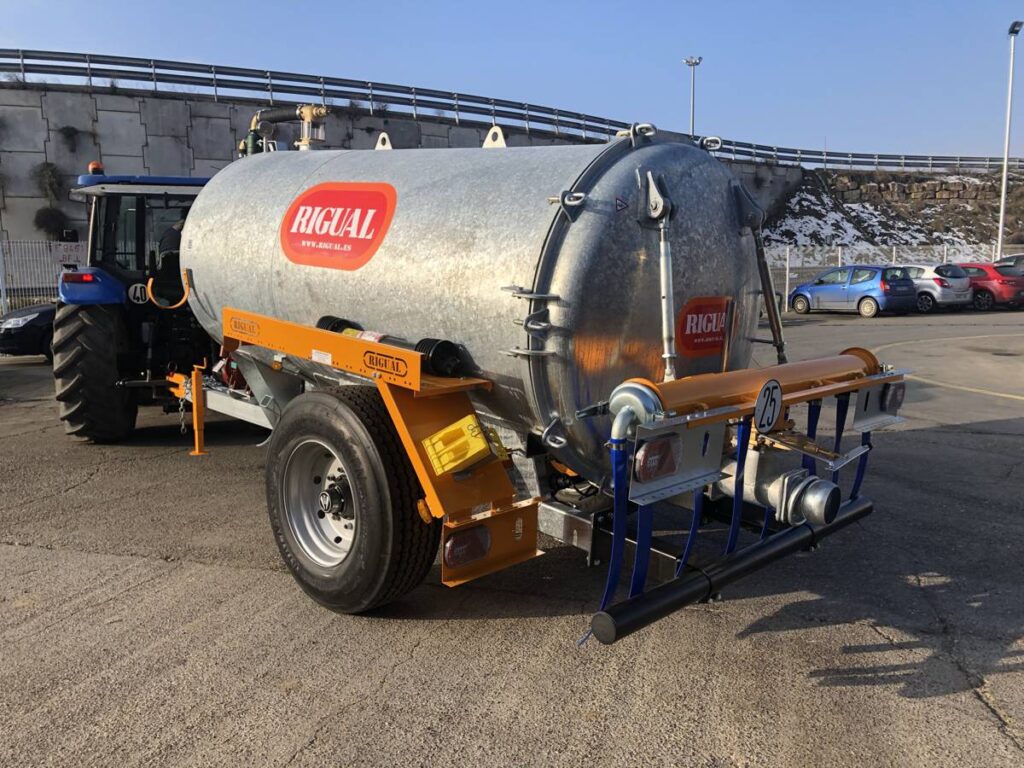

- From 3.000 L to 10.000 L.
- From 3000L to 8.000L full section rear door with manual screw locks.
- From 10.000 lts rear door D 1.000mm.
- All models have a subframe.
- Leaf spring suspension from 6.000 L.
- Internal baffles from 7.000 L (EC compliant).
- Certified couplings: ring, ball and other special types.
- Fixed drawbar
- Axle with hydraulic brake.

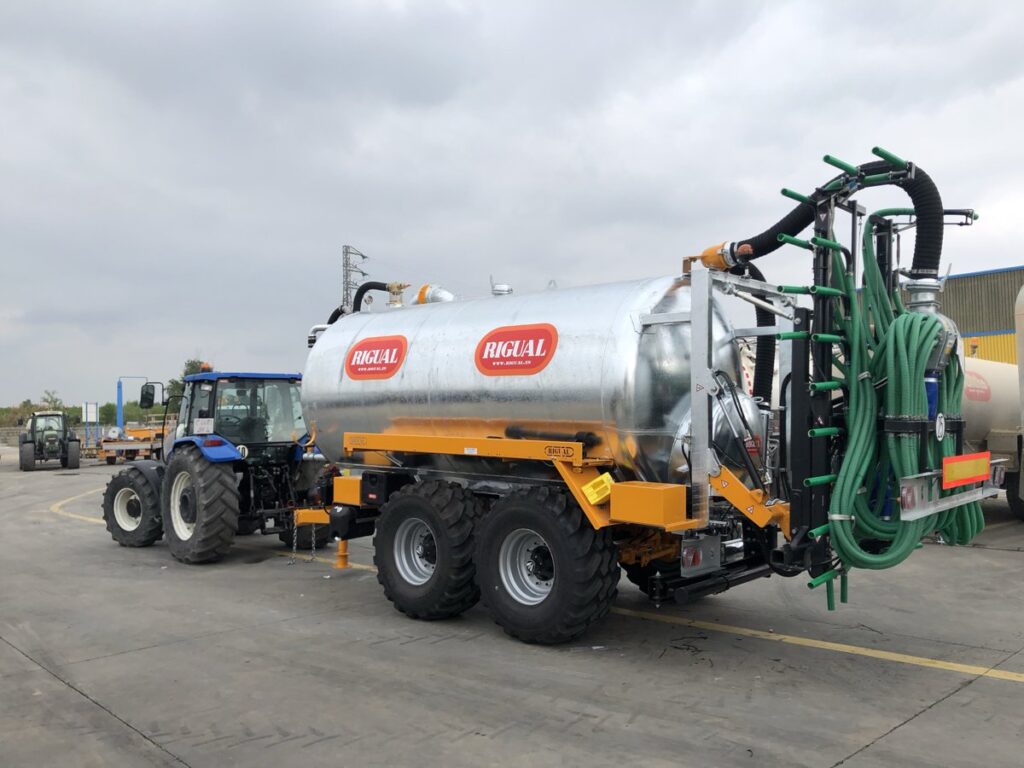

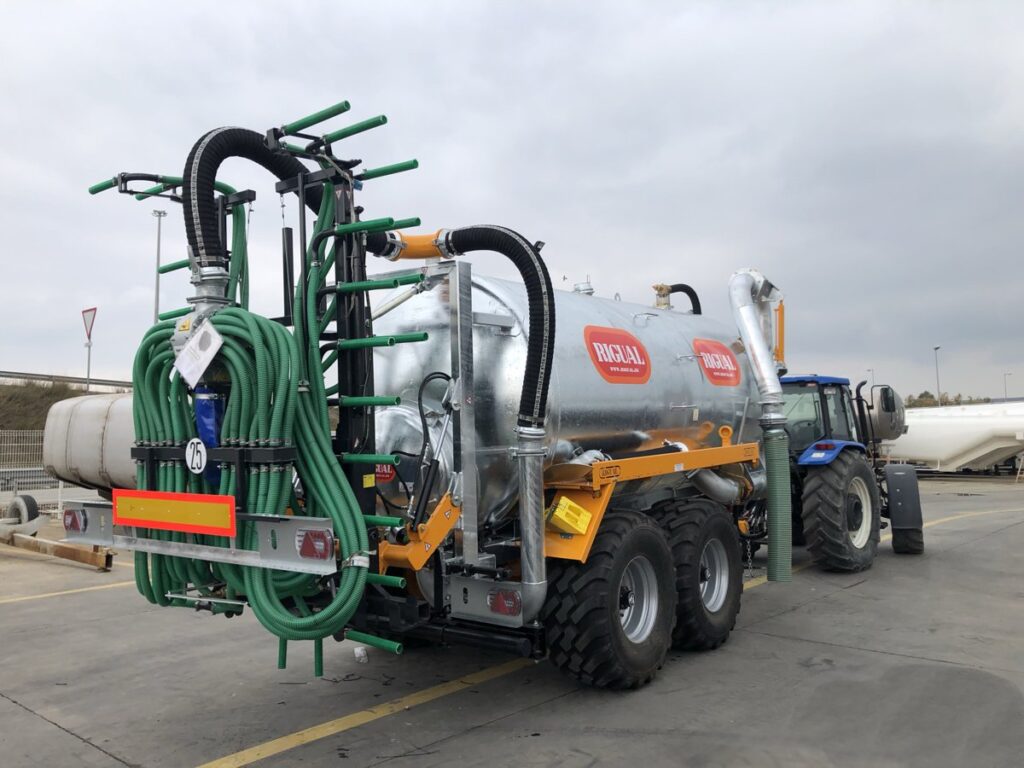

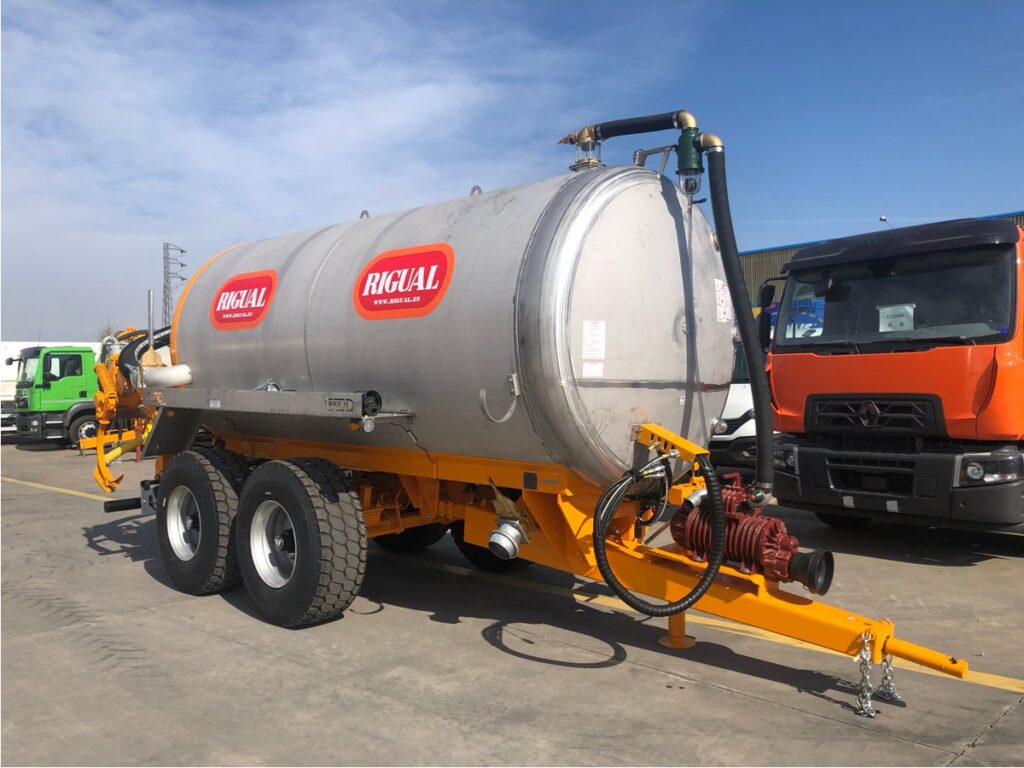

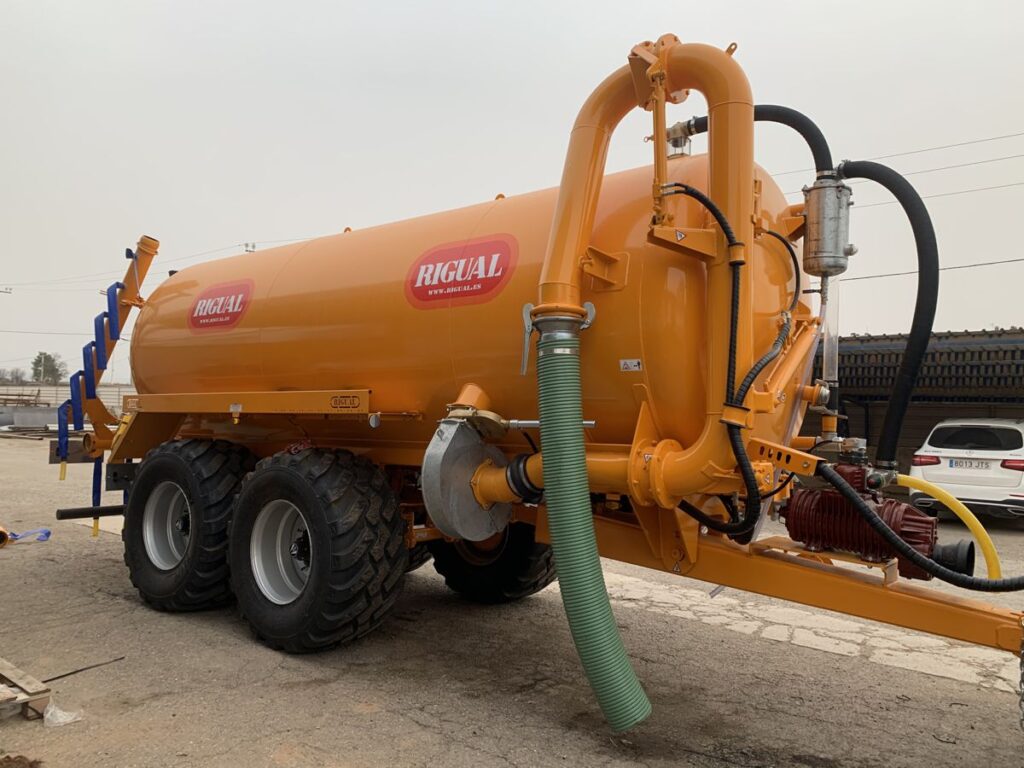

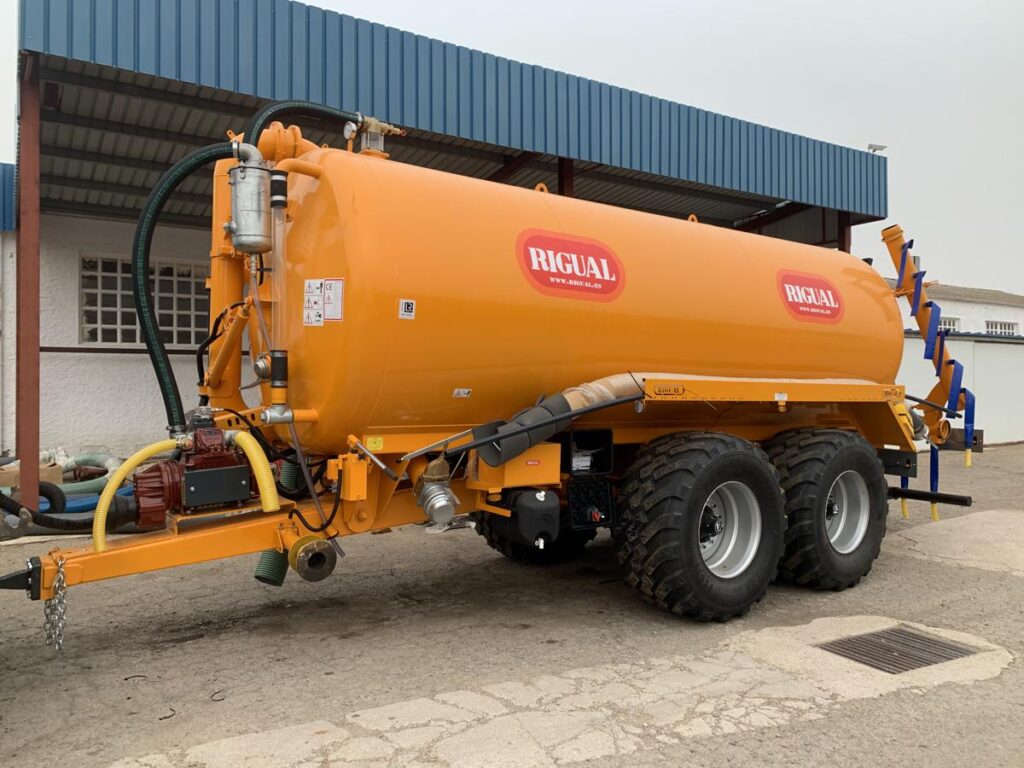

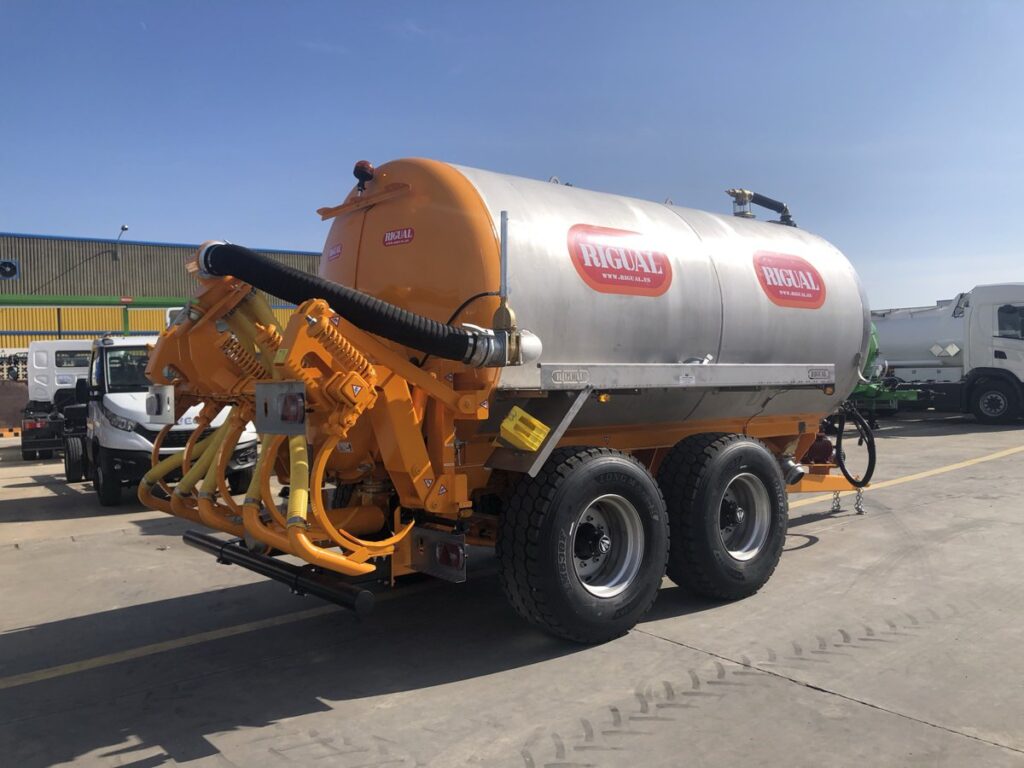

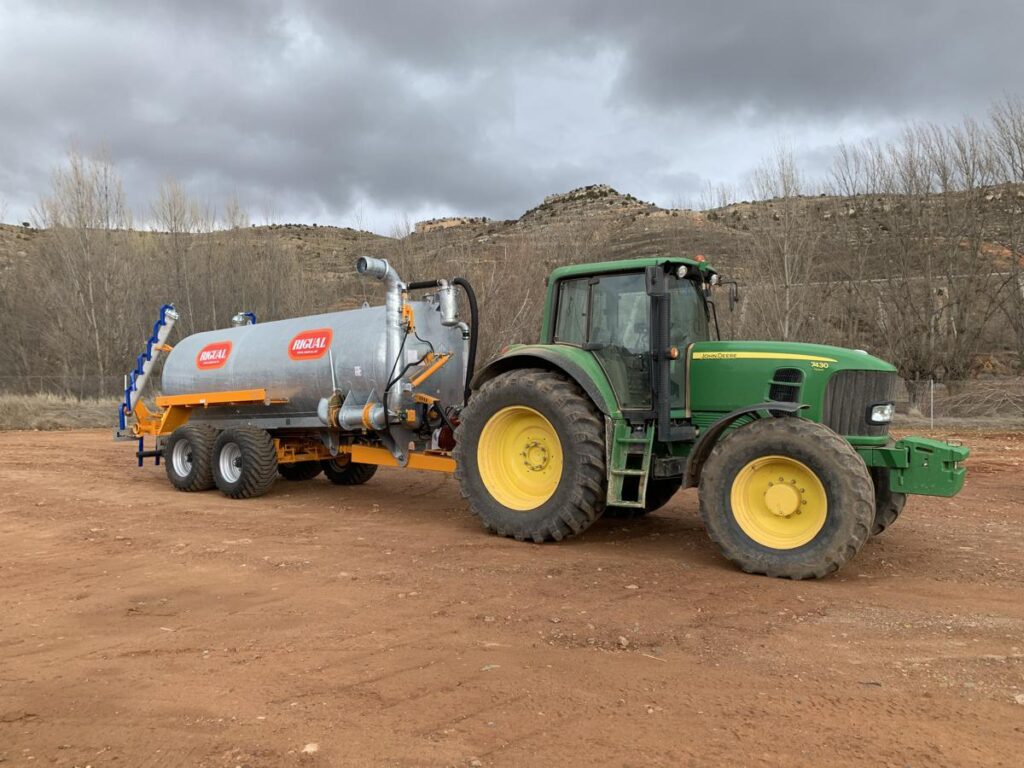

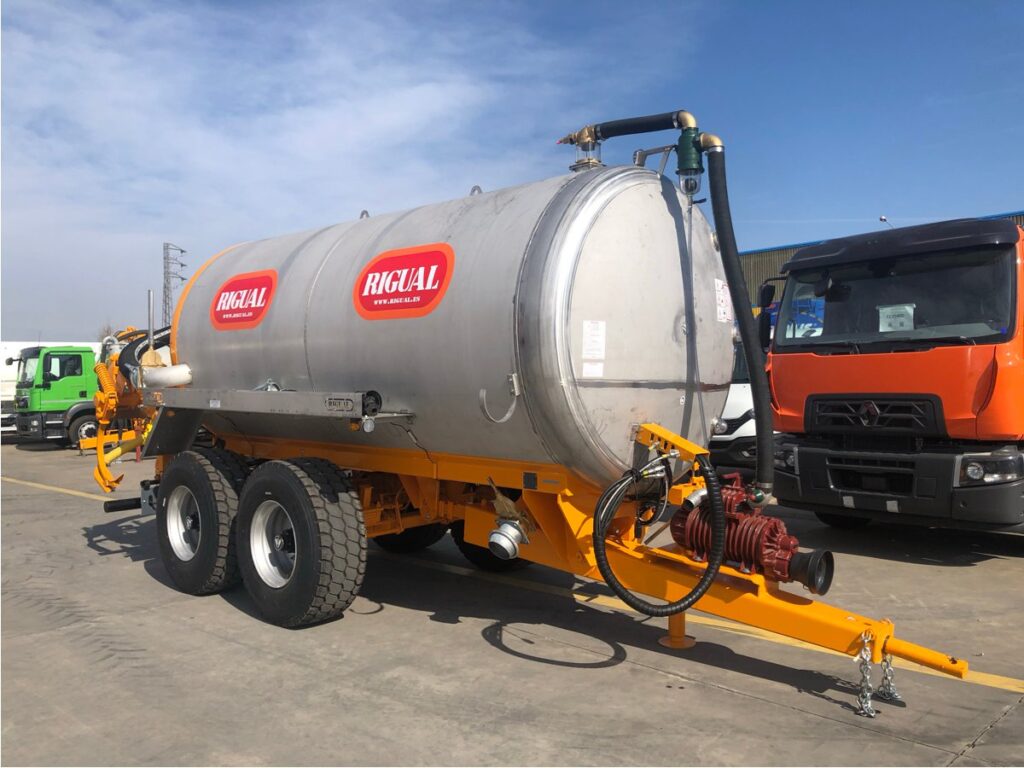

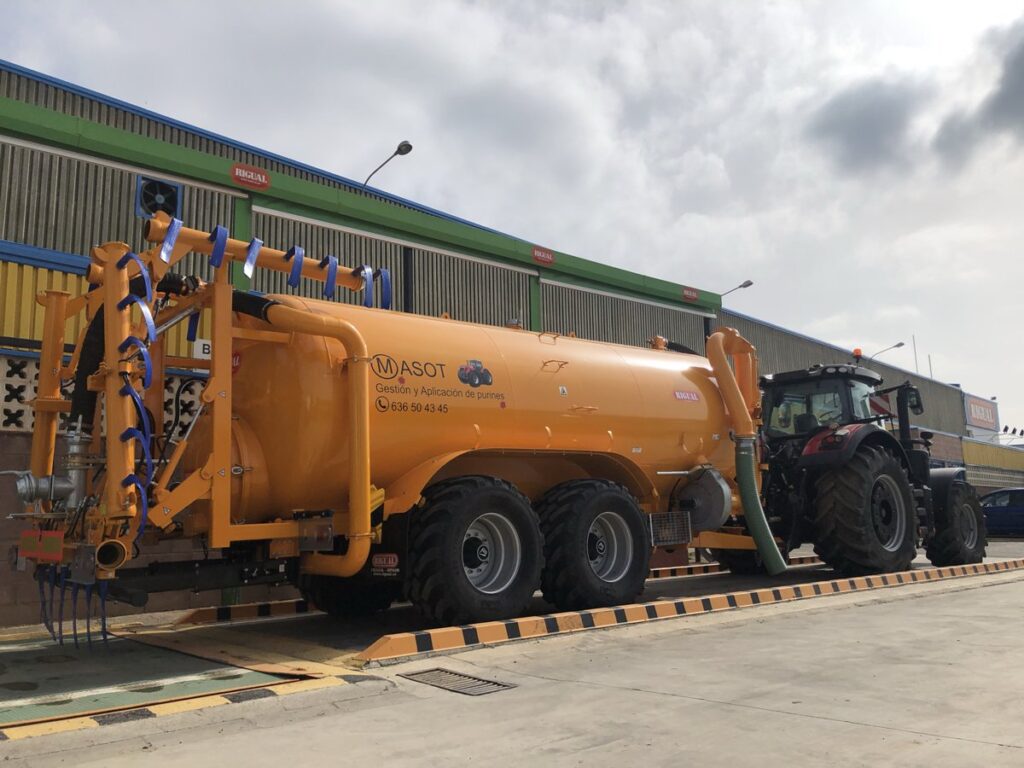

- From 8.000 L to 24.000 L.
- For 8.000L full section rear door with manual screw locks..
- From 10.000 lts rear door D 1.000mm.
- Galvanized cyclone separator (from CP-161).
- Tool box and water tank from CP-140.
- All models have a subframe.
- Cast iron industrial quality boggies.
- Internal baffle (1 to 3 according to size -
- Hydraulic landing leg with manual oil pump from CP-140.
- Drawbar leaf spring suspension with height adjustment from CP-120.
- Certified ring coupling.
- Several options for slurry spreaders.

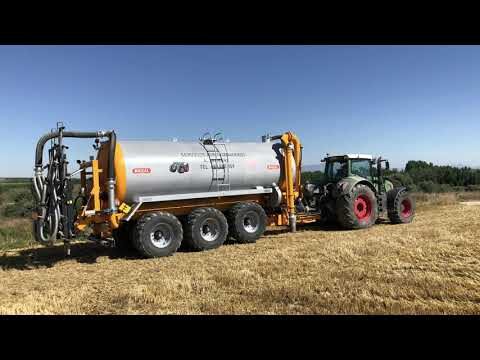

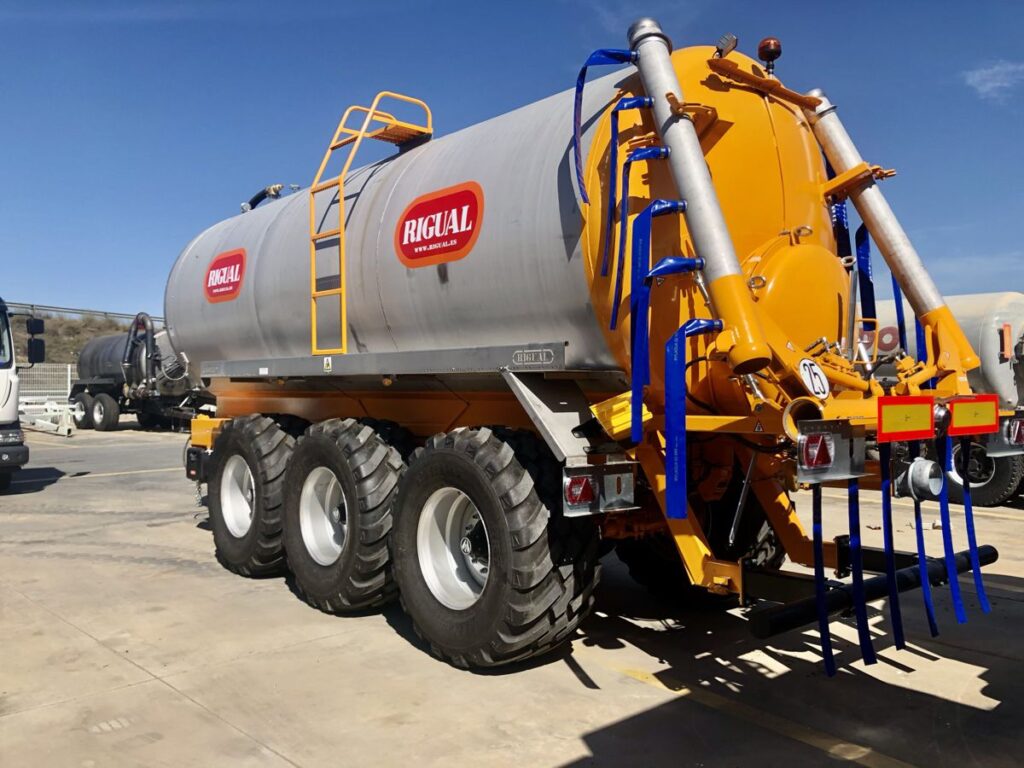

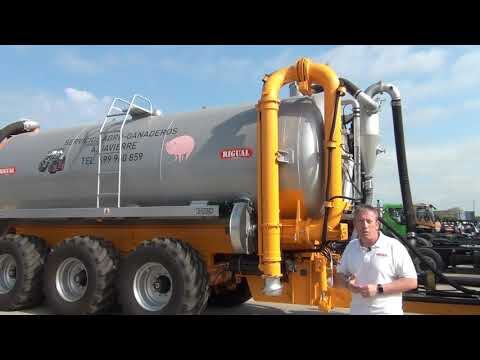

- From 20.000 L to 30.000 L.

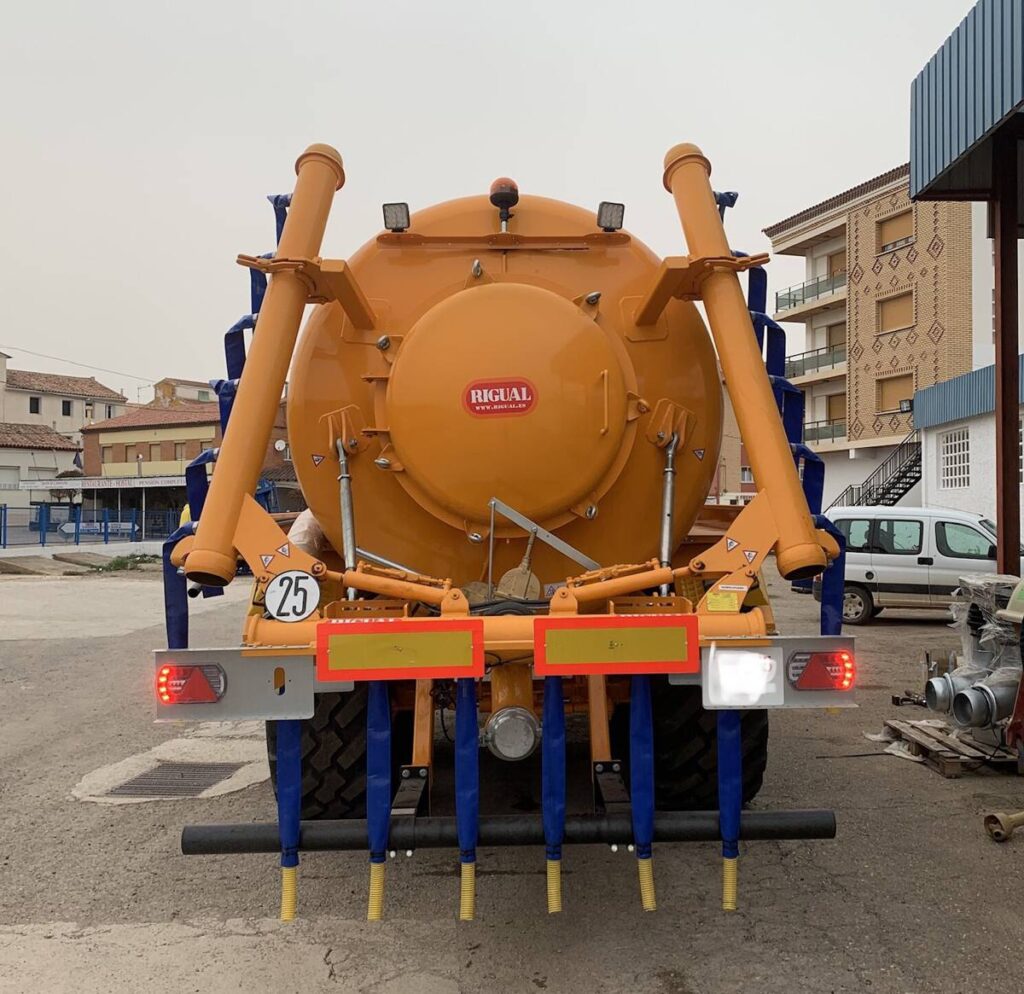

- Rear door D 1.000mm. with manual screw locks.
- All models have a subframe.

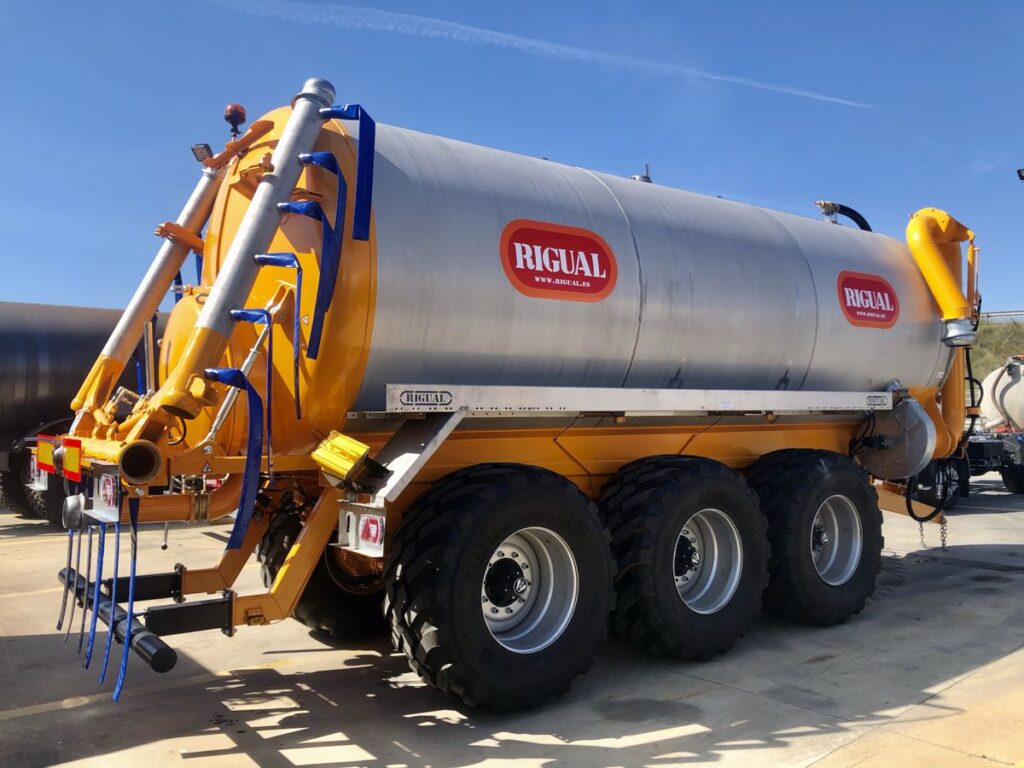

- 36T TRIDEM with leaf spring or hydraulic suspensione.
- 1st and 3rd self steering axles as standard.
- High quality axles with hydraulic or pneumatic brakes.
- Internal baffles (3 to 4 according to size -
- Hydraulic landing leg with manual oil pump.
- Drawbar leaf spring suspension with mechanical or hydraulic height adjustment.
- Enganche de anilla homologado.
- Several options for slurry spreaders.
- Several subframe options.
- 3 axles GVW 24.000 Kgs on all axles + coupling.
- Long vehicle plates for all models.
