The models in the IRRIGATION and FLUSHING series are designed to optimise a scarce resource such as water in an environmentally friendly way. Prepared to work in urban environments, they comply with current noise and vibration regulations, improving the quality of the service and the citizens’ perception of it.

These types of cisterns are manufactured with capacities ranging from 3,000 to 16,000 litres and the material they are made of is chosen according to the requirements of each client.

The versatility of the design allows for the installation of various accessories (ducks, spikes, pole, high pressure reel, top gun…).

Our Rigual Smart technology is the key to make irrigation water management extremely easy and ecological; achieving an automatic and immediate adjustment of flow and pressure to the working conditions requested by the user and to the speed of the vehicle.

Ecological flow rate: the higher the speed, the higher the water flow rate.


Available models
and technical characteristics

  • Manufactured in aluminium, carbon steel or stainless steel AISI 304 or 316, with polycentric, oval or cylindrical section.
  • Tanks with a capacity of 1500 to 20000 litres in one compartment and number of breakwaters depending on their capacity.
  • Centrifugal irrigation or multistage pump for irrigation and flushing cisterns.
  • Hydraulic or manual auxiliary reel.
  • Hose tray.
  • Tool drawer.
  • High penetration, high quality electrostatic painting.
  • Own design of the tank and its main components.
Optional
  • High pressure cleaning pump (15 L/min and 150 bar) with hose reel, hose and lance for finishing off.
  • Upper barrel.
  • Rear control panel.
  • Mounting for hook equipment.
  • Rigual IoT platform for remote equipment management.

  • Tanks with a capacity of 1500 to 20000 litres in one compartment and number of breakwaters depending on their capacity.
  • PLC control of irrigation and flushing water system (Rigual Smart).
  • Automatic speed-dependent control of the irrigation water flow rate.
  • Front bar with aluminium sprinkler heads and integral Rigual design duckbills.
  • Equipment enclosure, lined on the inside with sound-absorbing material and side doors.
  • 15 m3/h, 15 bar multistage centrifugal pump, driven by hydrostatic system with variable displacement pumps.
  • Hydraulic or manual auxiliary reel with 20 m of 1" hose and a 3 effect lance.
  • Manually operated overhead pole with hose for hosing down.
  • Hose holder tray.
  • Tool drawer.
Optional
  • Double upper pole.
  • Side and rear pressure outlets.
  • Rear watering bar.
  • Upper barrel.
  • Rear control panel.
  • Mounting for hook equipment.
  • Rigual IoT platform for remote equipment management.

    • Tanks with a capacity of 1500 to 30000 litres in one compartment and number of breakwaters depending on their capacity.
    • Centrifugal pump driven by a hydrostatic system to support irrigation and water loading.
    • Manual auxiliary reel with 20 m of 1" hose.
    • Manually operated overhead pole with hose for hosing down.
    • Hose holder tray.
    • Tool drawer.
    Optional
    • Side and rear pressure outlets.
    • Rear watering bar.
    • Rear control panel.
    • Mounting for hook equipment.

    • Tanks with a capacity of 1500 to 30000 litres in one compartment and number of breakwaters depending on their capacity, made of stainless steel.
    • Valid for the transport of drinking water.
    • Centrifugal pump driven by a hydrostatic system to support irrigation and water loading.
    • Manual auxiliary reel with 20 m of 1" hose.
    • Hose holder tray.
    • Tool drawer.
    Optional
    • Mounting for hook+M5 equipment.

    Sales Department - Environment

    Telephone:
    974 474 169
    Fax:
    974 472 075
    E-mail:
    comercial@rigual.es
    contact

    Galleryuses and applications

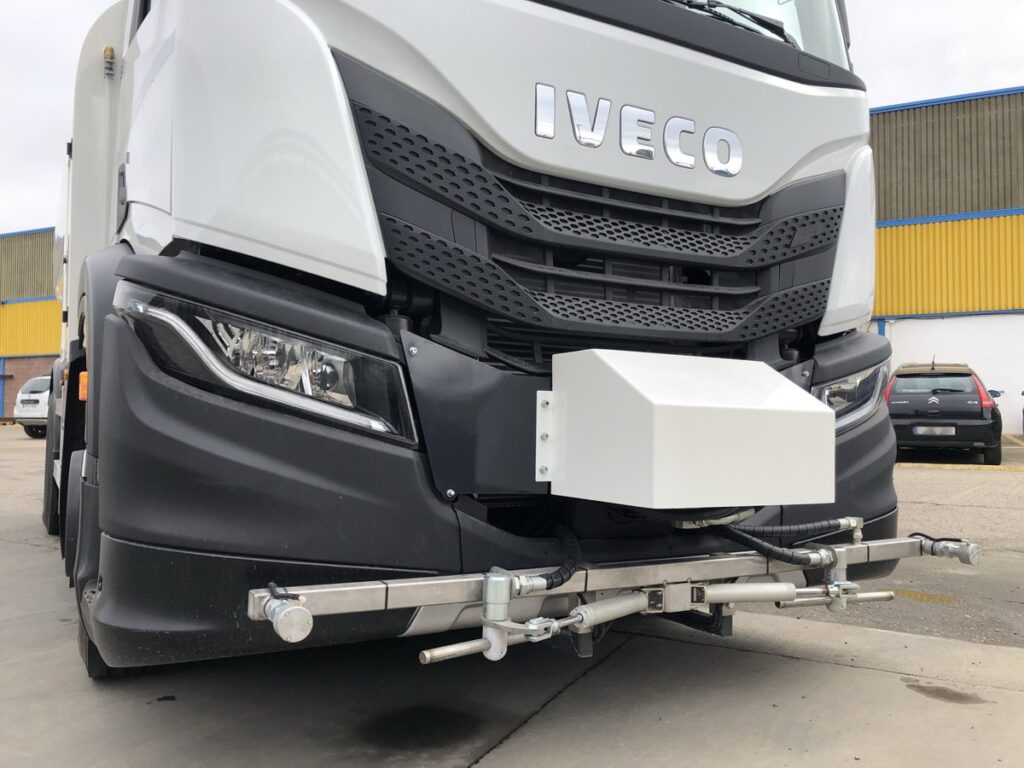

    Detalle barra de riego y baldeo con cuerpo redondeado y piñas laterales

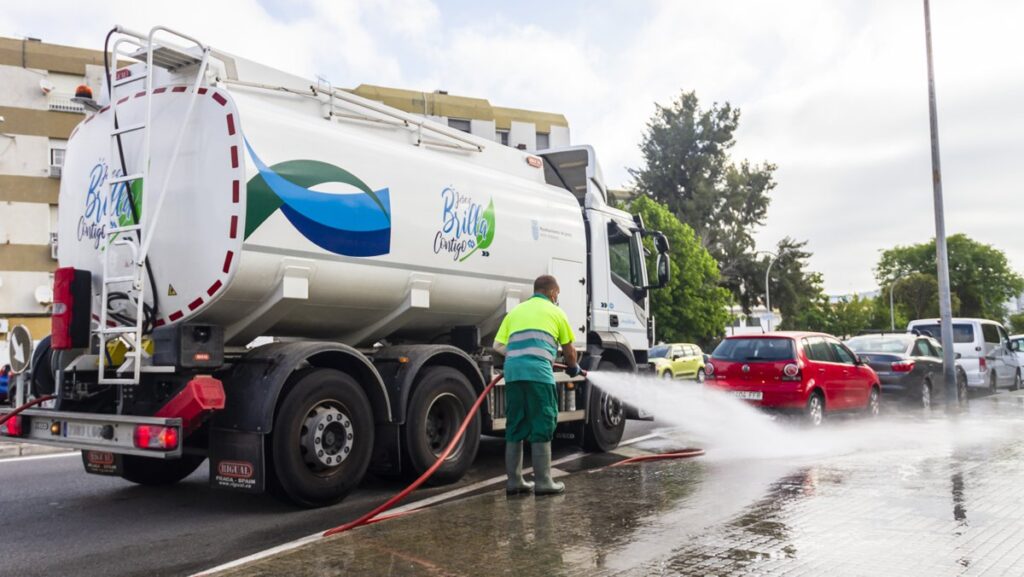

    Camión de riego y baldeo con cisterna Rigual de 16000 litros

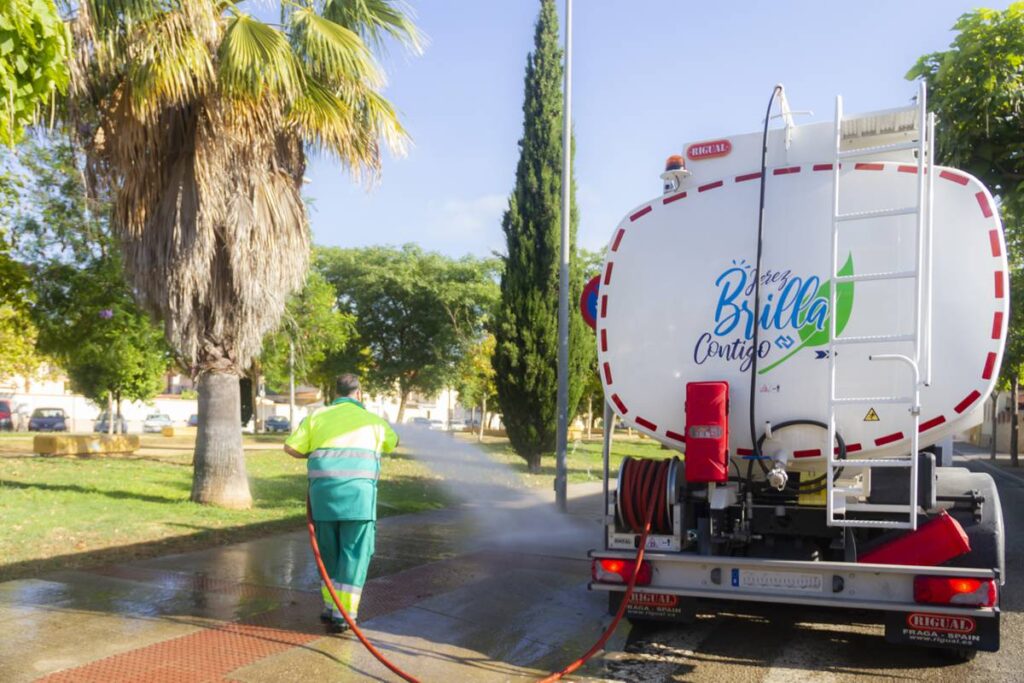

    Camión de riego y baldeo con cisterna Rigual de 16000 litros y pertíga superior

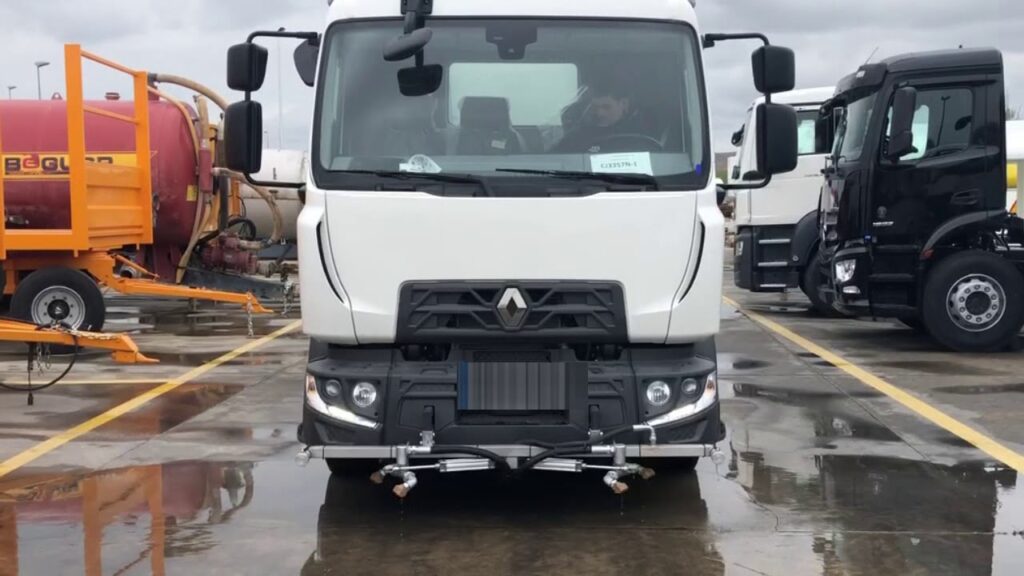

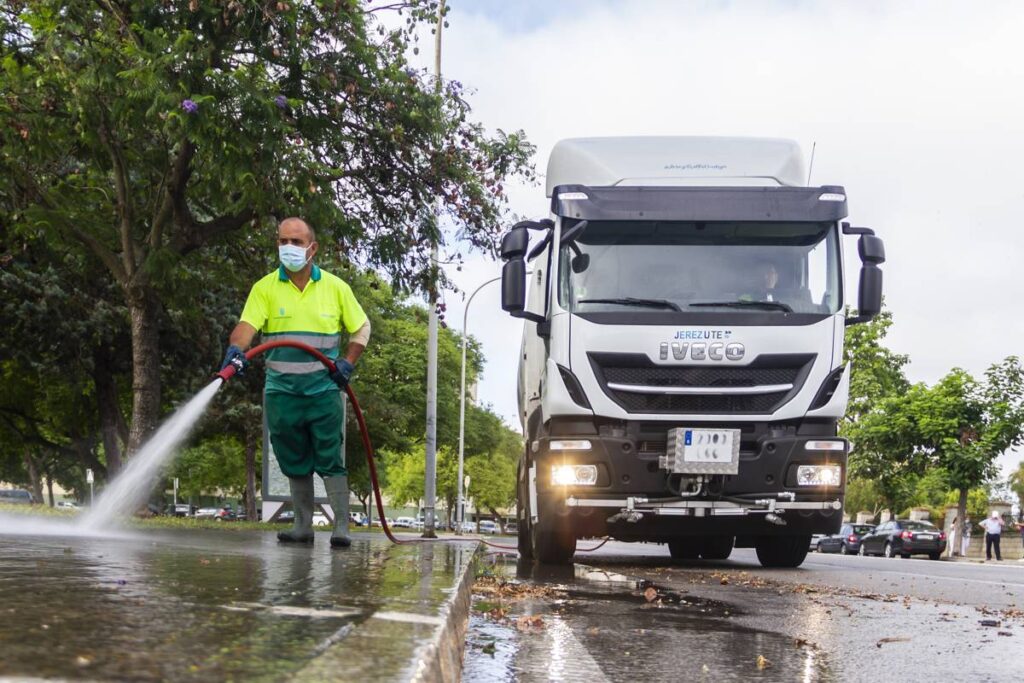

    Camión de riego y baldeo con cisterna Rigual de 16000 litros con barra de riego delantera

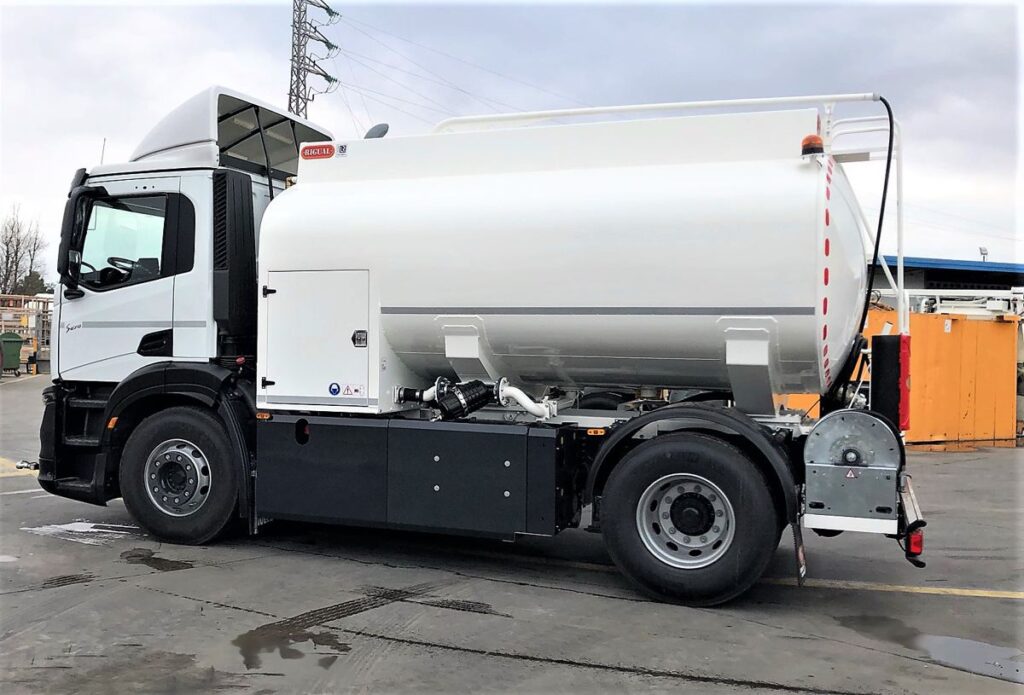

    Camión de riego y baldeo con cisterna Rigual de 10000 litros

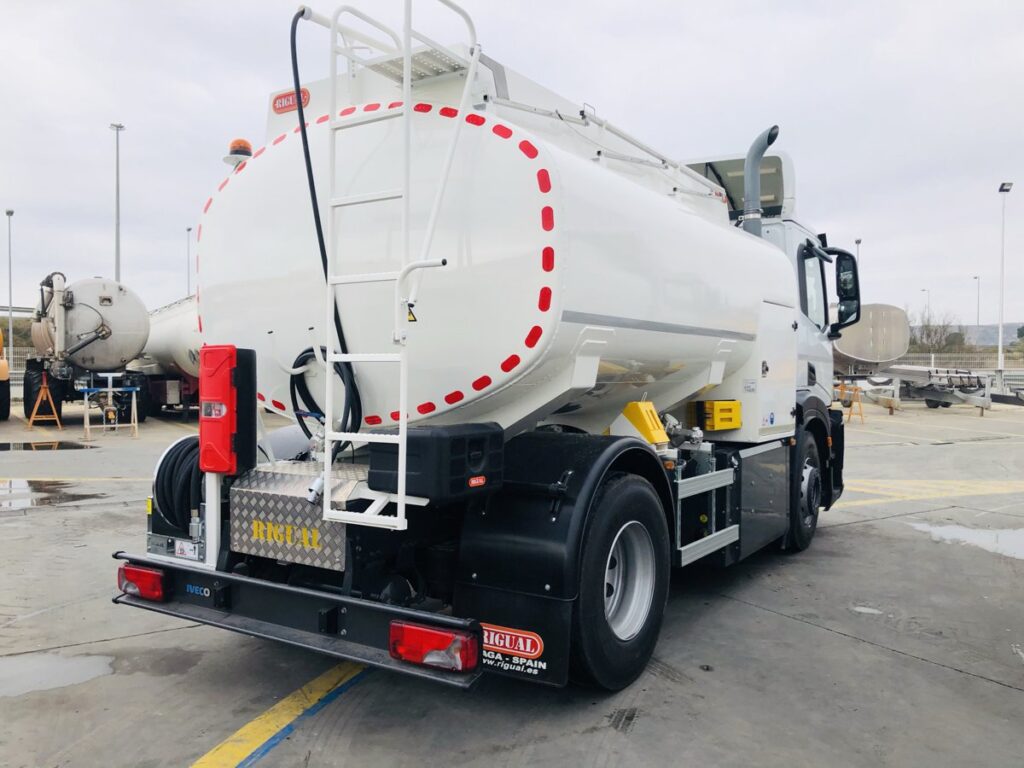

    Camión de riego y baldeo con cisterna Rigual de 10000 litros sobre chasis Iveco

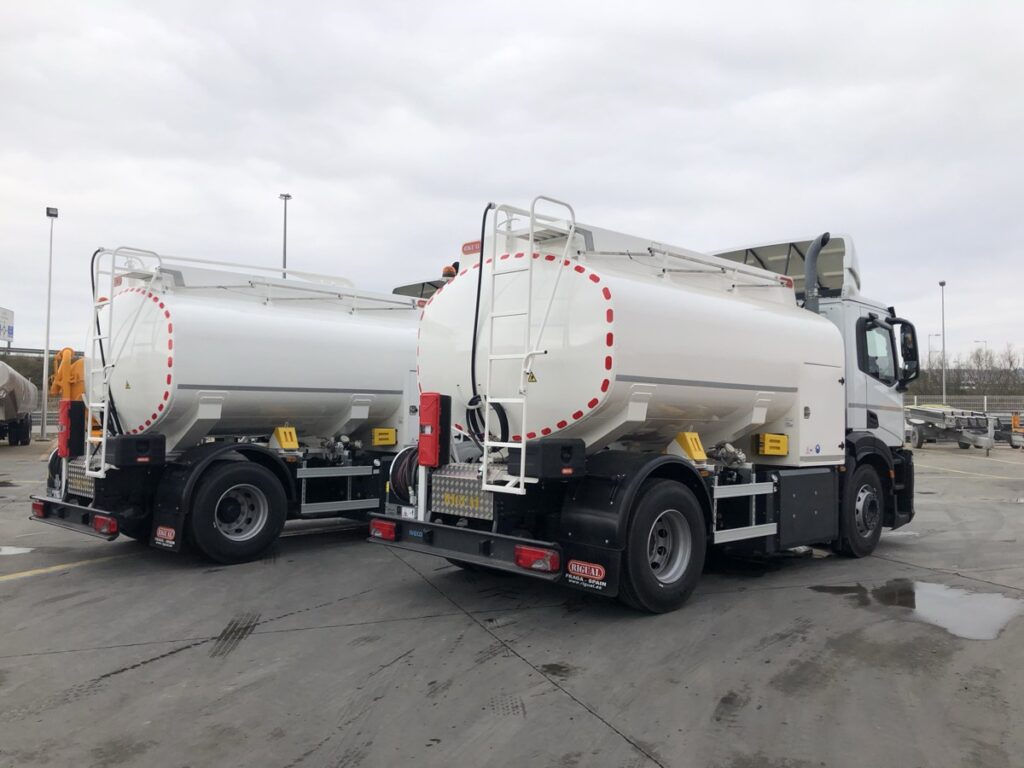

    Camión de riego y baldeo con cisterna Rigual de 10000 litros fabricada en aluminio

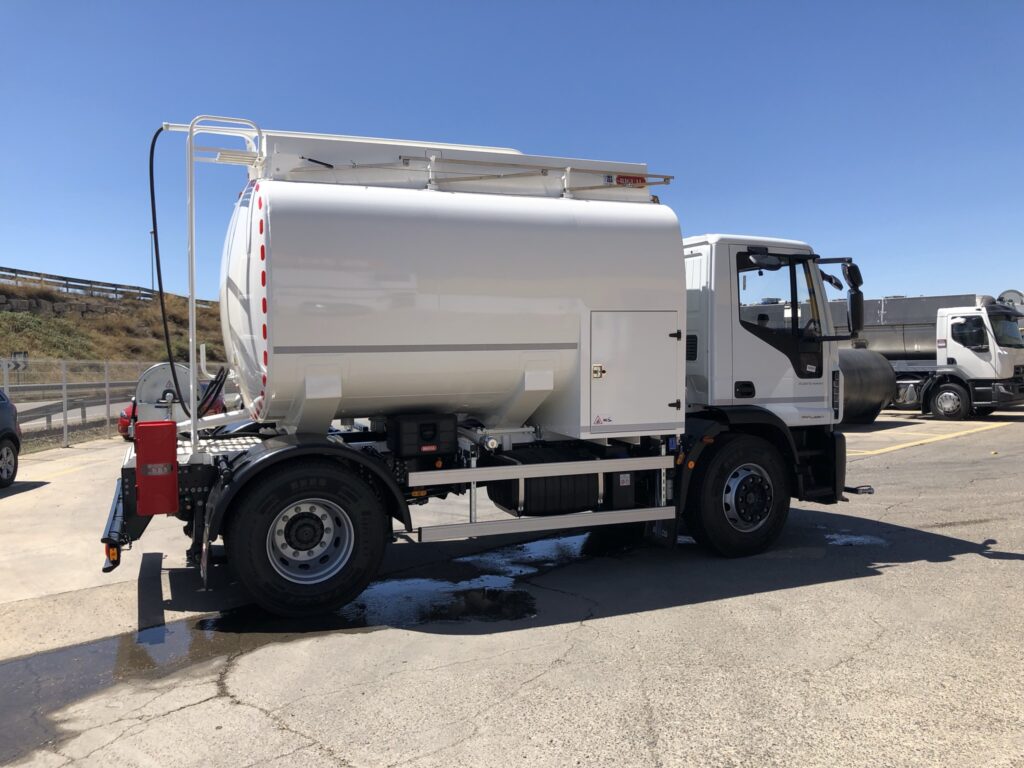

    Camión de riego y baldeo con cisterna Rigual de 10000 litros fabricada en aluminio y pertiga superior

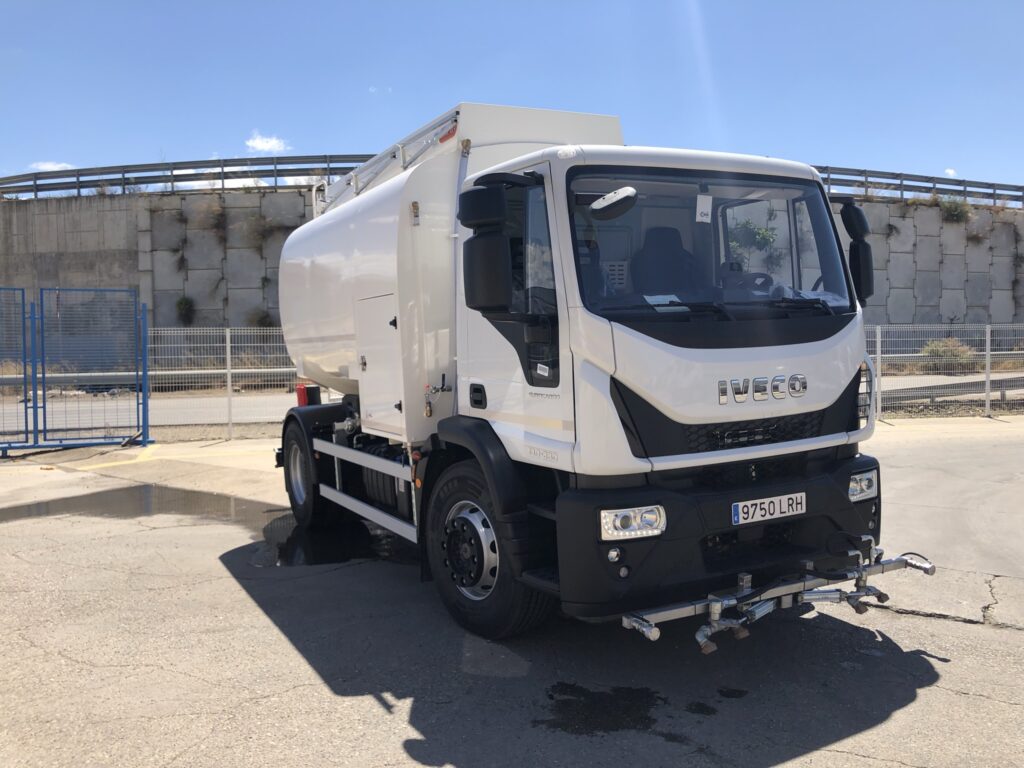

    Camión de riego y baldeo con cisterna Rigual de 10000 litros fabricada en aluminio con pertiga superior y barra de riego delantera

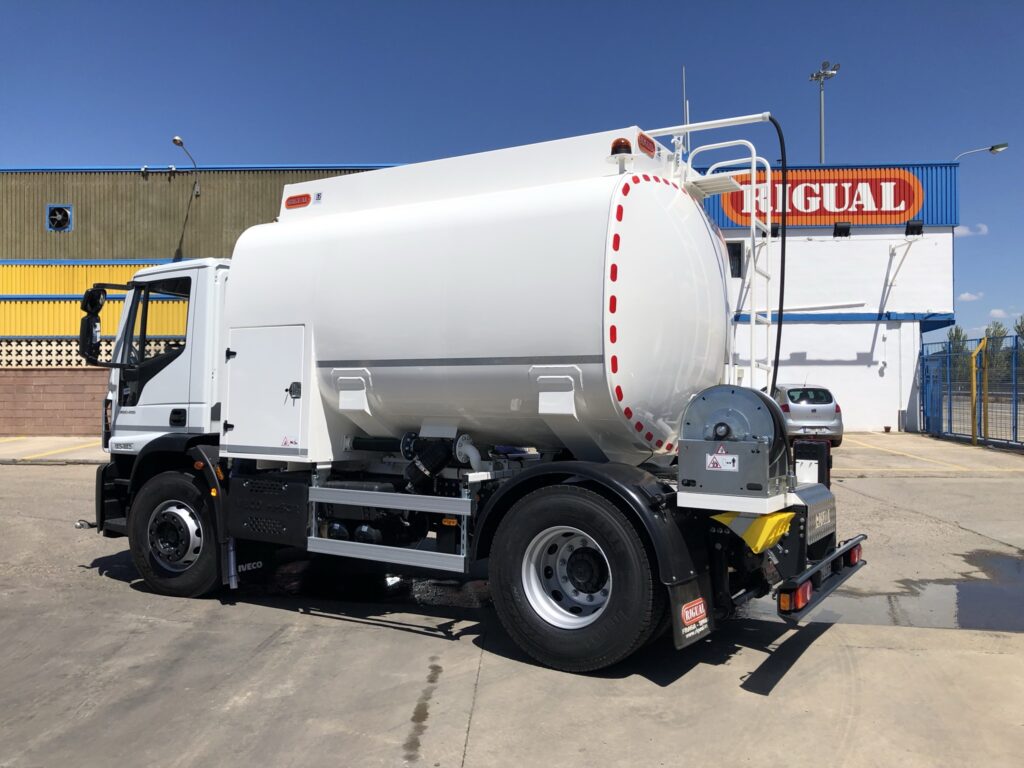

    Camión de riego y baldeo con cisterna Rigual de 10000 litros con pertiga superior

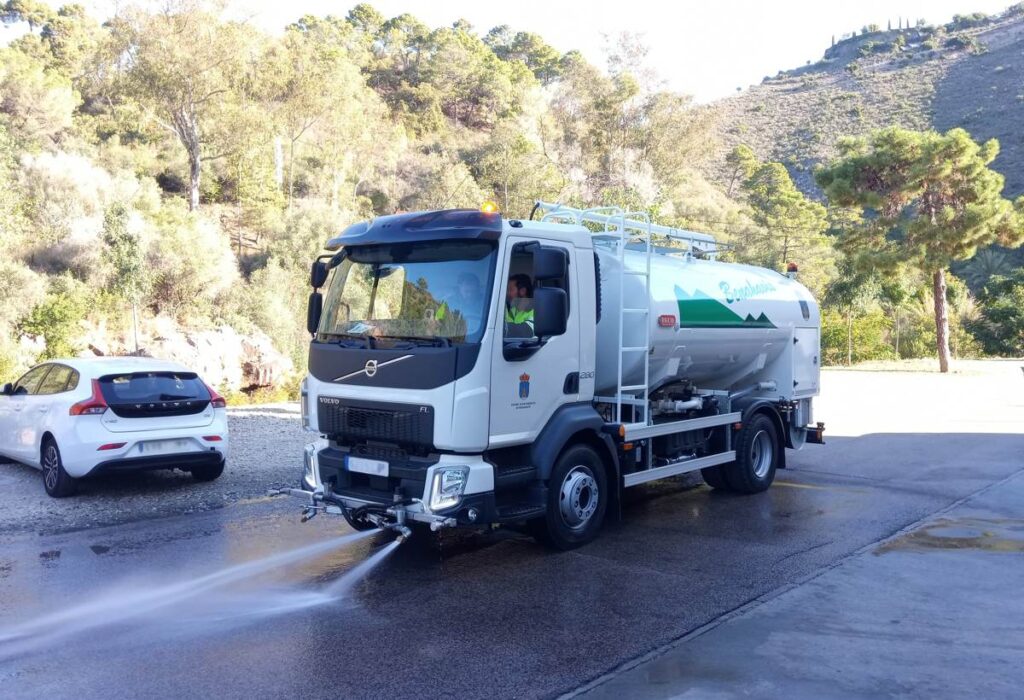

    Camión de riego y baldeo con cisterna Rigual de 9000 litros

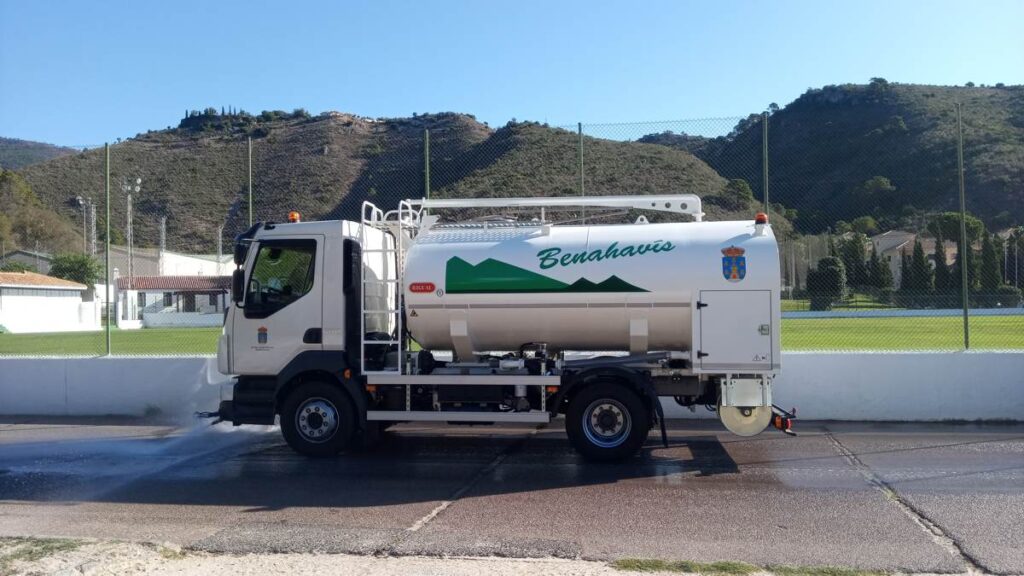

    Camión de riego y baldeo con cisterna Rigual de 9000 litros en aluminio

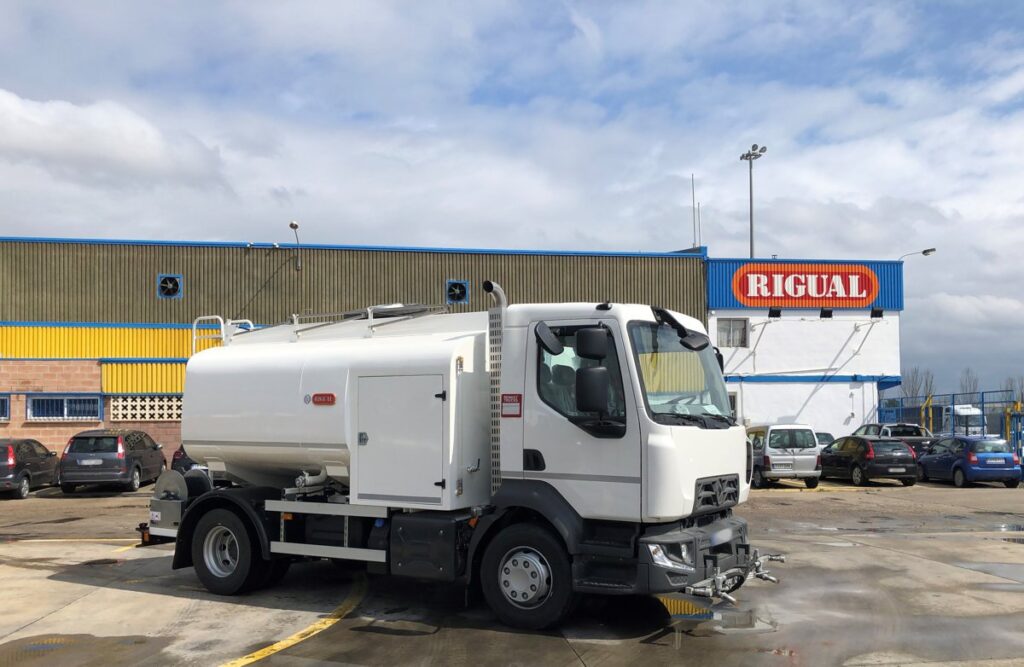

    Camion de riego y baldeo con cisterna Rigual de 8000 litros

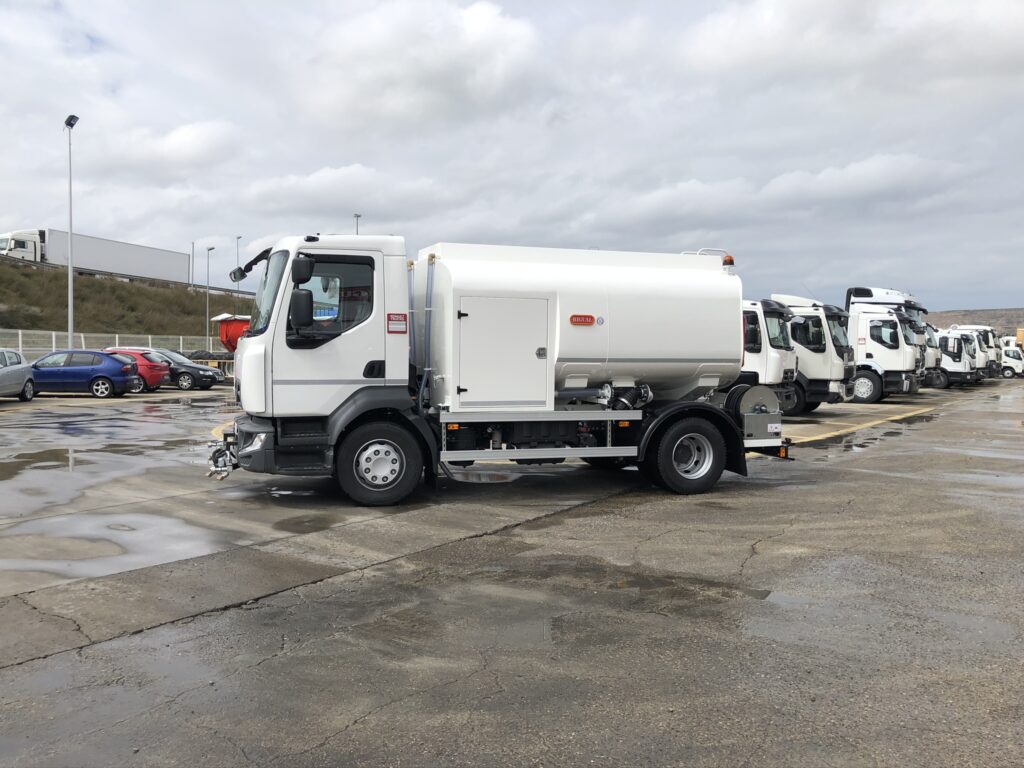

    Camion de riego y baldeo con cisterna Rigual de 8000 litros en aluminio

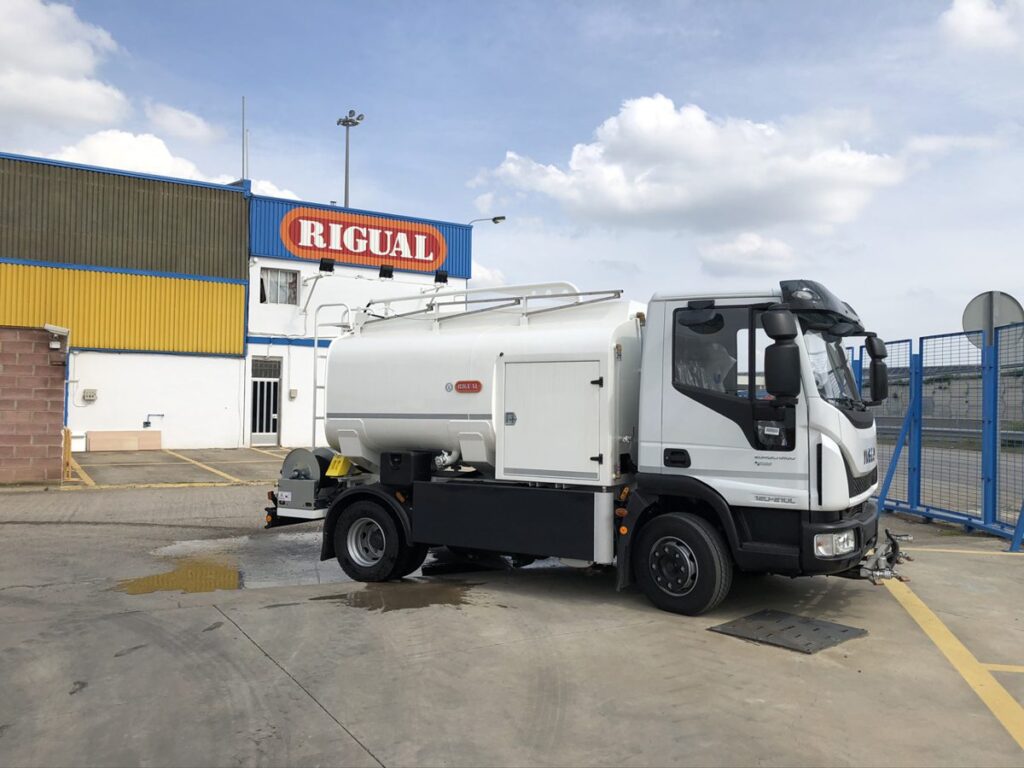

    Camión de riego y baldeo con cisterna Rigual de 6000 litros con pertiga

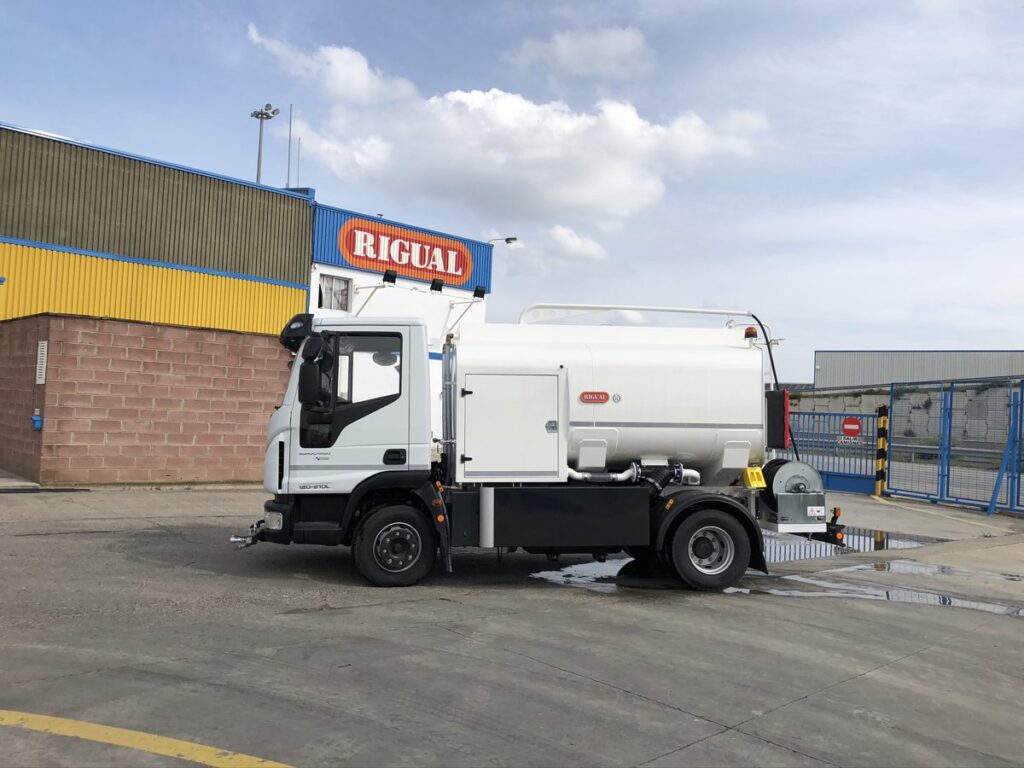

    Camión de riego y baldeo con cisterna Rigual de 6000 litros con pertiga superior

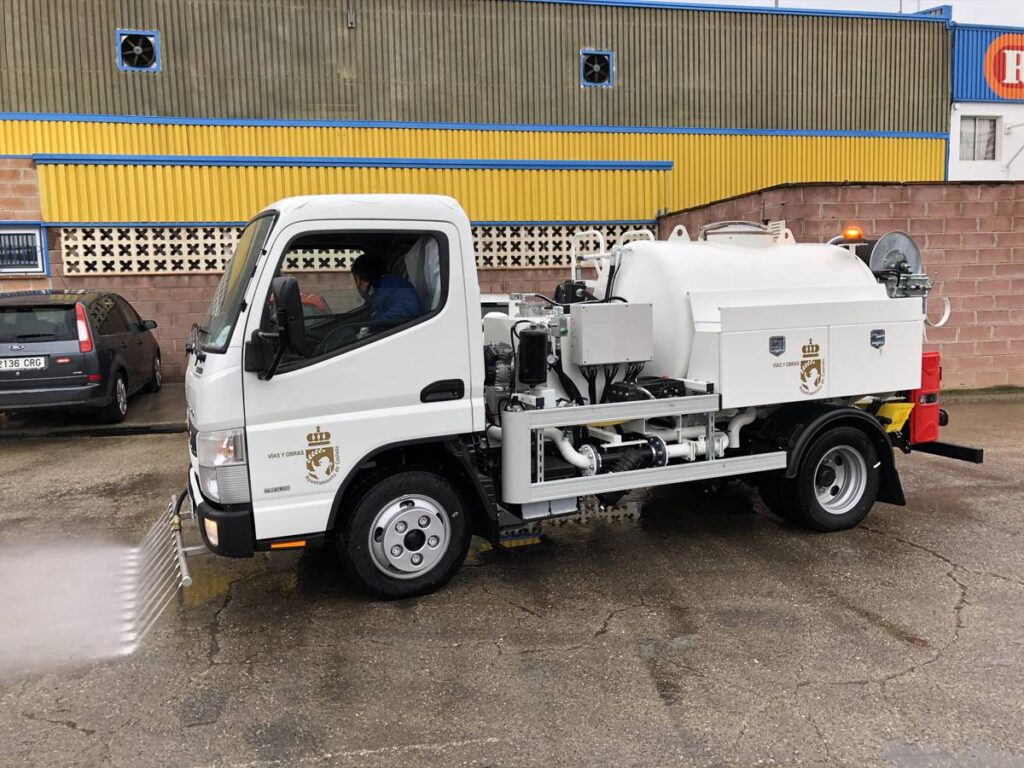

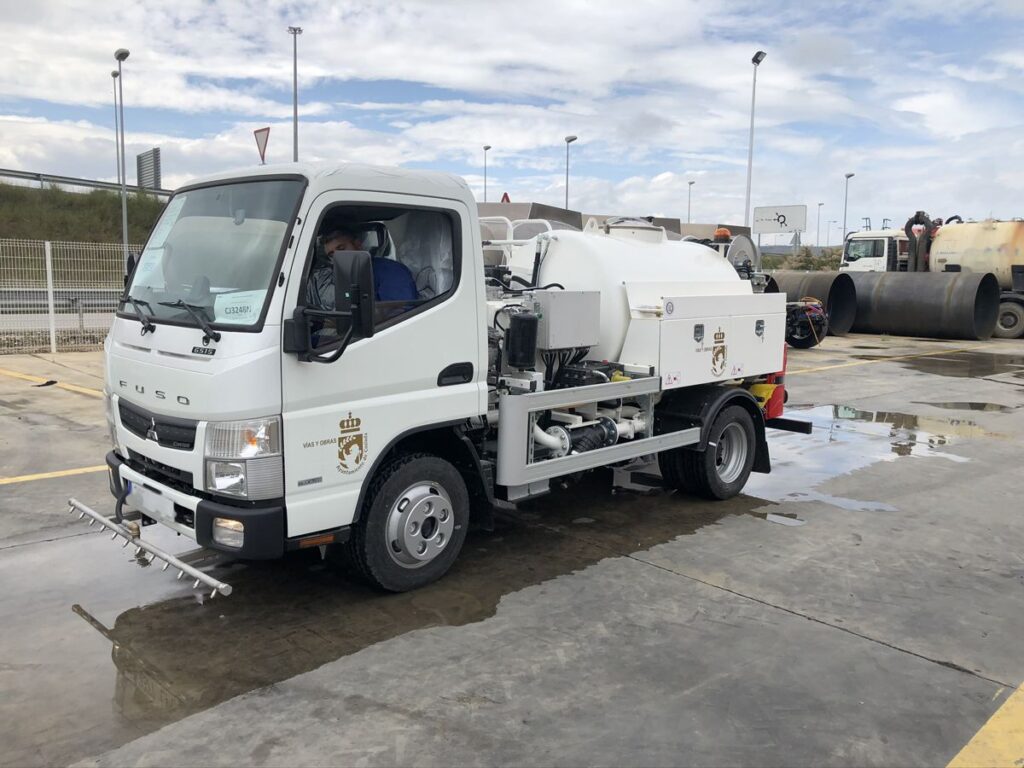

    Camión con cisterna Rigual de 2000 litros con bomba y barra de riego

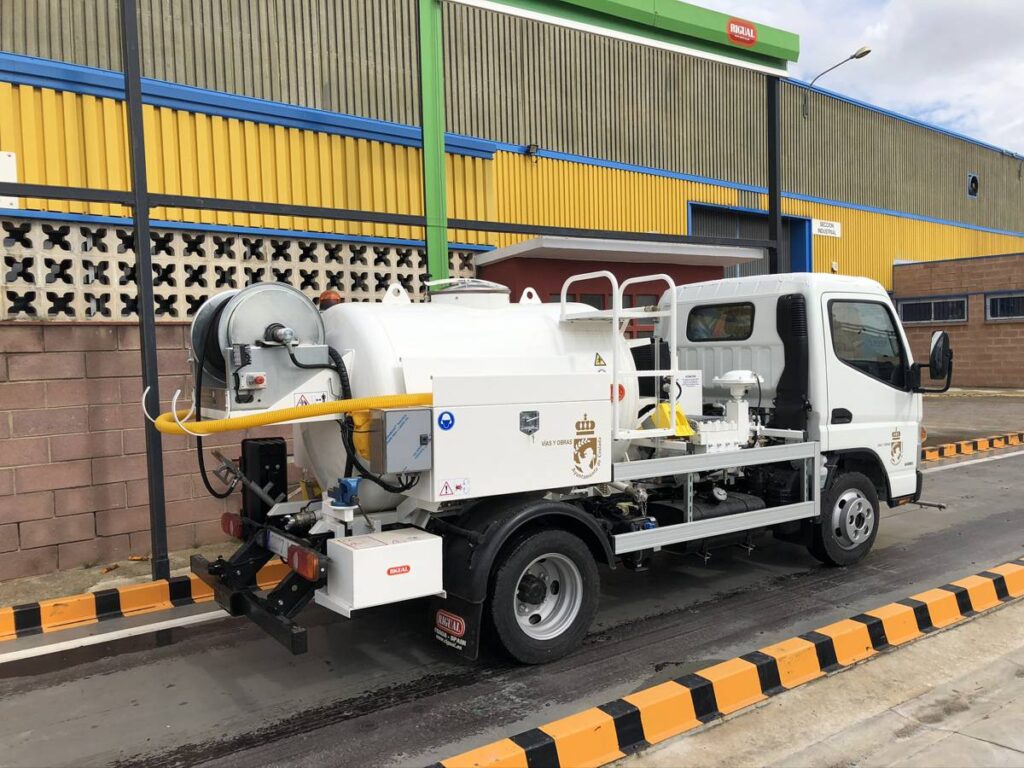

    Camión con cisterna Rigual de 2000 litros con barra de riego y bomba de agua

    Camión con cisterna Rigual de 2000 con barra de riego y bomba de agua

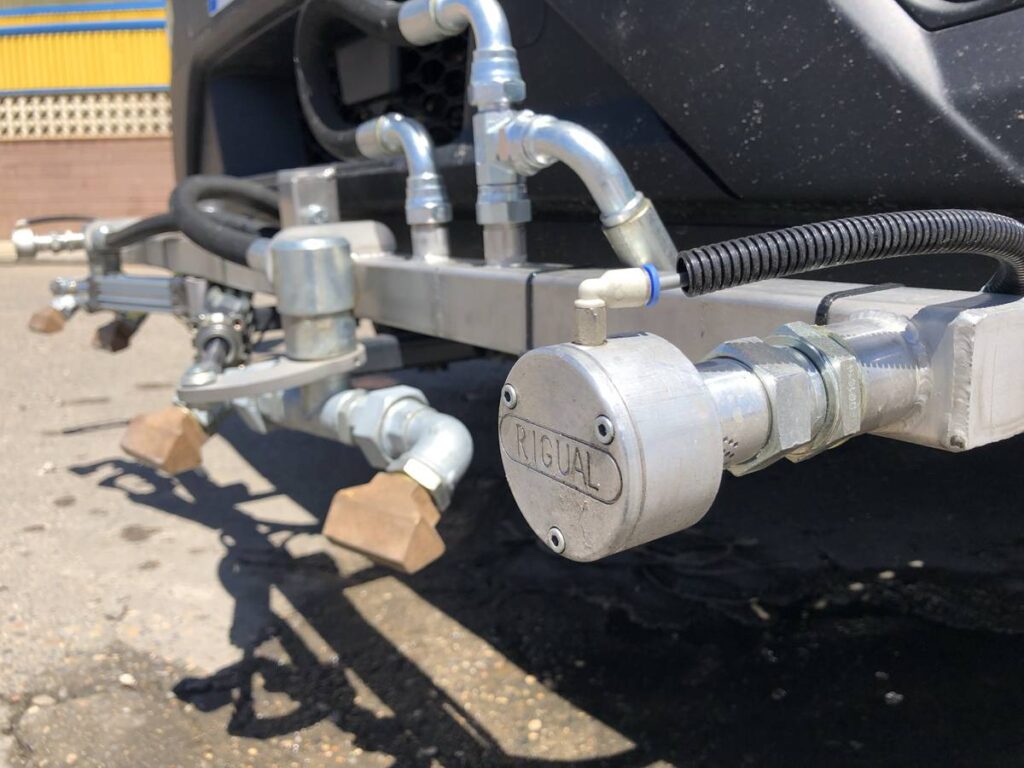

    Barra de riego y baldeo con bocas de pato y piñas laterales

    Product
    advantages

    • Design flexibility..
    • Reduced and proven low noise emissions.
    • Safety and ease of operation. The irrigation and flushing cisterns are equipped with the Rigual Smart system that adjusts the irrigation water flow according to the speed of the equipment.
    • The tank designs fit any chassis on the market, both brand and fuel, giving our tanks the greatest manufacturing and design flexibility on the market.
    • We have carried out various studies and acoustic emission tests which show that our equipment works well below the noise thresholds set by current European legislation.
    • Ergonomics and ease of use, in less than 20 minutes operators can make safe, economical and highly productive use of our equipment.
    • The IoT platform enables online monitoring of the operation of this equipment, including the ability to obtain the water consumption by flushing zones.

    • Safety and ease of operation.
    • The tank designs fit any chassis on the market, both brand and fuel, giving our tanks the greatest manufacturing and design flexibility on the market.
    • We have carried out various studies and acoustic emission tests which show that our equipment works well below the noise thresholds set by current European legislation.
    • Ergonomics and ease of use, in less than 20 minutes operators can make safe, economical and highly productive use of our equipment.

    • Safety and ease of operation.
    • Design flexibility.
    • The tank designs fit any chassis on the market, both brand and fuel, giving our tanks the greatest manufacturing and design flexibility on the market.
    • Made of stainless steel, they are suitable for the transport of drinking water.
    • Ergonomics and ease of use, in less than 20 minutes operators can make safe, economical and highly productive use of our equipment.
