Rigual delivery tanks are approved equipment in accordance with the ADR regulations in force for the transport of fuels. During their manufacture, they are subjected to quality controls, radiographic welding, pressure tests and any other test or inspection necessary for their registration.

Rigual tanks are equipped as standard with components (pumps, meters, distributors, etc.) of the highest quality and performance on the market.

The reels and spools are RIGUAL’s exclusive design and adapt perfectly to our bodies:

Single or double radial winder on front visor.
Axial winder in side box or rear hood.

Multiple options depending on the application, need or chosen chassis.

Both supply equipment and winders can be protected in shutter boxes, bus type doors, …

Available models
and technical characteristics

Manufactured in aluminium EN-AW-5182 (s/ Standard EN 14286:2008).
AT or FL certification depending on the type of fuel to be transported.
Top or bottom loading CLH.
Capacities from 6000 to 20000 litres.
Capacities and compartments to be defined according to chassis tonnage and customer requirements.
Axial or radial winders manufactured by Rigual with layout and quantity according to customer requirements.
High penetration and high quality electrostatic painting.
Own design of the tank and its main components.

Capacity:6,000 litres
Compartments: 2
Bomba y Boquerel: Alfonsh Haar 400 L/min, ZVA-32.
Counter: Electronic.
Winder: 1 on visor, side or rear hood.
CLH loads: No, Optional: Yes.
Chassis: Recommended MMA 10 Tn.

Capacity: 7000-8000 litres
Compartments: 2, Optional 3
Pump and Nozzle: Alfonsh Haar 400 L/min, ZVA-32 or ZV-40.
Counter: Electronic
Winder: 1 on visor, side or rear hood. Optional 2 winders.
CLH Loads: Yes, Optional No
Chassis: Recommended MMA 13 Tn

Capacity: 10,000-11,000 litres
Compartments: 3, Optional 2
Pump and Nozzle: Alfonsh hair 400 L/min; ZVA-32, ZV-40
Counter: Electronic
Winder: 2 on visor, side or rear hood
CLH Loads: Yes, Optional No
Chassis: Recommended MMA 16 Tn

Capacity: 12,000-13,000 litres
Compartments: 3, Optional 2
Pump and Nozzle: Alfonsh hair 400 L/min; ZVA-32, ZV-40
Counter: Electronic
Winder: 2 on visor, side or rear hood
CLH Loads: Yes, Optional No
Chassis: Recommended MMA 18 Tn

Galleryuses and applications

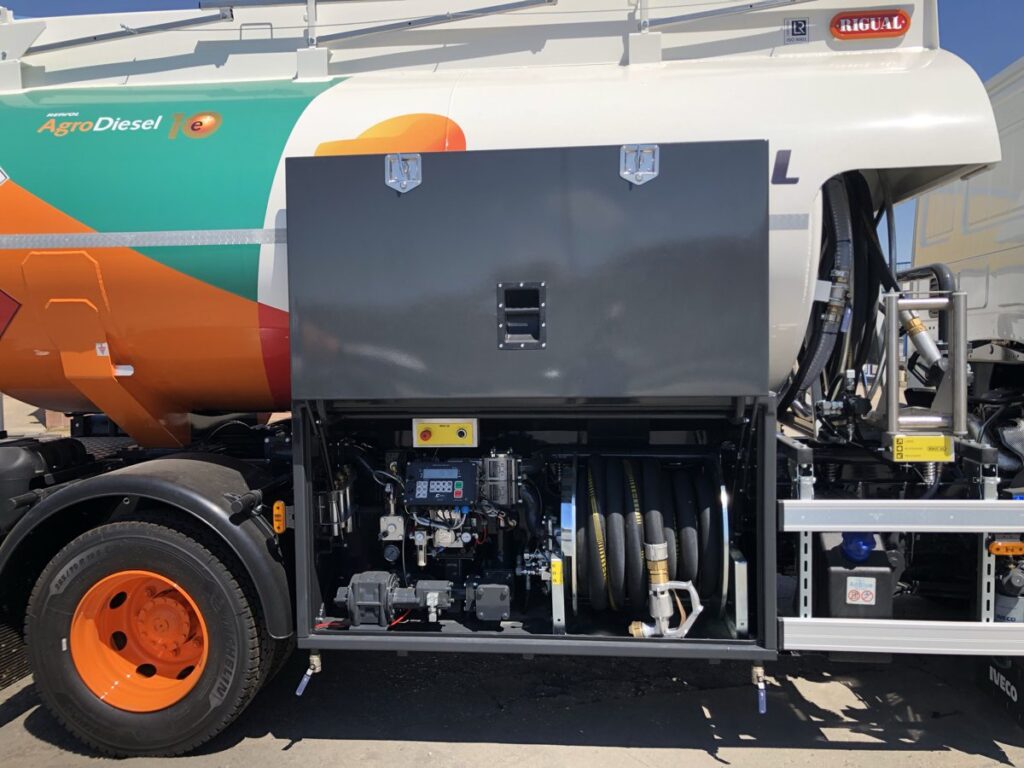

Equipo con devanadera de cajon

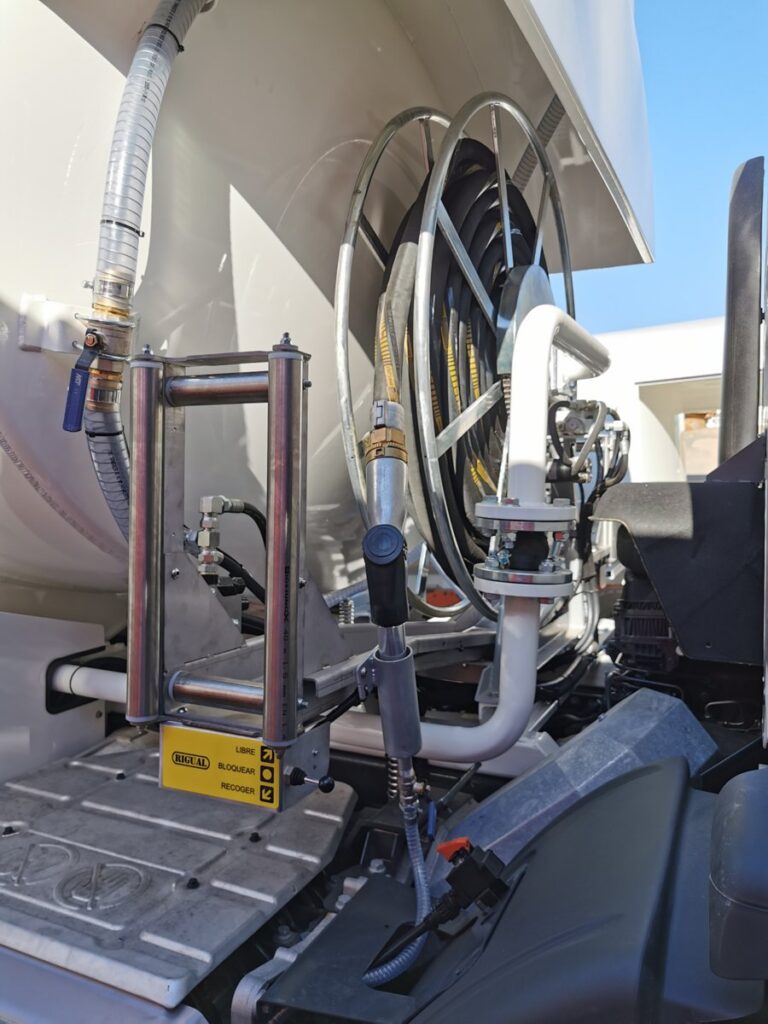

Devanadera de capilla delantera

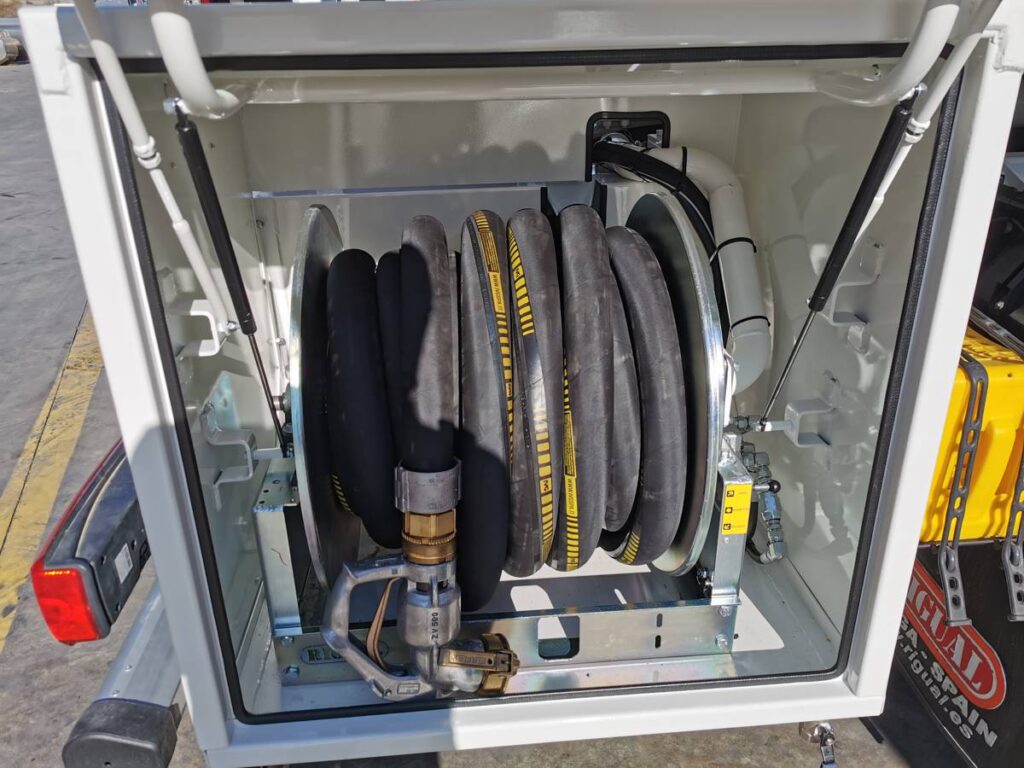

Devanadera de cajon lateral

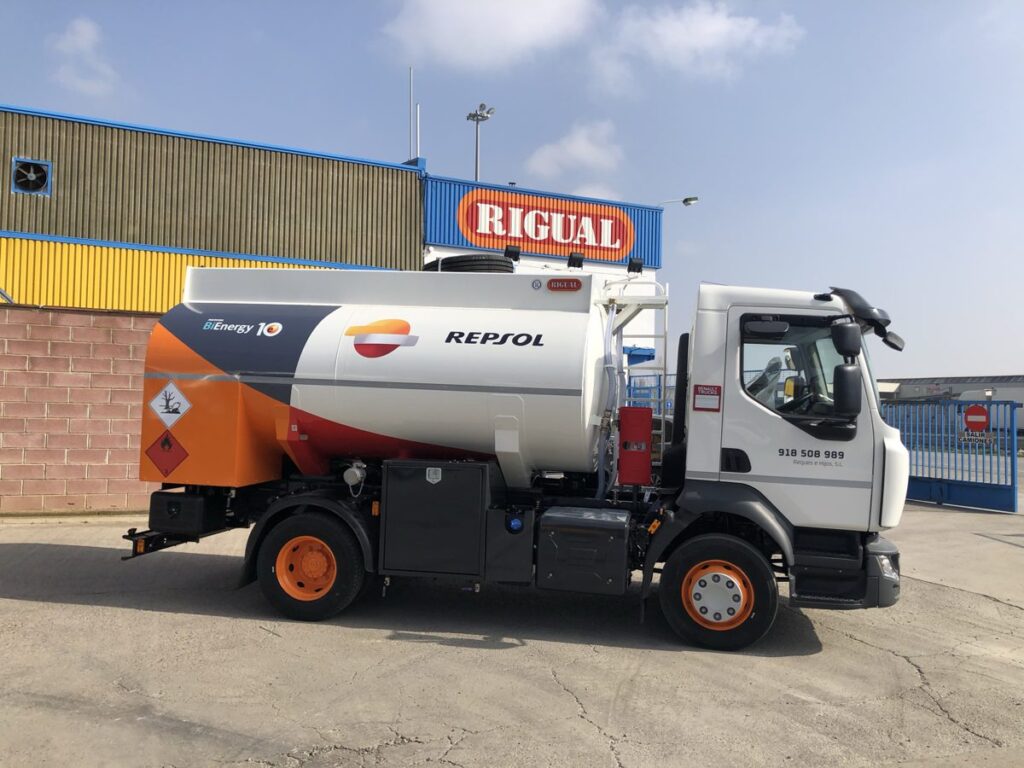

Cisterna Rigual para carburante de 8000 litros sobre chasis con capilla trasera

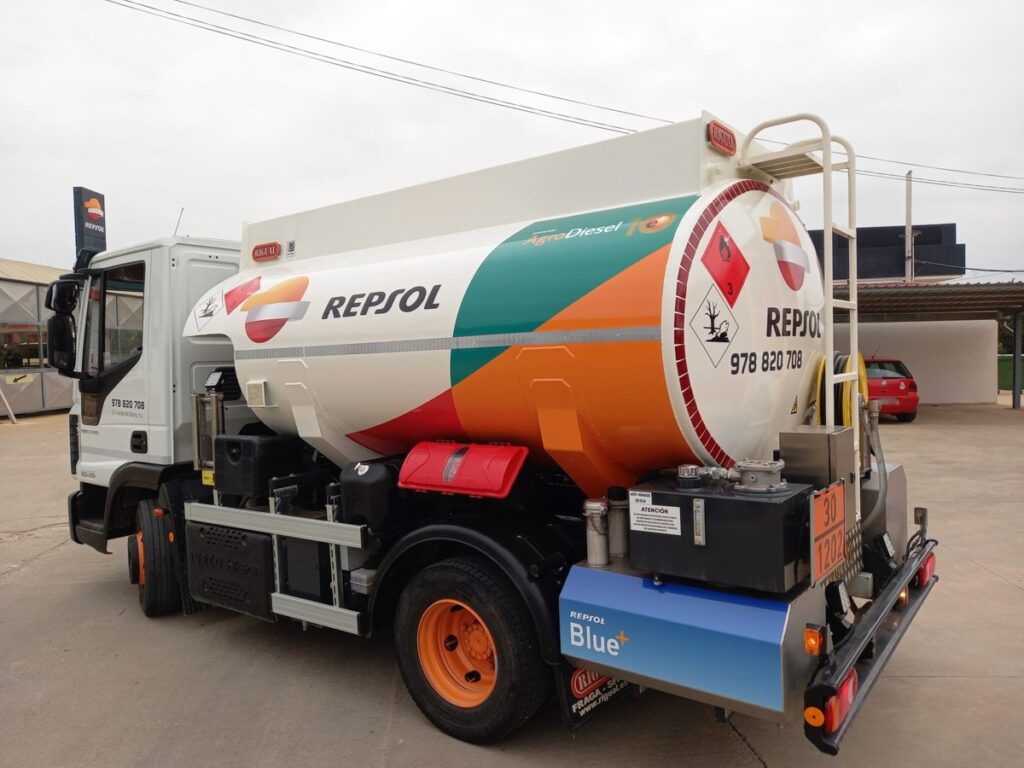

Cisterna Rigual para carburante de 6000 litros

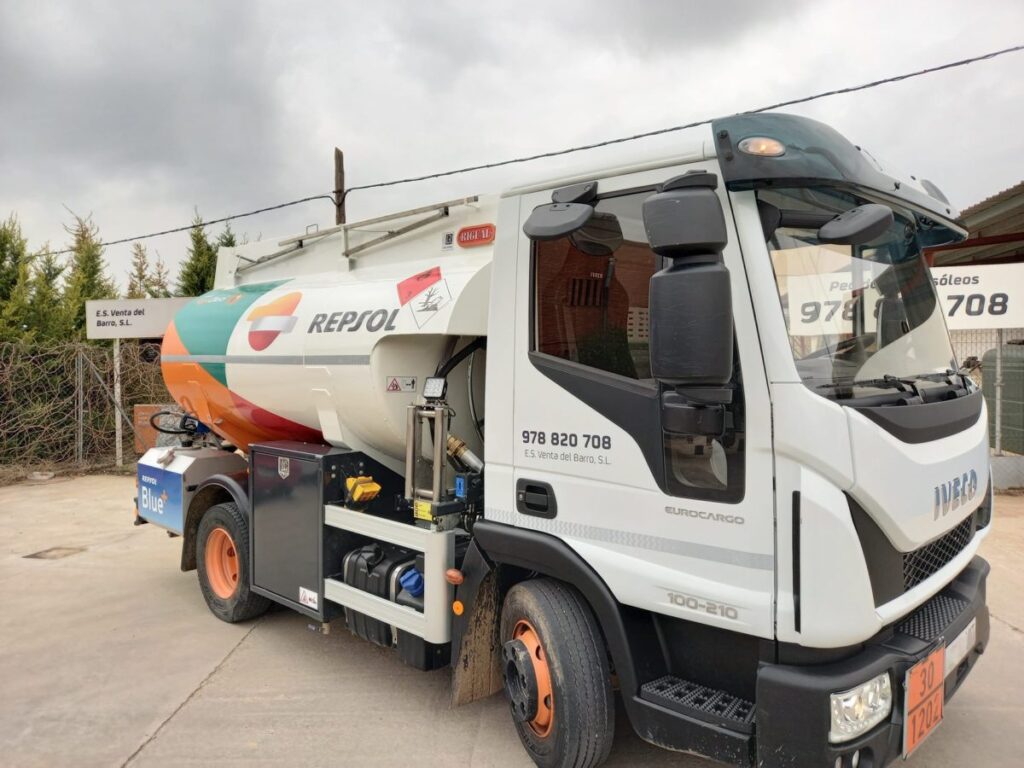

Cisterna Rigual para carburante de 6000 litros y adblue

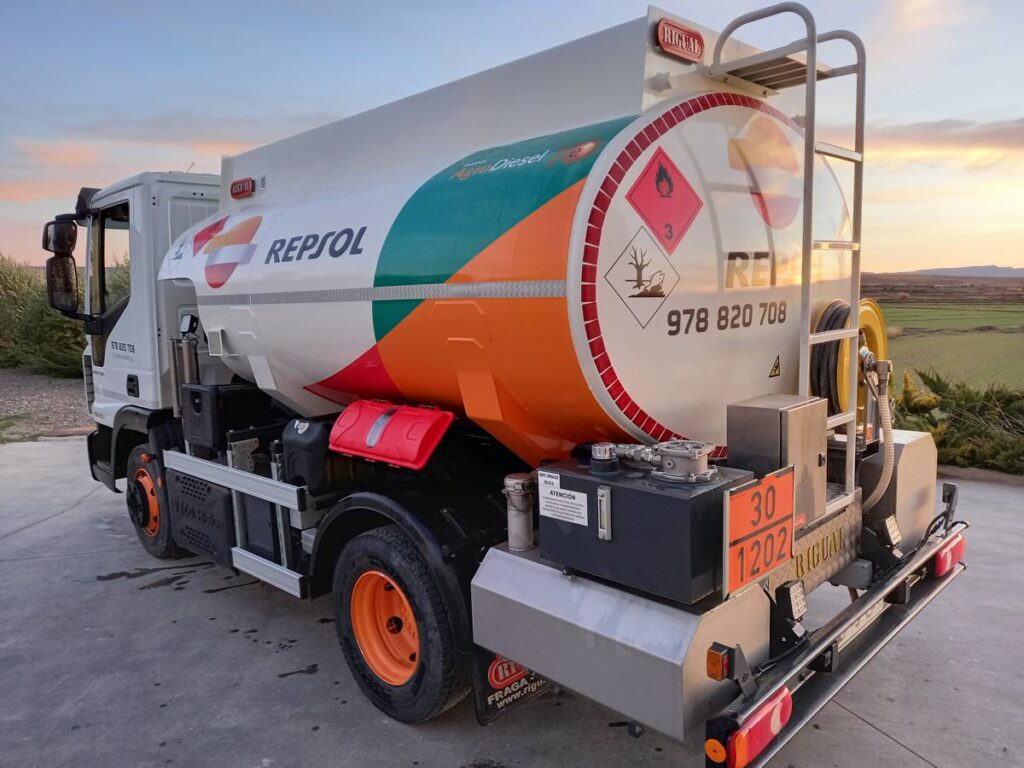

Cisterna Rigual para carburante con depositos de adblue

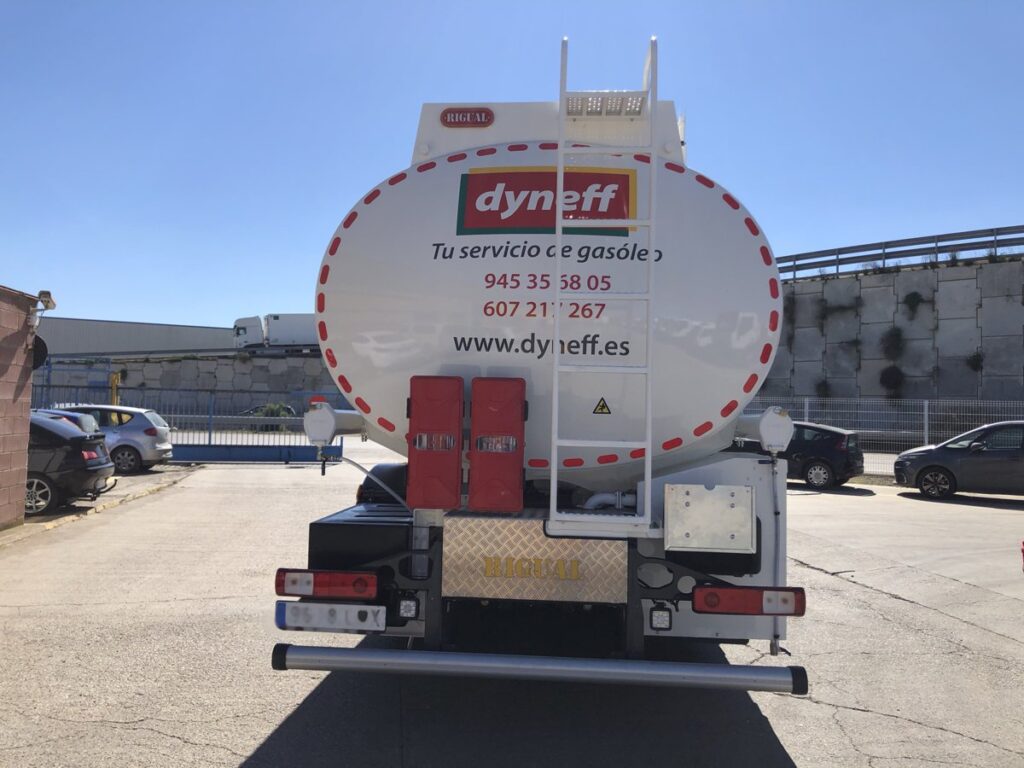

Cisterna Rigual de 20000 litros para reparto de gasoils y gasolinas

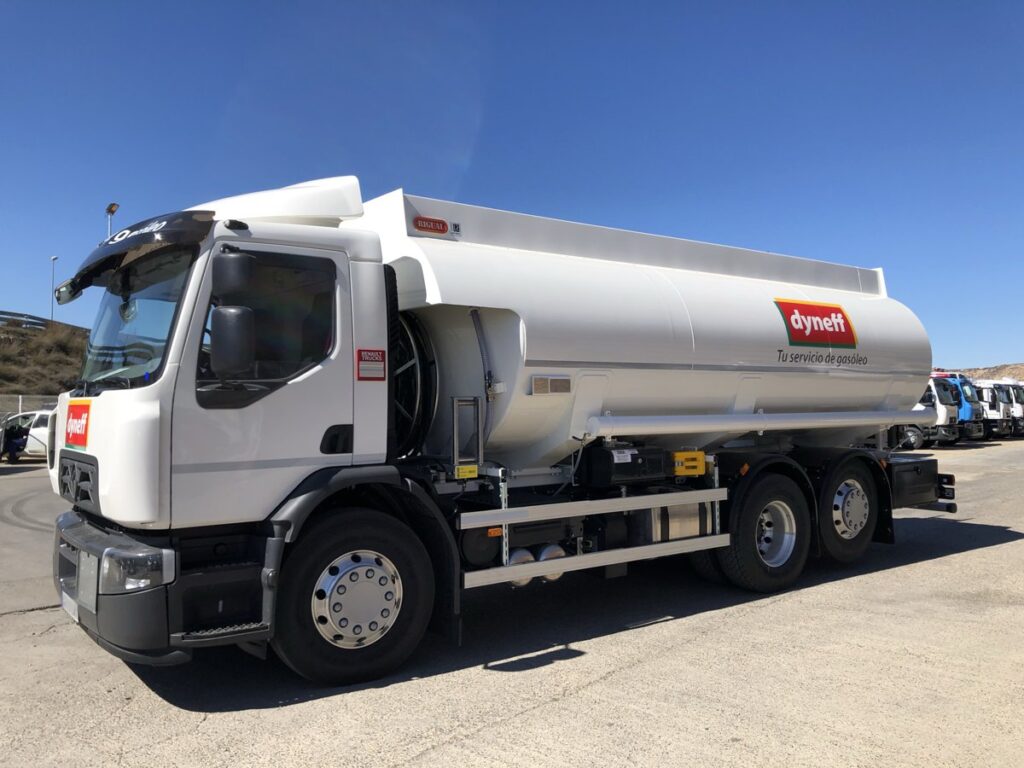

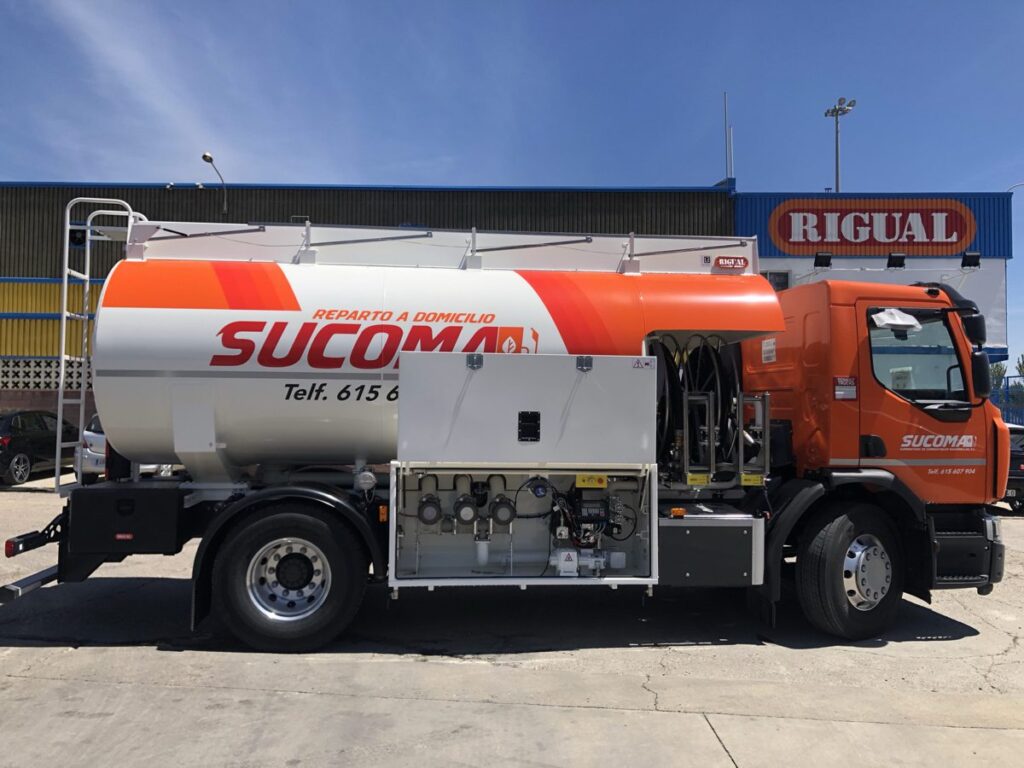

Cisterna Rigual de 20000 litros para reparto de gas-oil y gasolinas

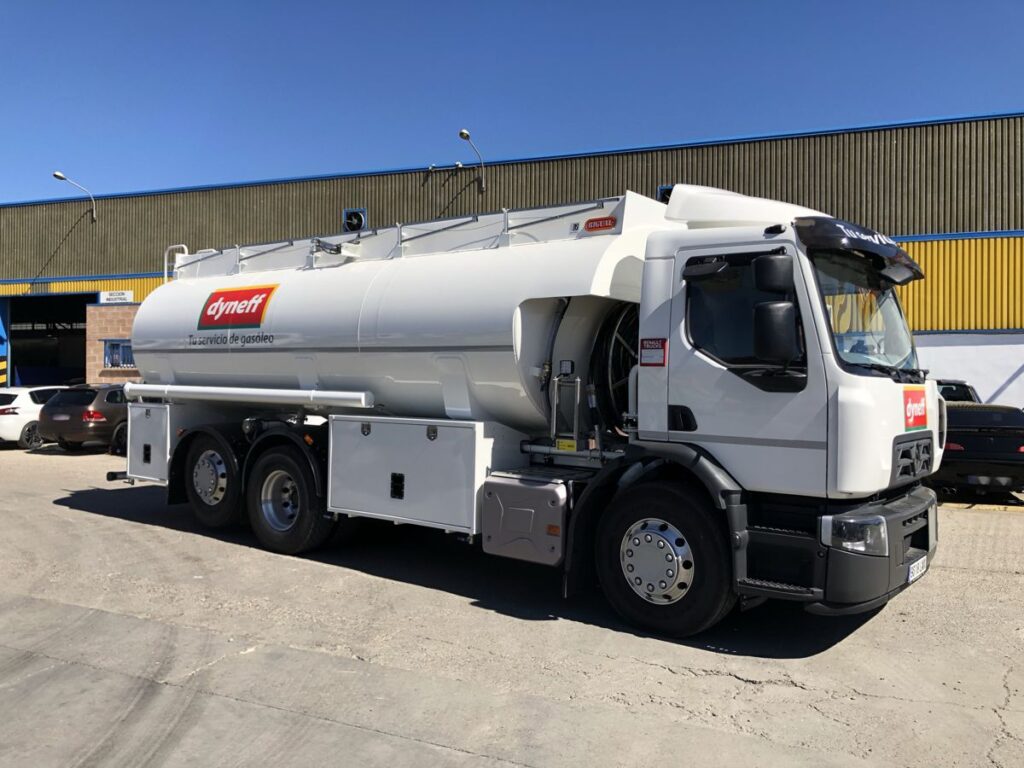

Cisterna Rigual de 20000 litros para reparto de gas-oil y gasolinas sobre chasis

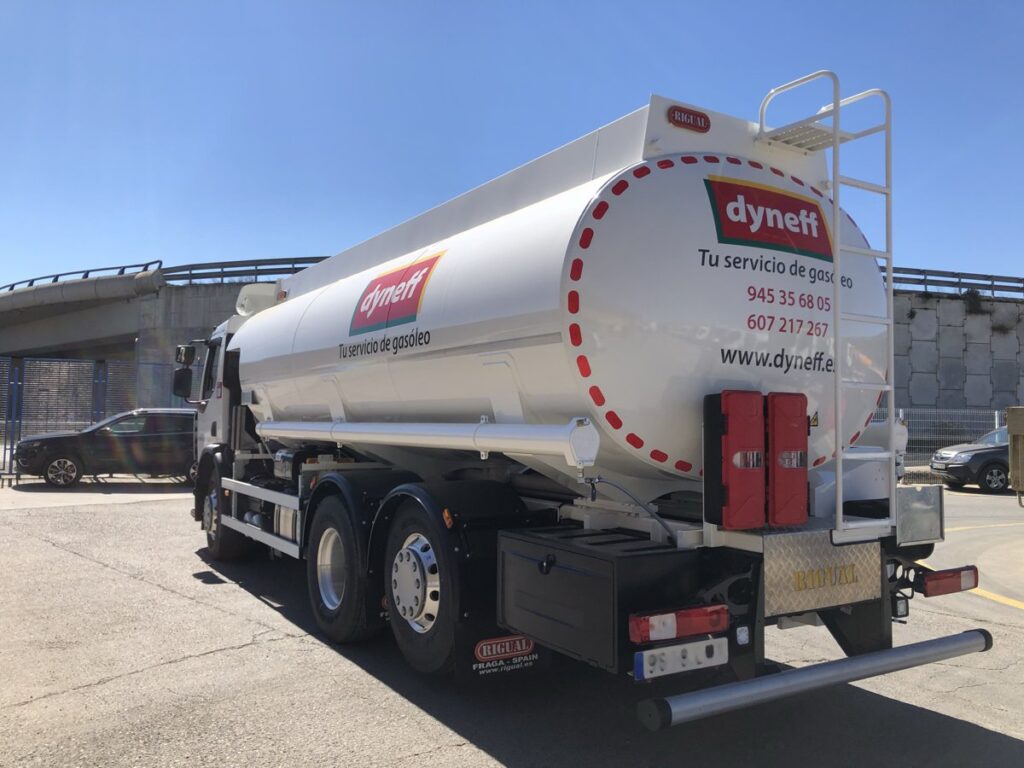

Cisterna Rigual de 20000 litros para de gasoils y gasolinas sobre chasis renault

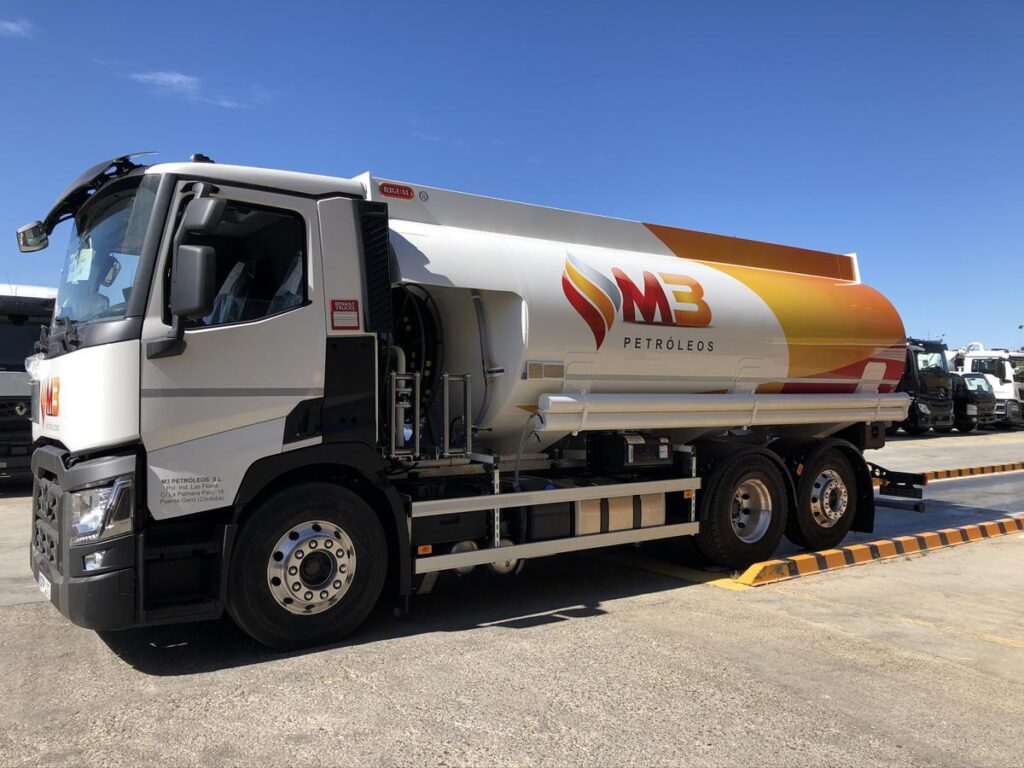

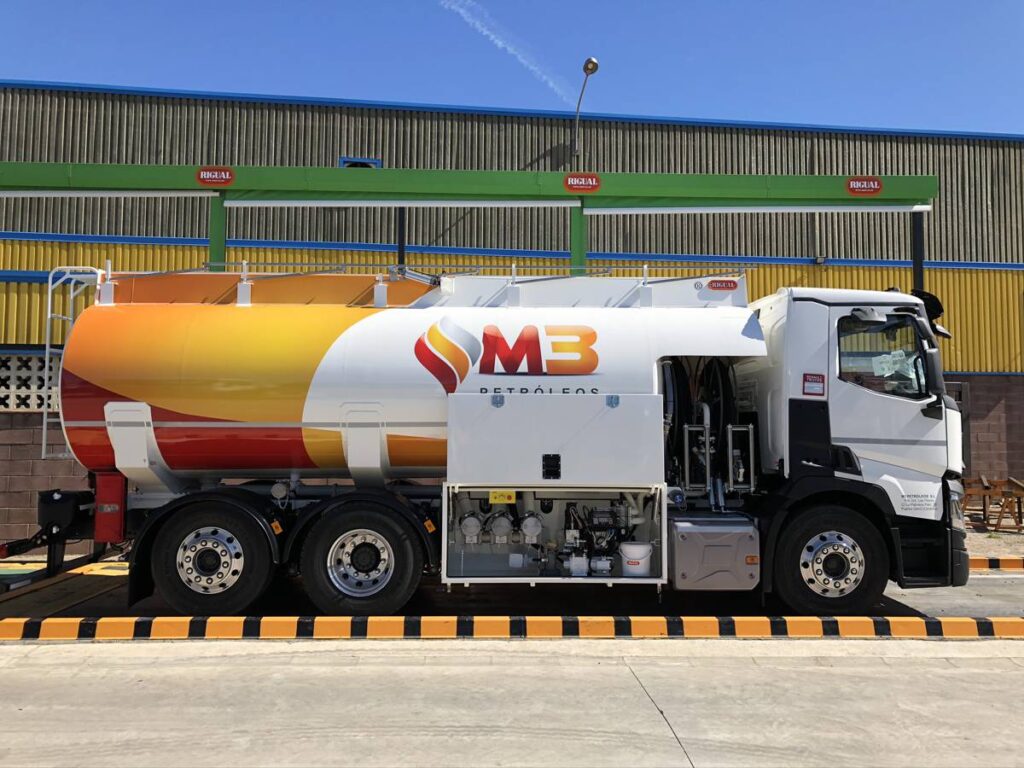

Cisterna Rigual de 20000 litros para de gas-oil y gasolinas sobre chasis con doble devanadera en capilla delantera

Cisterna Rigual de 20000 litros para de gasoil y gasolinas sobre chasis con doble devanadera en capilla delantera

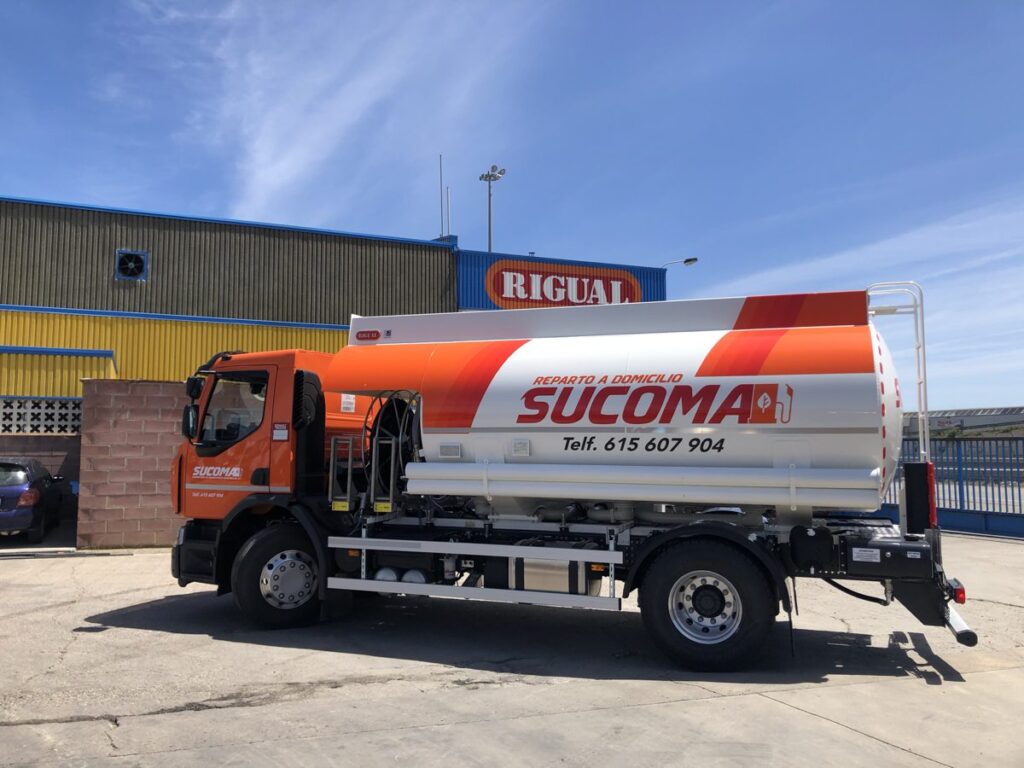

Cisterna Rigual de 14000 litros para el reparto de gas-oil y gasolinas

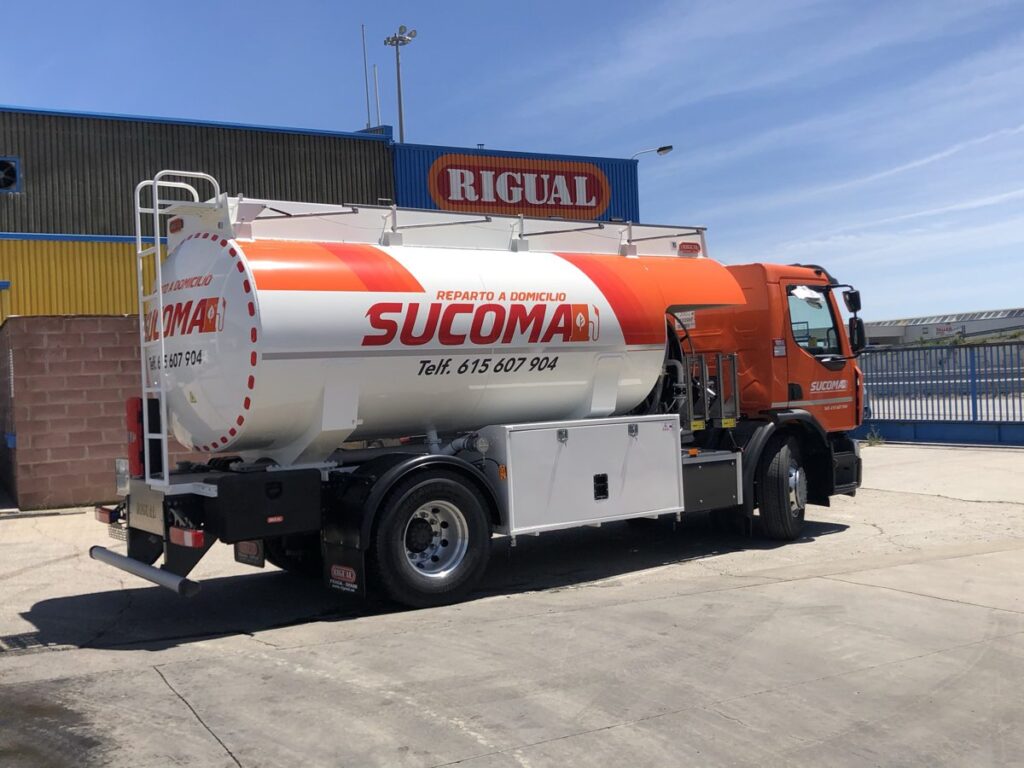

Cisterna Rigual de 14000 litros para el reparto de gasoil y gasolinas

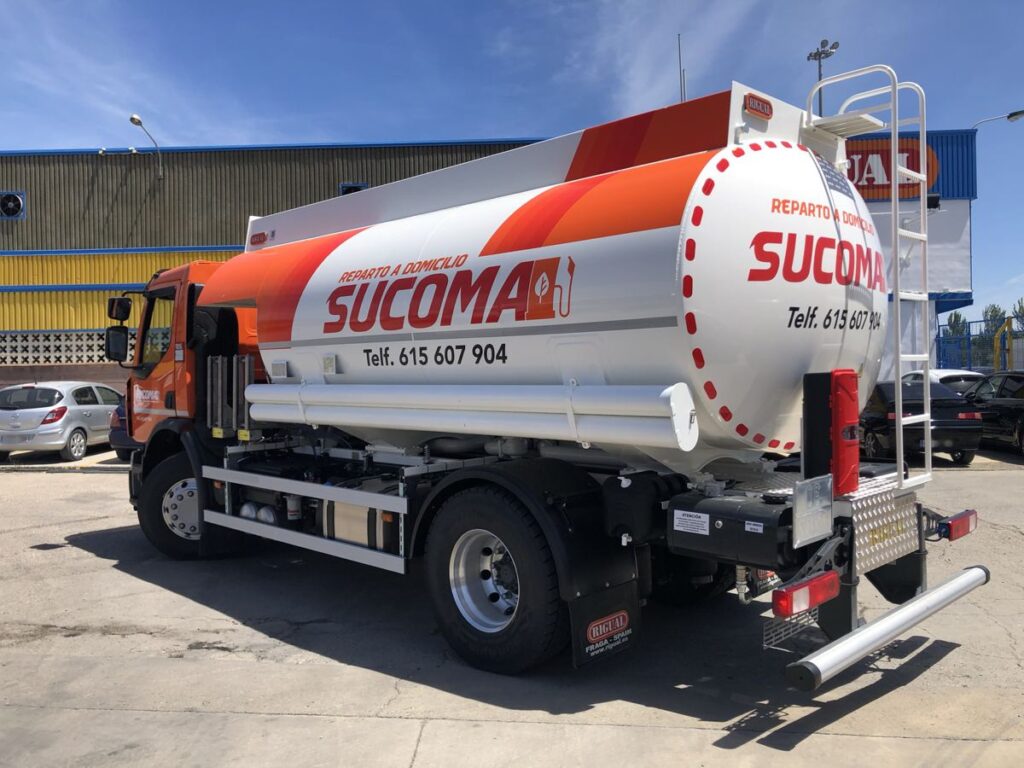

Cisterna Rigual de 14000 litros para gas-oil y gasolinas

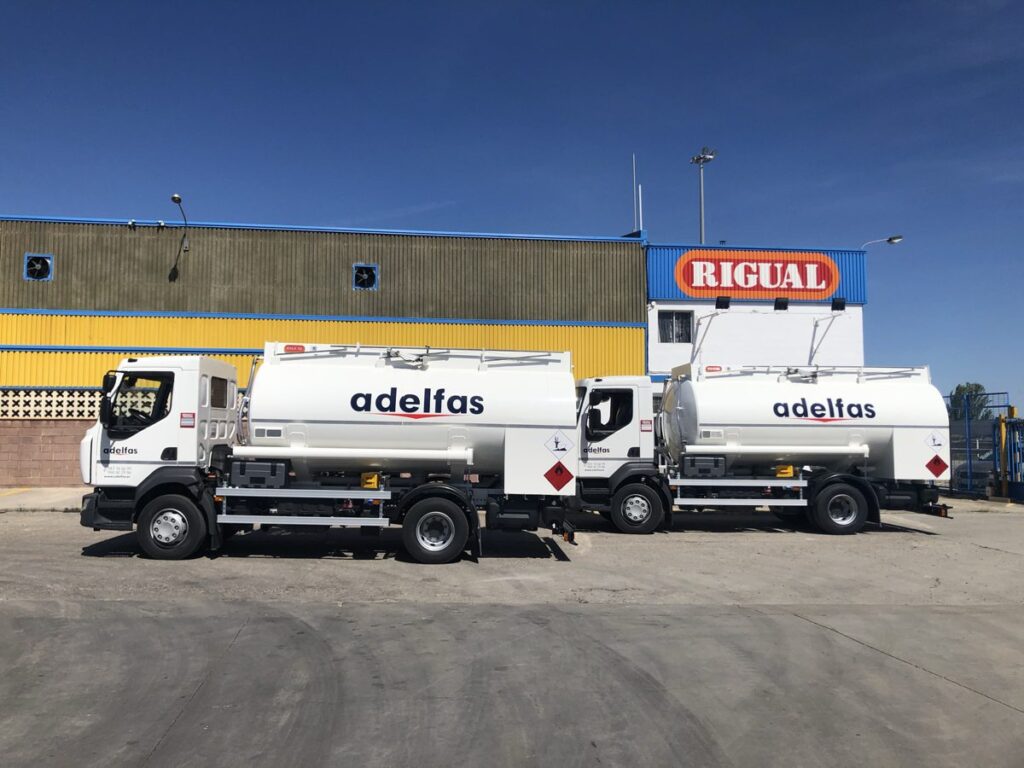

Cisterna Rigual de 11000 litros para gasoils y gasolinas sobre chasis

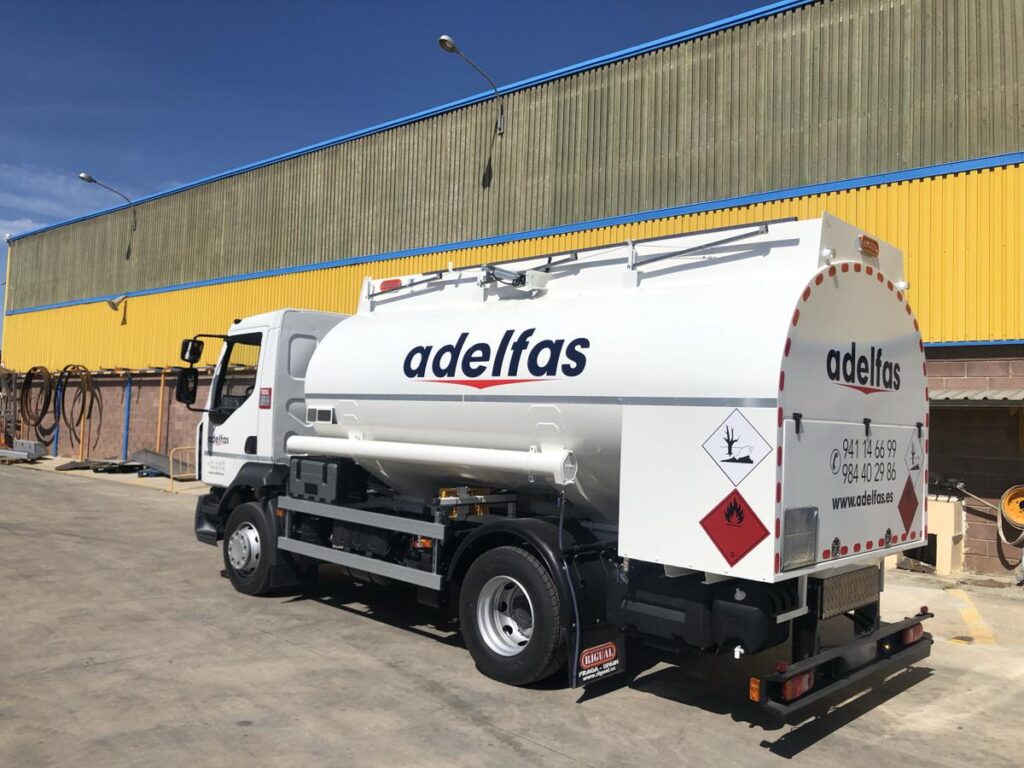

Cisterna Rigual de 11000 litros para gas-oil y gasolinas sobre chasis

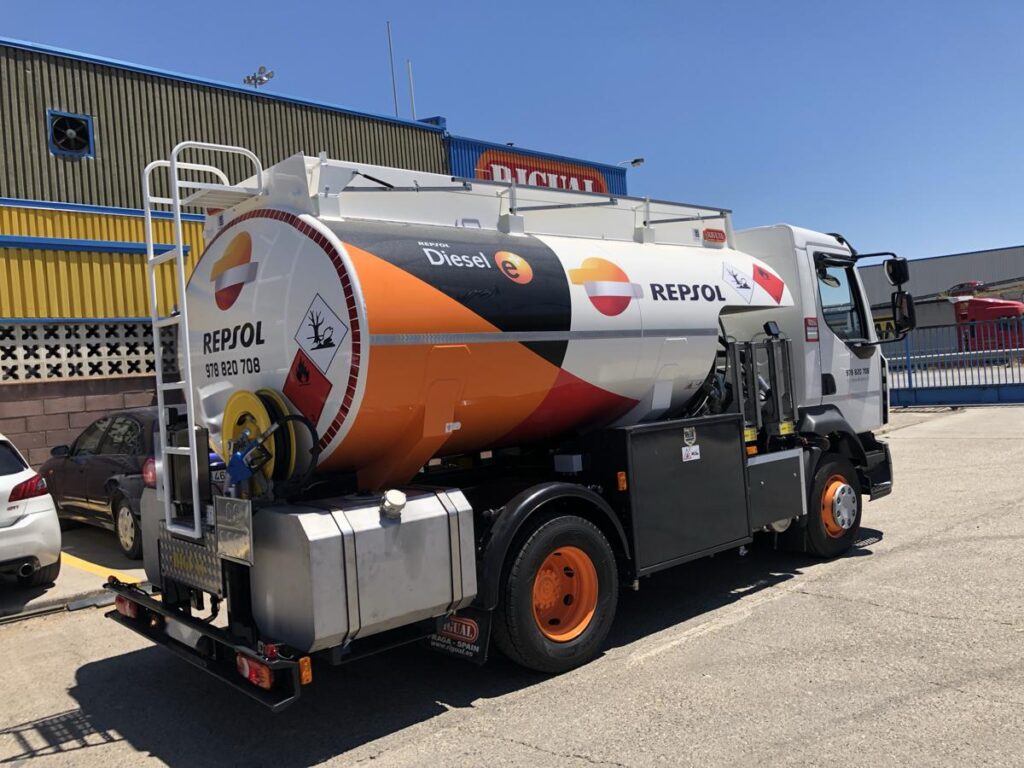

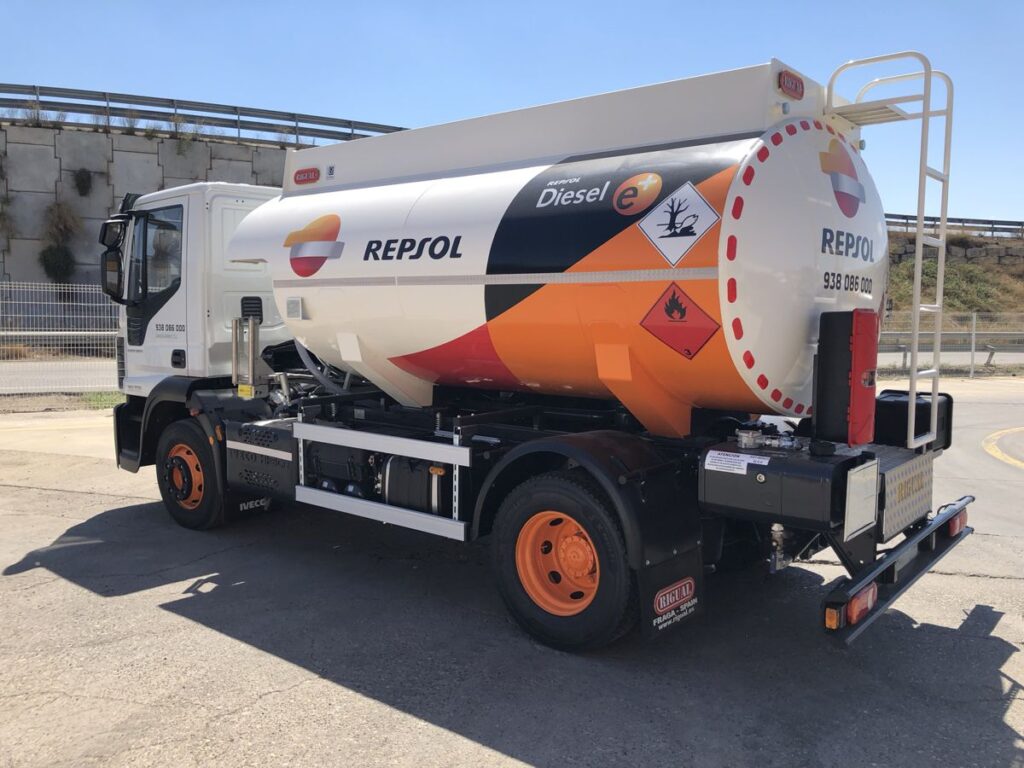

Cisterna Rigual de 9000 litros para el transporte de gasoleos y depositos de adblue

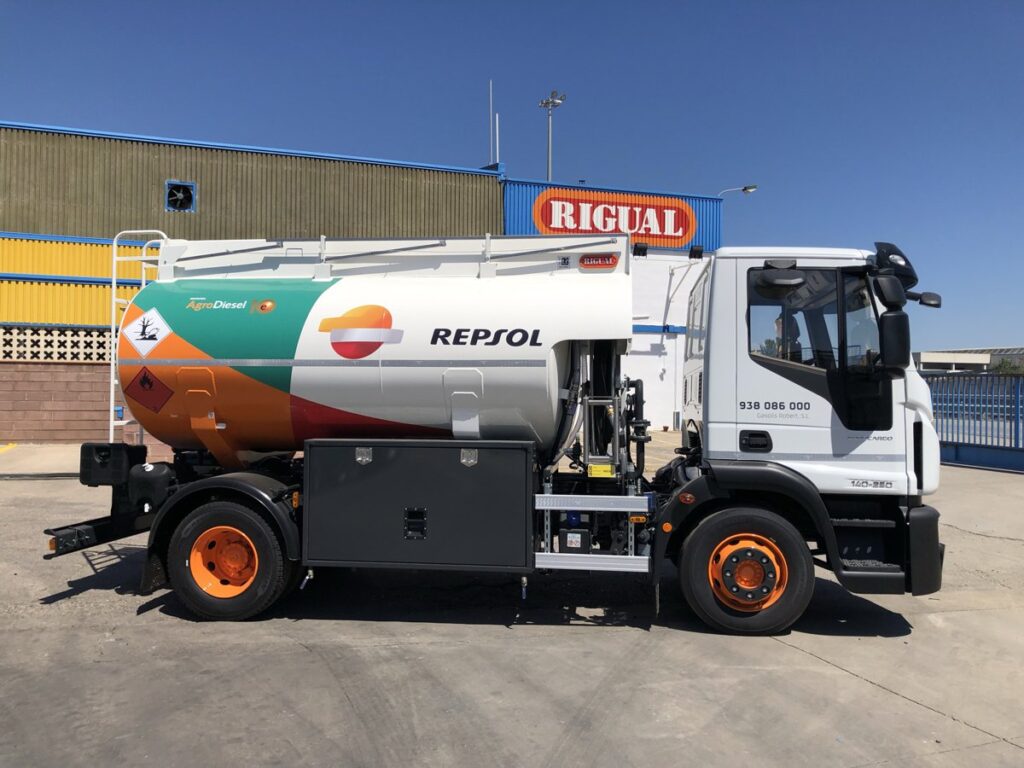

Cisterna Rigual de 9000 litros para el transporte de gas-oil y depositos de adblue

Cisterna Rigual de 9000 litros con capilla delantera para el transporte de gasoleos y depositos de adblue

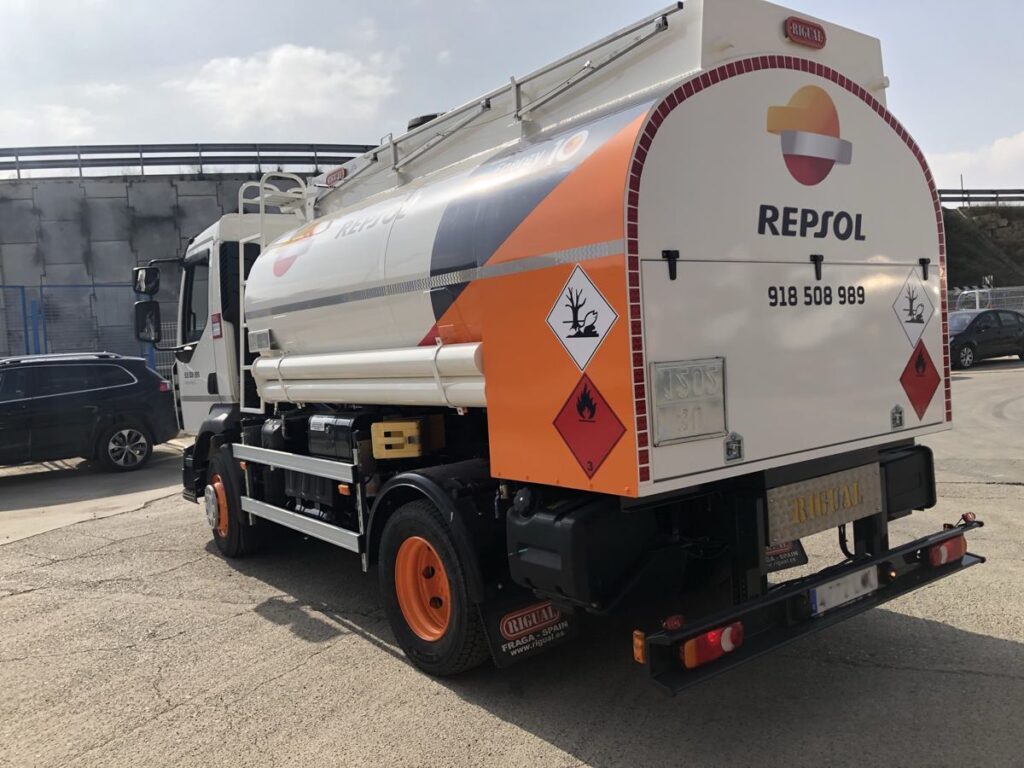

Cisterna Rigual de 8000 litros para reparto carburante de con capilla trasera

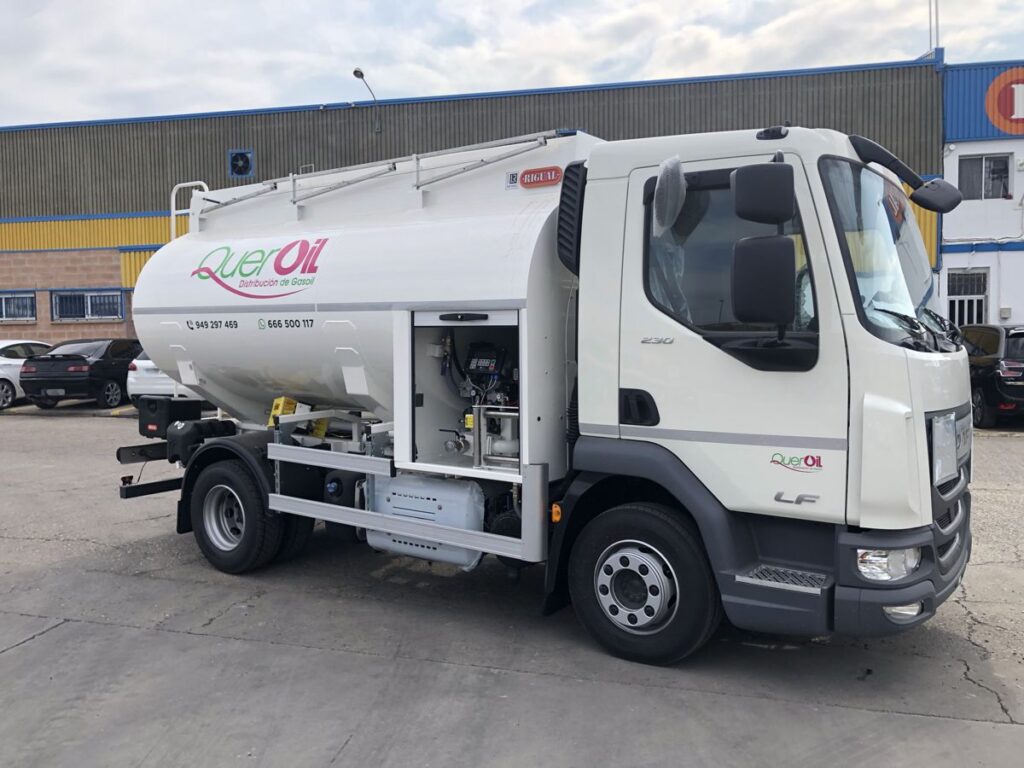

Cisterna Rigual de 7500 litros para el reparto de Gas-oil

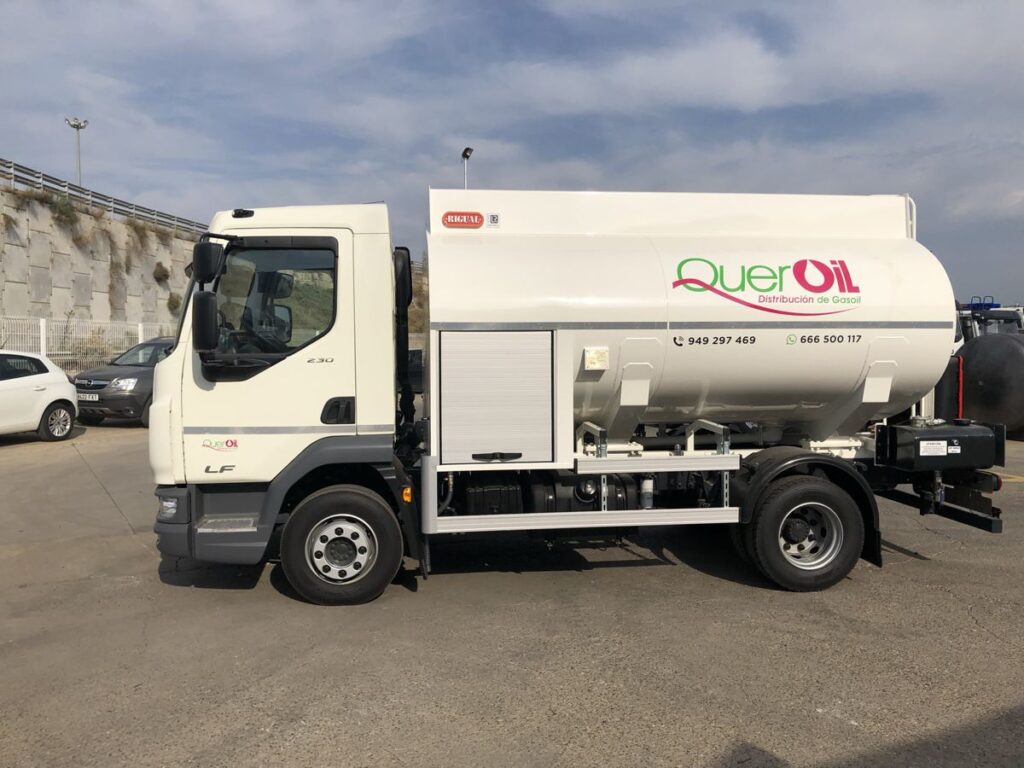

Cisterna Rigual de 7500 litros para el reparto de Gasoil

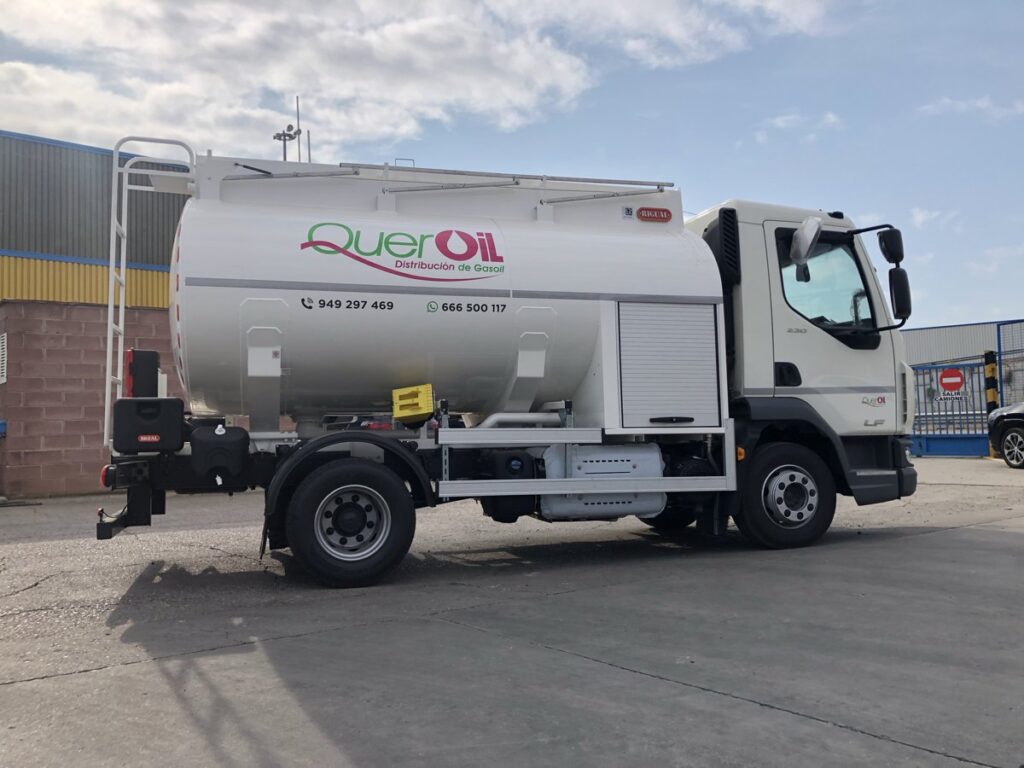

Cisterna Rigual de 7500 litros para el reparto de Gasoi y capilla delantera

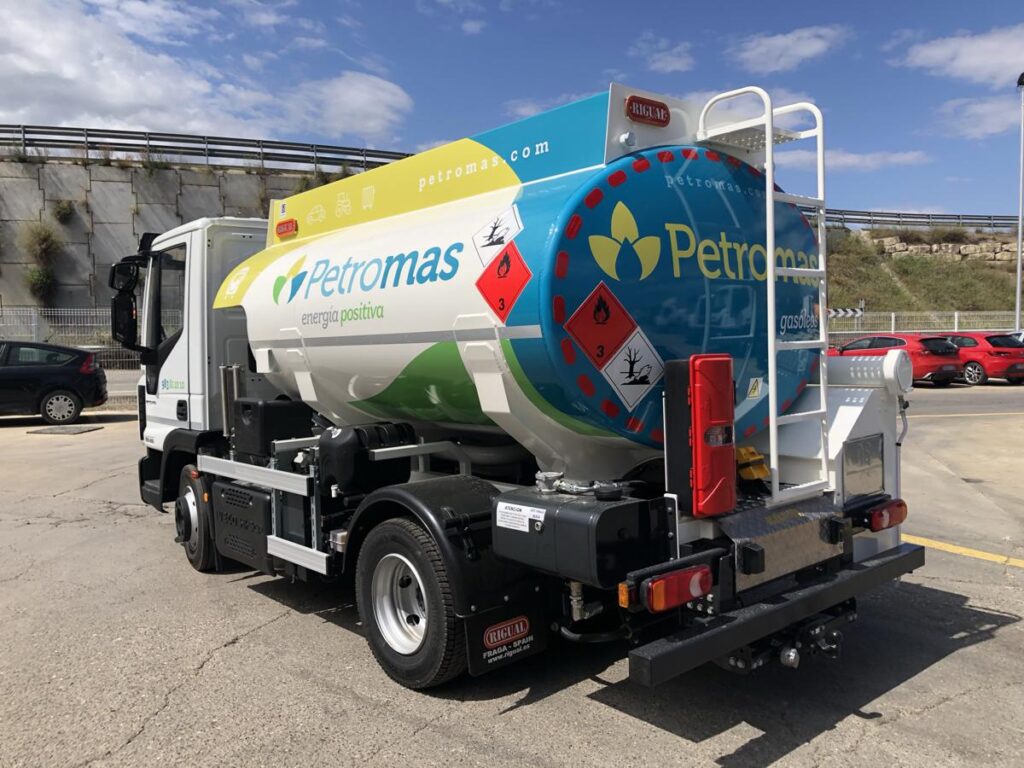

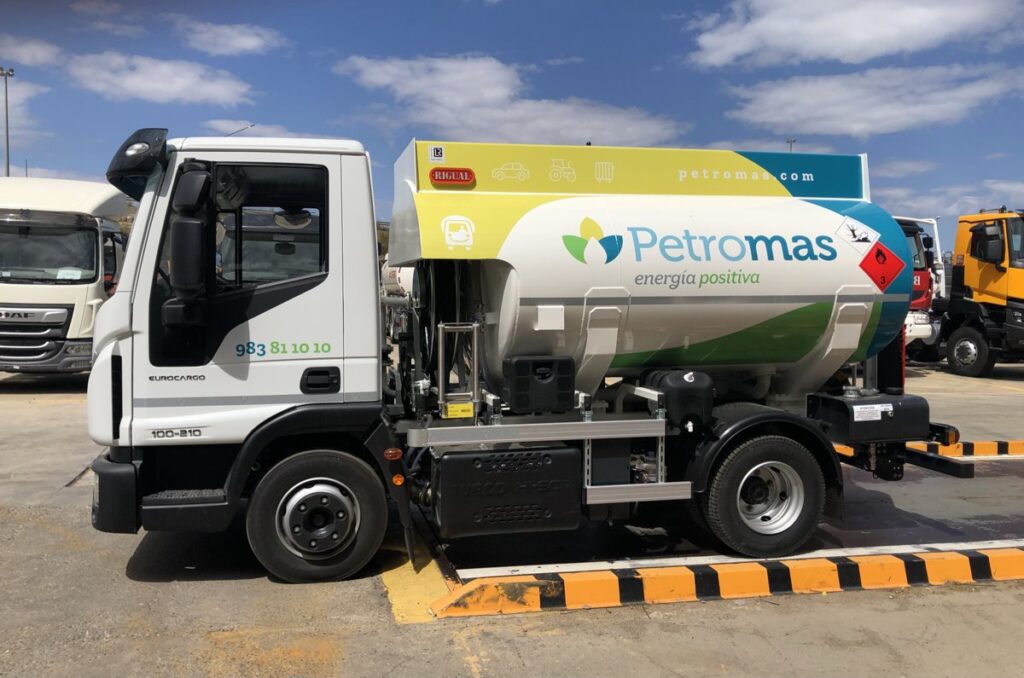

Cisterna Rigual de 6000 litros para el reparto de Gas-oil y con cargas Exolum

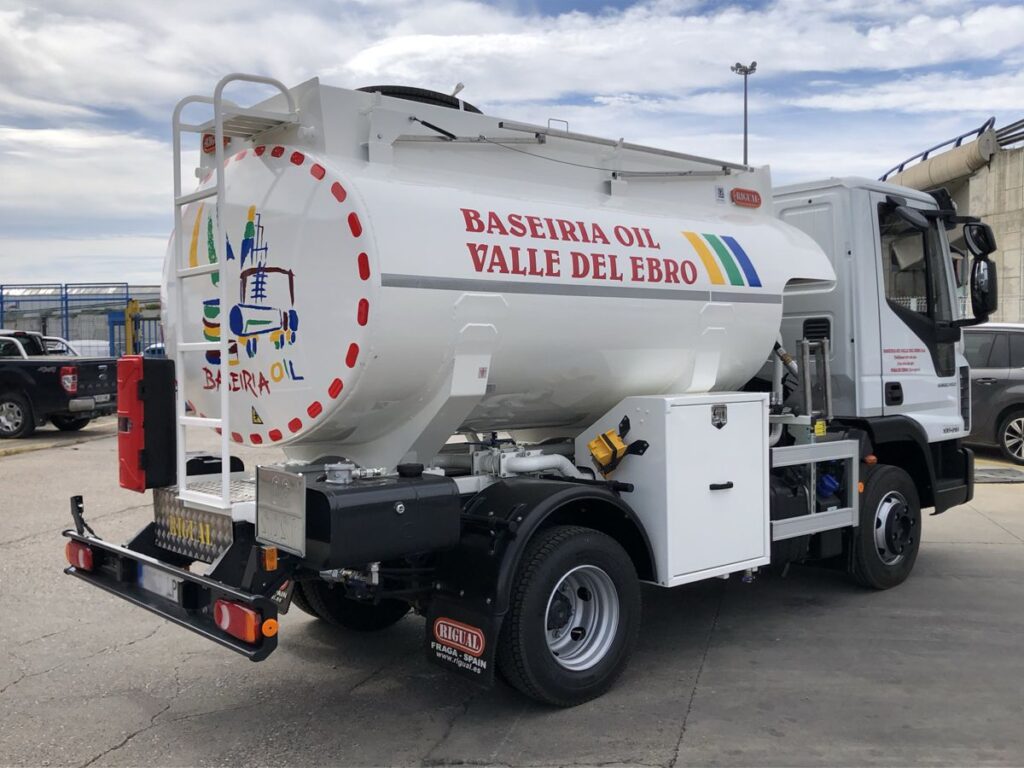

Cisterna Rigual de 6000 litros para el reparto de Gas-oil

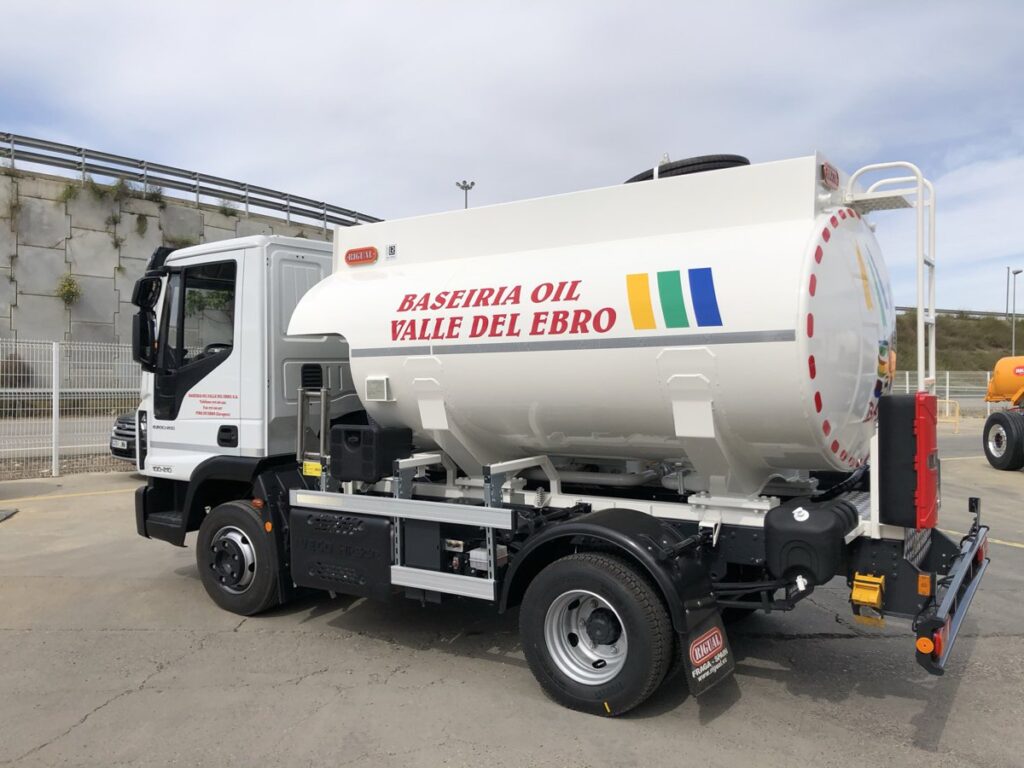

Cisterna Rigual de 6000 litros para el reparto de Gasoil

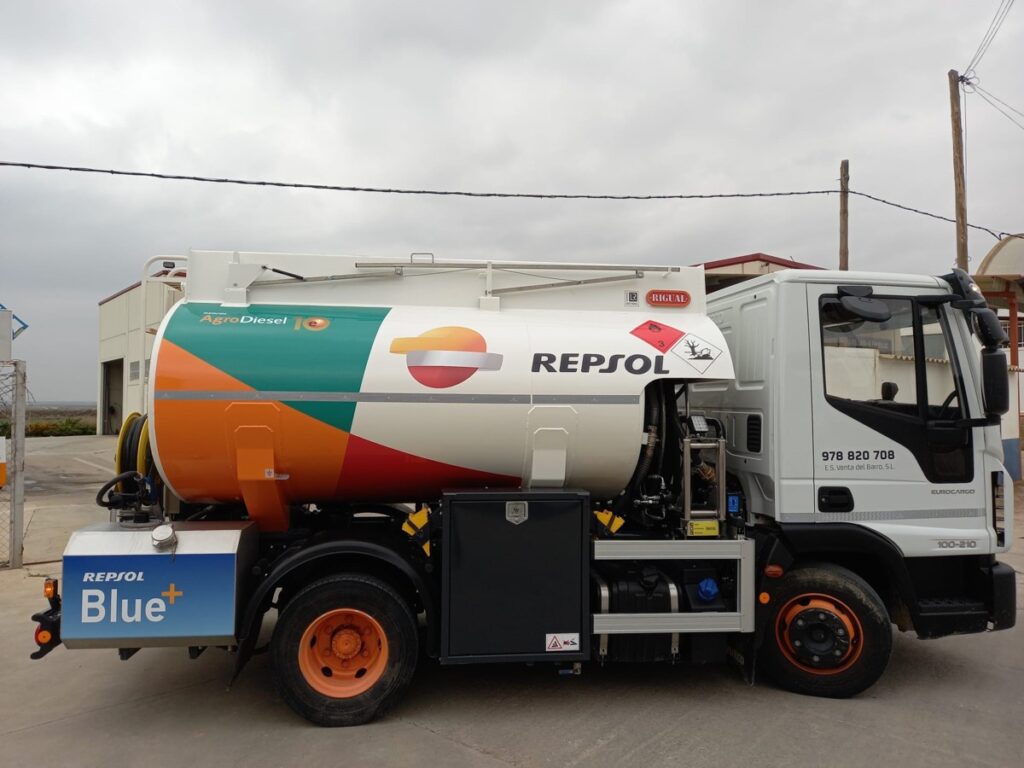

Cisterna para carburante rigual de 6000 litros devanadera delantera y adblue

Cisterna de 6000 litros Rigual para el reparto de Gas-oil y con cargas Exolum

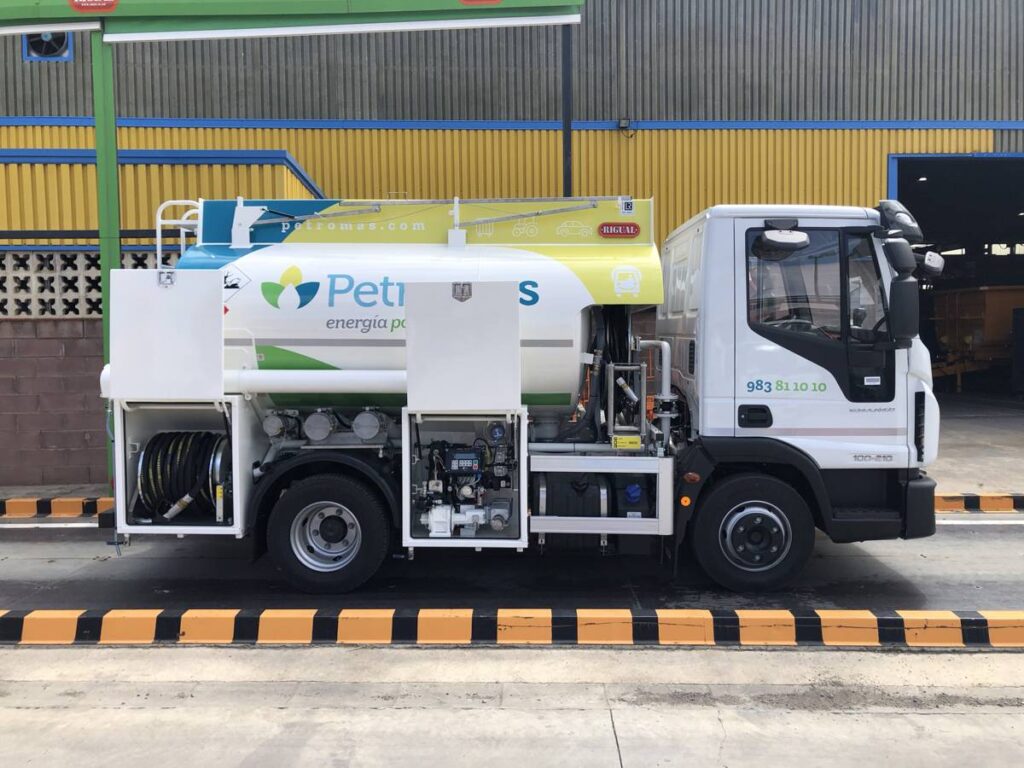

Cisterna de 6000 litros Rigual para el reparto de Gasoil y con cargas Exolum

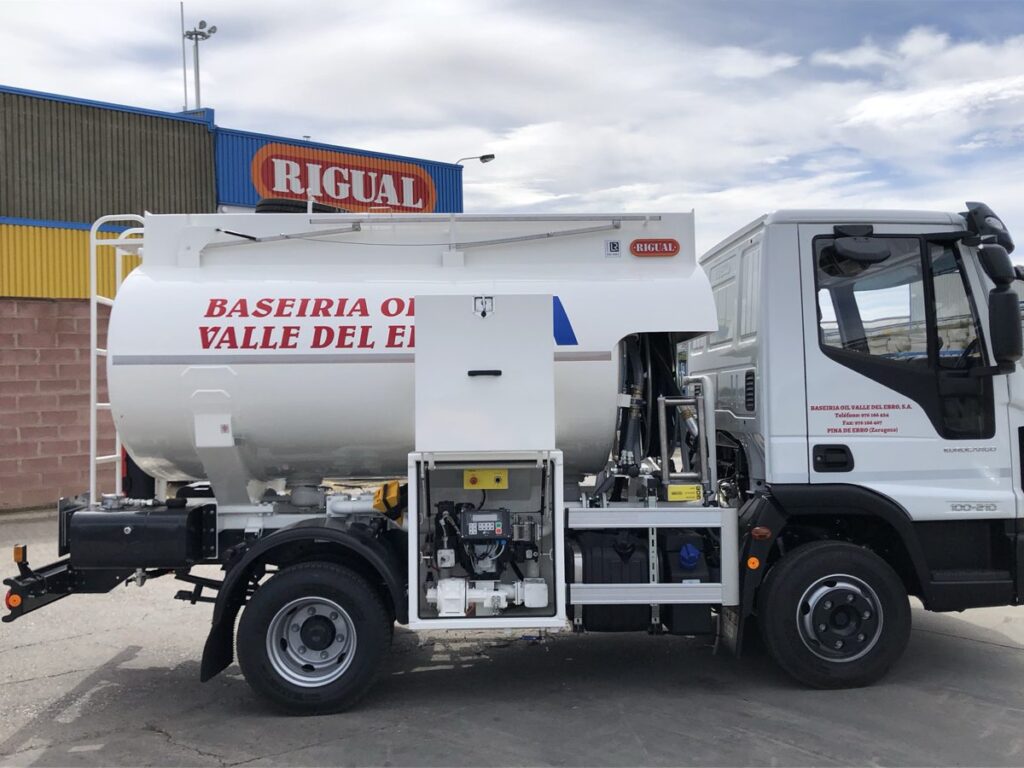

Cisterna de 6000 litros Rigual para el reparto de Gasoil

Cisterna 14000 litros Rigual para el reparto de gas-oil y gasolinas

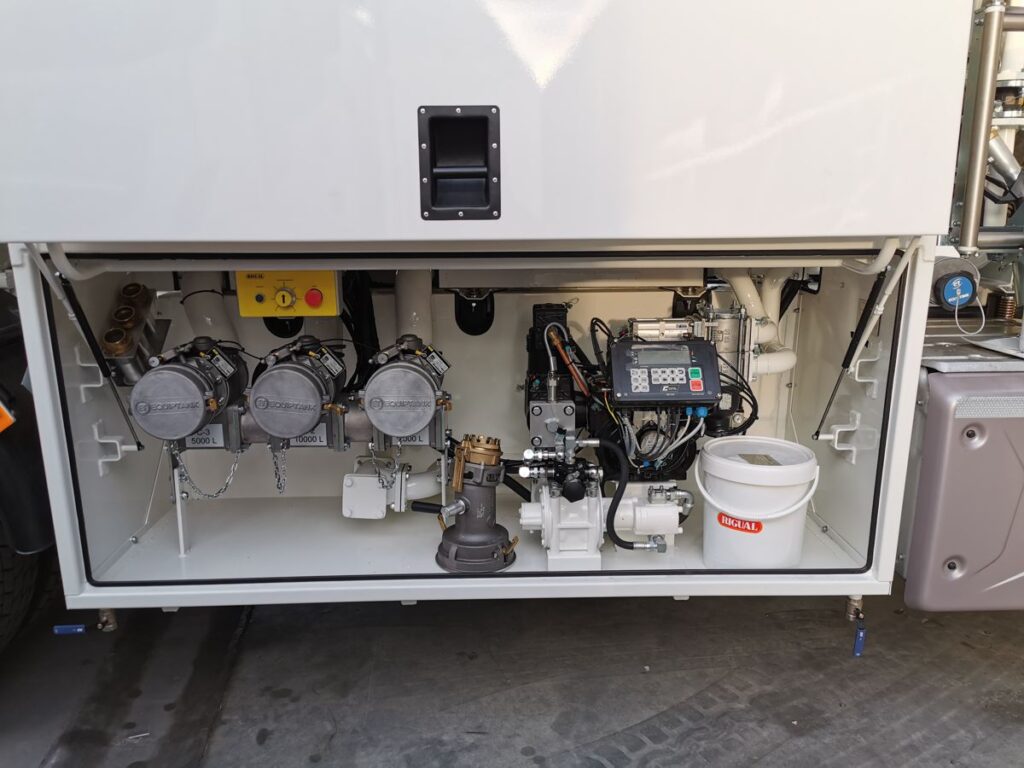

Cargas Exolum para camión de tres compartimentos

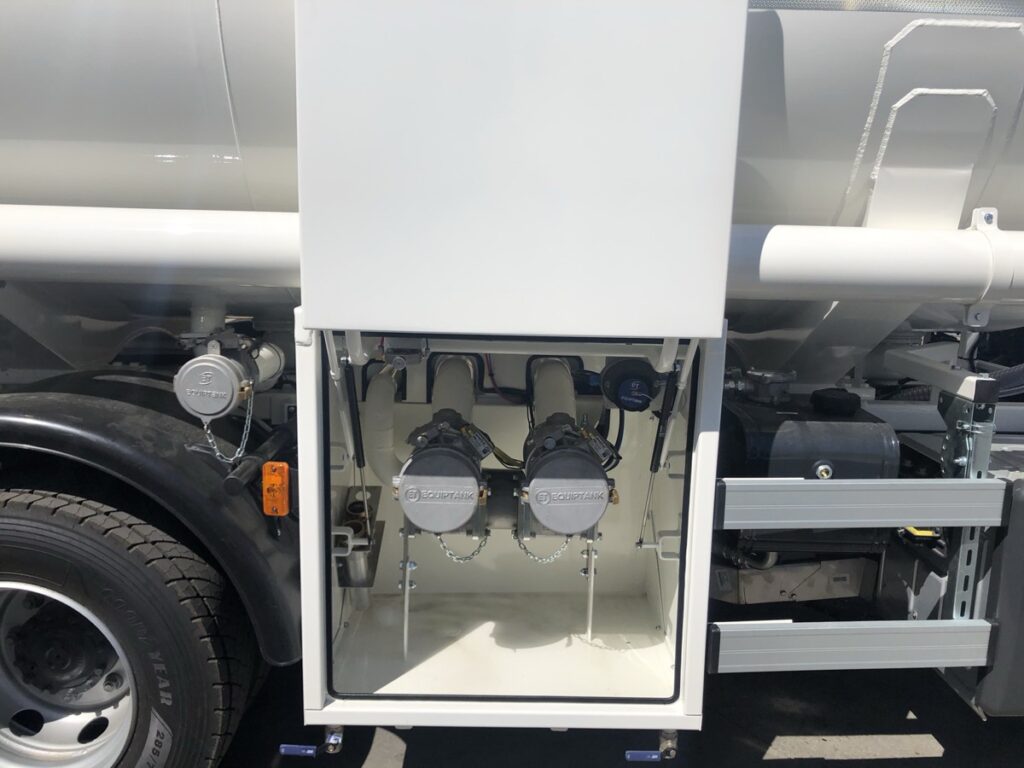

Cargas Exolum en camión de reparto de Gas-oil

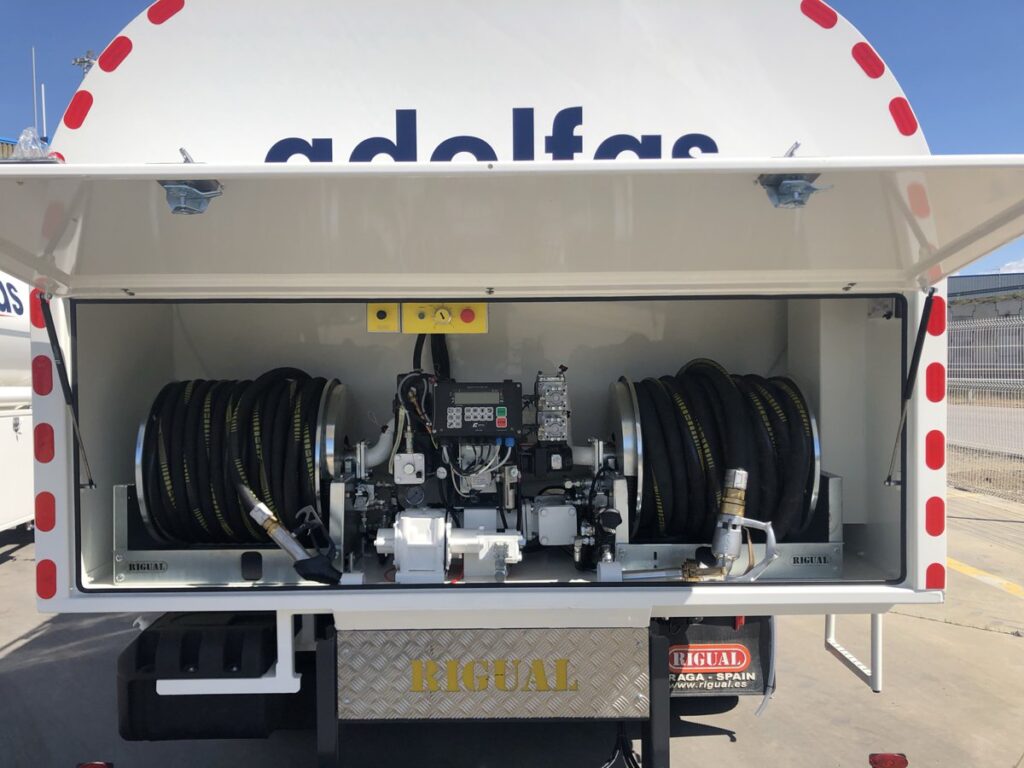

Equipo de dos devanaderas en capilla trasera

Product
advantages

High manoeuvrability.
Versatility of configuration and ease of driving.
The tanks in this range are very compact and designed for use in urban areas with narrow streets.
Depending on the chosen chassis and its wheelbase, the layout and number of winders as well as the type of load (type CLH or higher) are selected.
As with the entire Rigual range, there are a multitude of options to customise the equipment to suit the customer's needs.

High manoeuvrability and ease of driving.
Configuration versatility.
The tanks in this range are compact and designed for use in urban areas close to the customer's base to optimise short routes.
Depending on the chosen chassis and its wheelbase, the layout and number of winders as well as the type of load (type CLH or higher) are selected.
As with the entire Rigual range, there are a multitude of options to customise the equipment to suit the customer's needs.

Good manoeuvrability and driveability.
Configuration versatility.
The tanks in this range are of intermediate capacity and are designed for use in urban areas close to the customer's base as well as for optimising short and medium routes.
Depending on the chosen chassis and its wheelbase, the layout and number of winders as well as the type of load (type CLH or higher) are selected.
As with the entire Rigual range, there are a multitude of options to customise the equipment to suit the customer's needs.

Good manoeuvrability and driveability.
Configuration versatility.
The tanks in this range are characterised by their high capacity and are designed for use in urban areas close to the customer's base as well as for optimising medium and long routes.
Depending on the chosen chassis and its wheelbase, the layout and number of winders as well as the type of load (type CLH or higher) are selected.
As with the entire Rigual range, there are a multitude of options to customise the equipment to suit the customer's needs.

Manoeuvrability and driveability.
Configuration versatility.
The cisterns in this range stand out for their very high capacity, designed for
to circulate in urban areas with wide avenues as well as to optimise long routes and to serve consumers with high-capacity depots.
Depending on the chosen chassis and its wheelbase, the layout and number of winders as well as the type of load (type CLH or higher) are selected.
As with the entire Rigual range, there are a multitude of options to customise the equipment to suit the customer's needs.
