RIGUAL mixed suction-impulsion tanks are specially designed for the cleaning and maintenance of sewage networks, industrial infrastructures and pipeline networks.

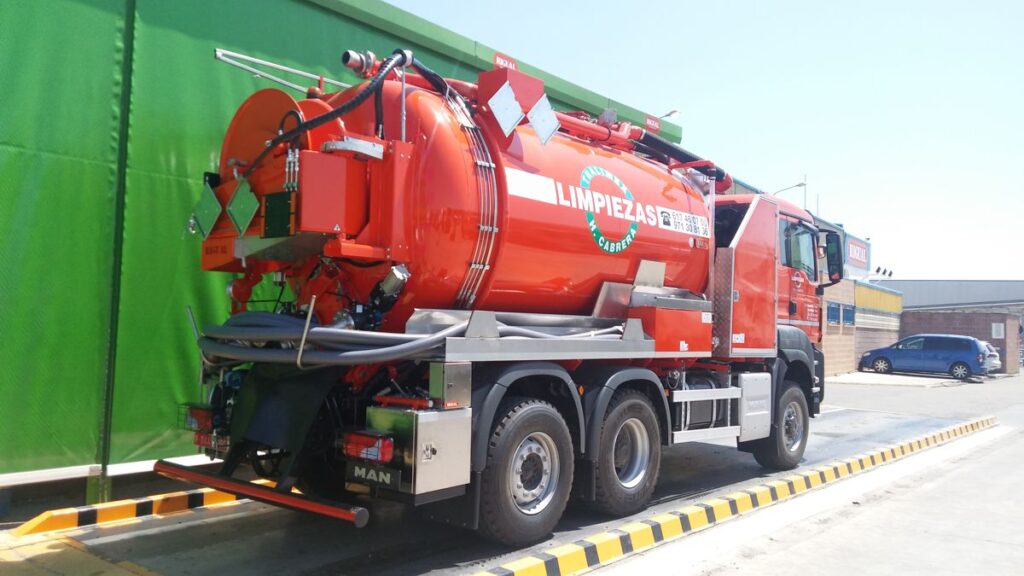

The tank is divided into two compartments (clean water compartment and sludge compartment) whose capacities are defined by the customer depending on the type of work.
Our intelligent management technology (Rigual Smart) is the most advanced on the market and offers optimised and automatic electronic management of the operation of the equipment, both drive and suction, which implies significant fuel savings, minimisation of mechanical wear of the equipment, greater ease of operation of the components as well as much greater safety in the handling of the equipment and reduction of noise emissions.
The design versatility covers a multitude of possibilities (movable partition, upper cassette, suction handle arm, etc.) in which, once again, our Rigual Smart system is the key to making the management of pressure and vacuum equipment and specific components extremely easy. In this way, an automatic and immediate adjustment of the equipment to the working conditions requested by the user is achieved.

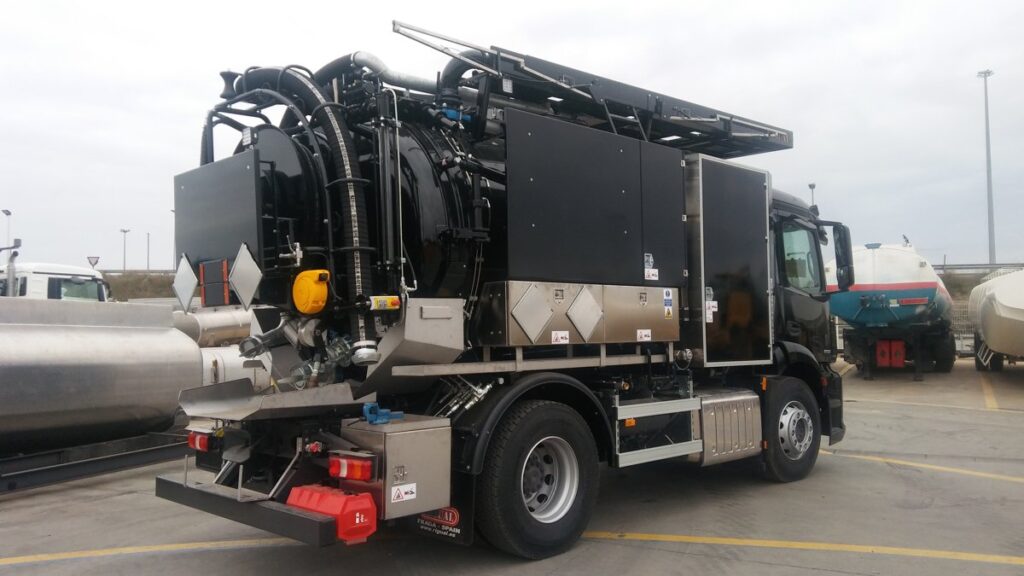

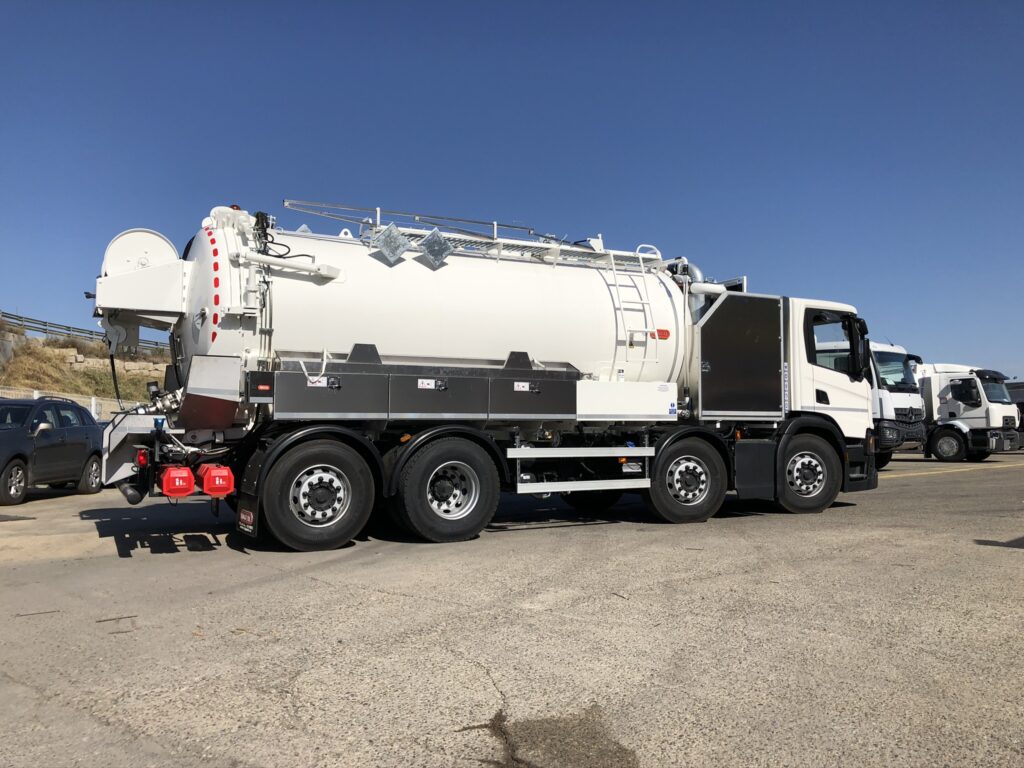

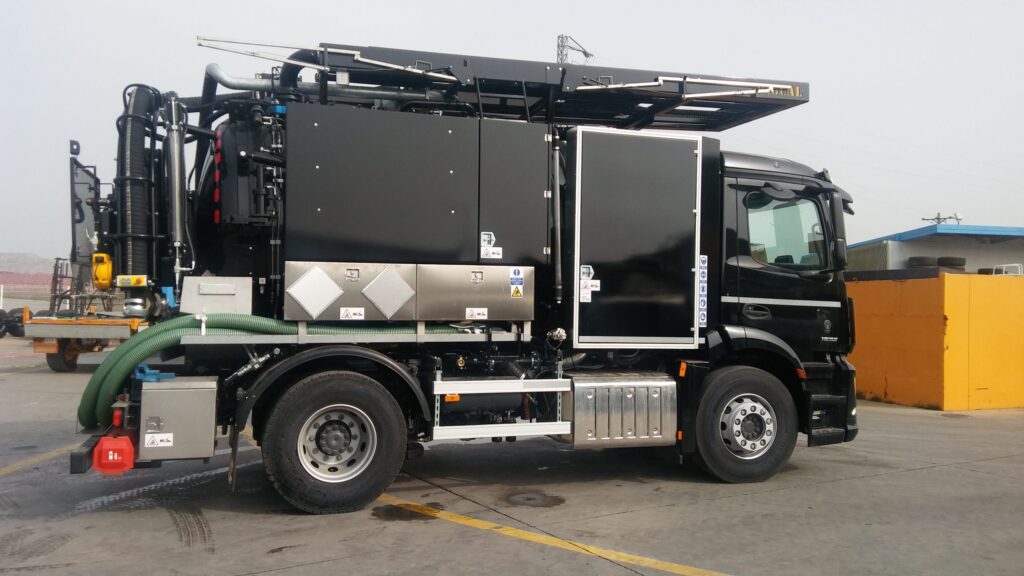

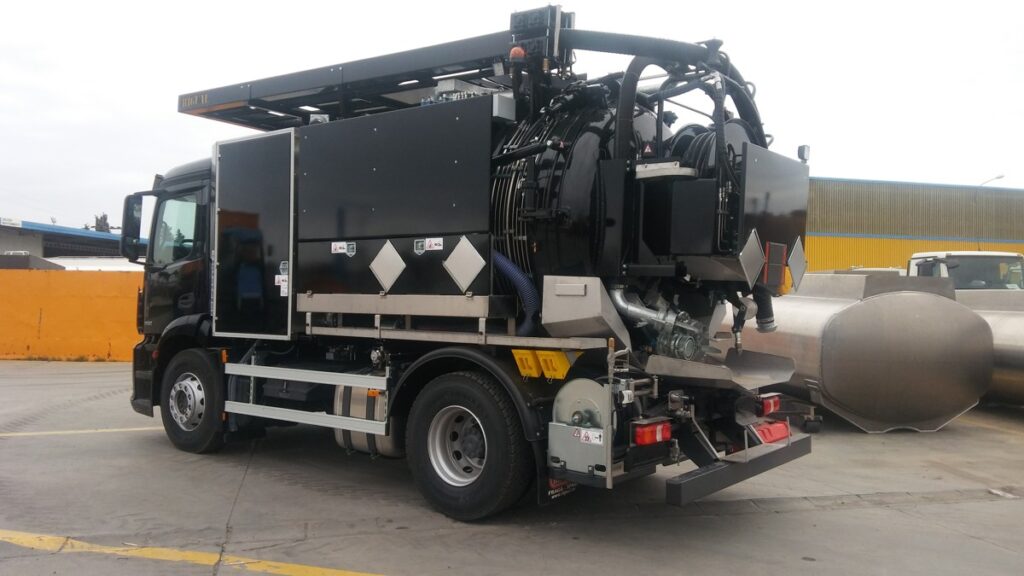

This equipment can be ADR certified for the transport of hazardous waste.
Available models
and technical characteristics
- Made of aluminium, carbon steel or stainless steel AISI 304 or 316.
- Tanks with a capacity of 1500 to 25000 litres with compartmentation to be defined according to the tonnage of the chassis and the customer's needs.
- Hydraulic full-opening rear door.
- Hydraulic system control: By PLC (Rigual Smart).
- Hydraulically operated folding top reel.
- Hydraulic or manual auxiliary reel. High penetration and high quality electrostatic painting.
- Own design of the tank and its main components.
- Wastewater recycling system.
- Movable partition wall.
- Manual opening rear door Ø 500/1000 mm diameter.
- Tipping tank.
- Suction tube or suction pole.
- Top reel.

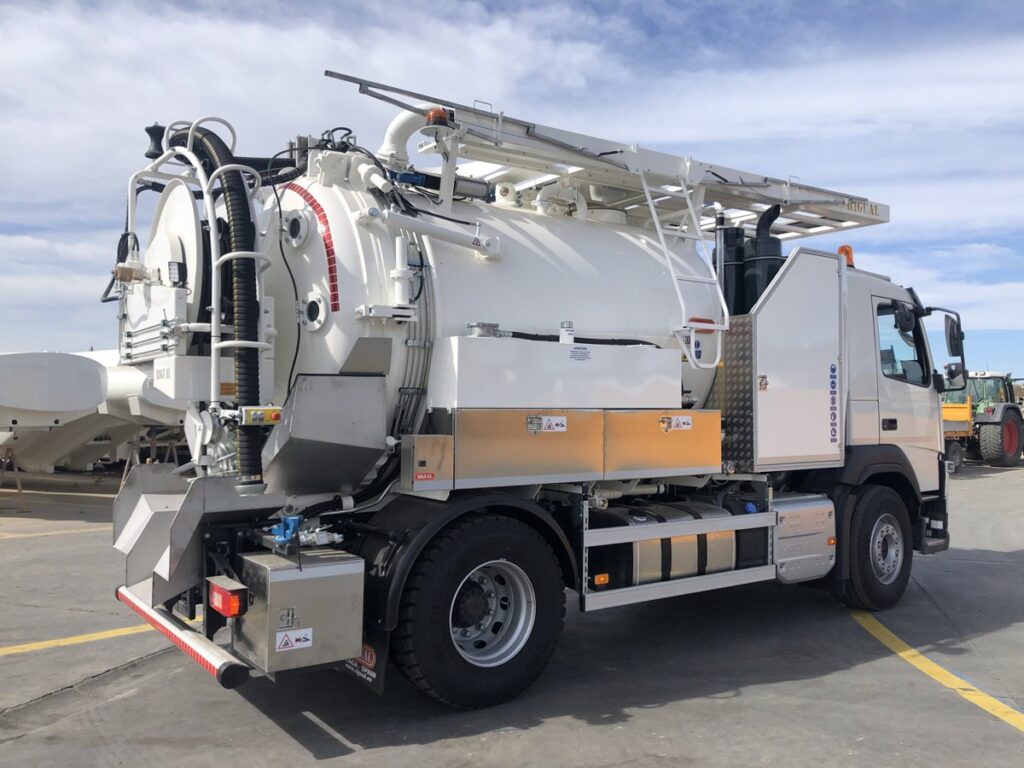

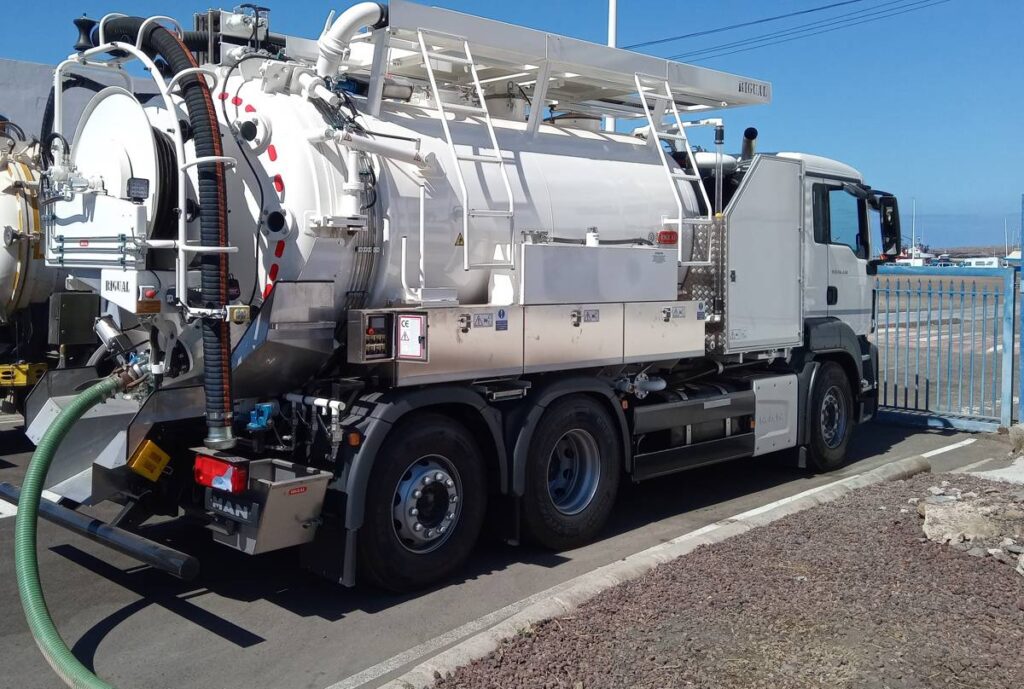

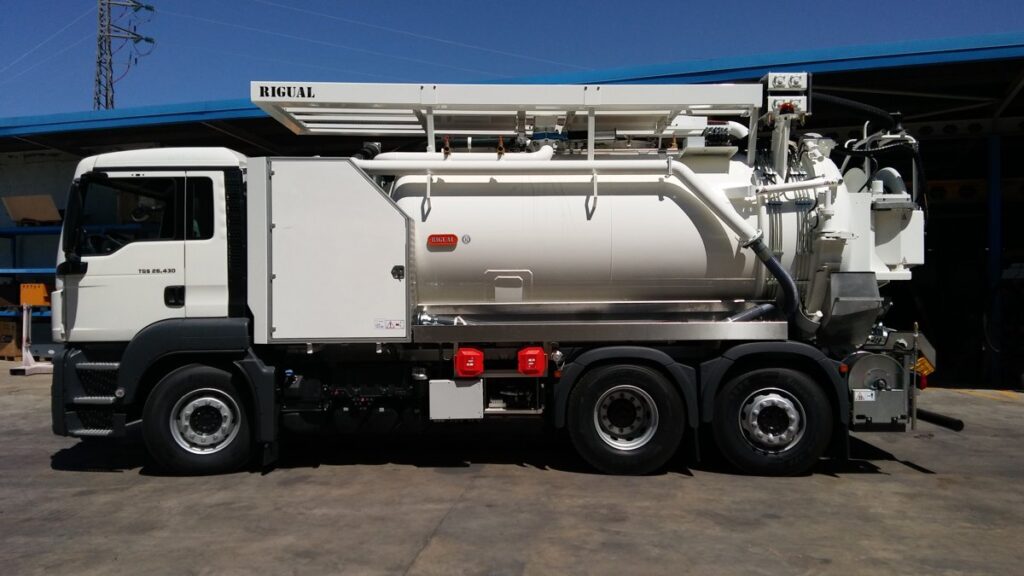

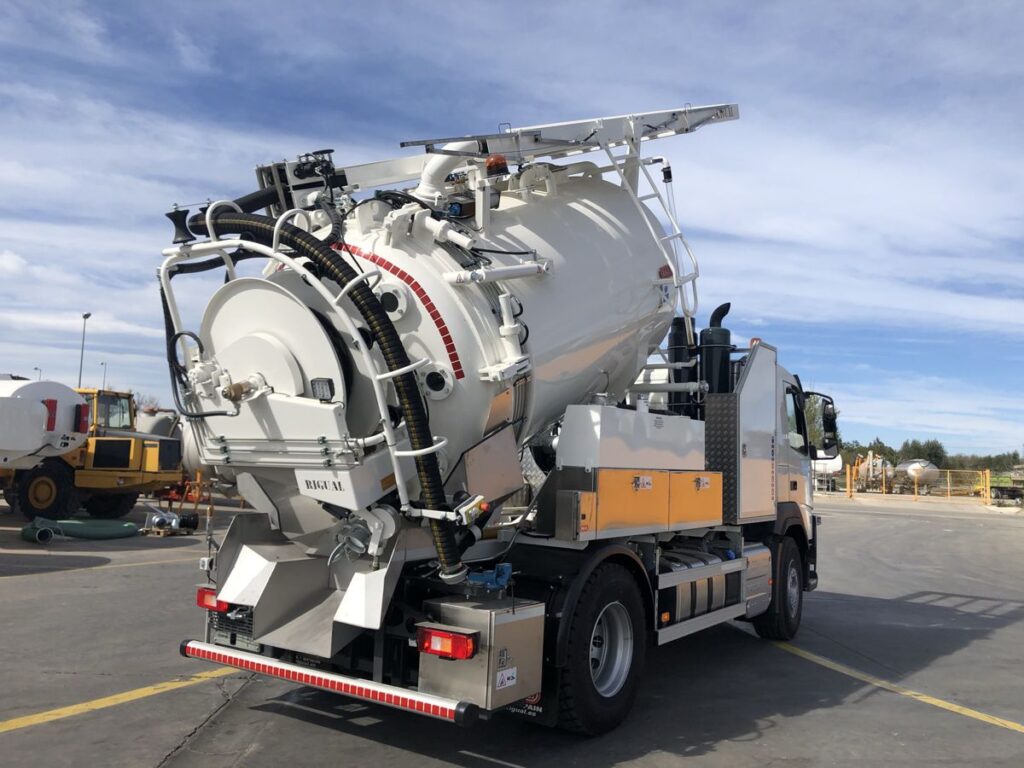

- Upper cassette.
- Remote control.
- Rigual IoT platform for remote equipment management.
- ADR AT or FL certification depending on the type of waste to be transported.

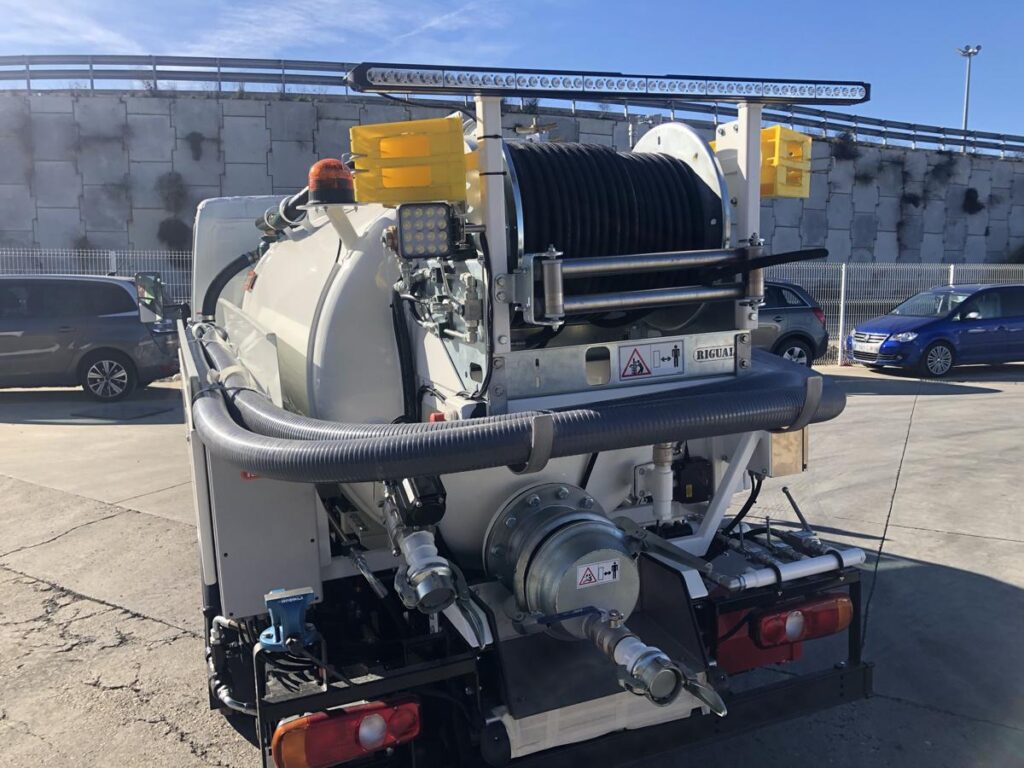

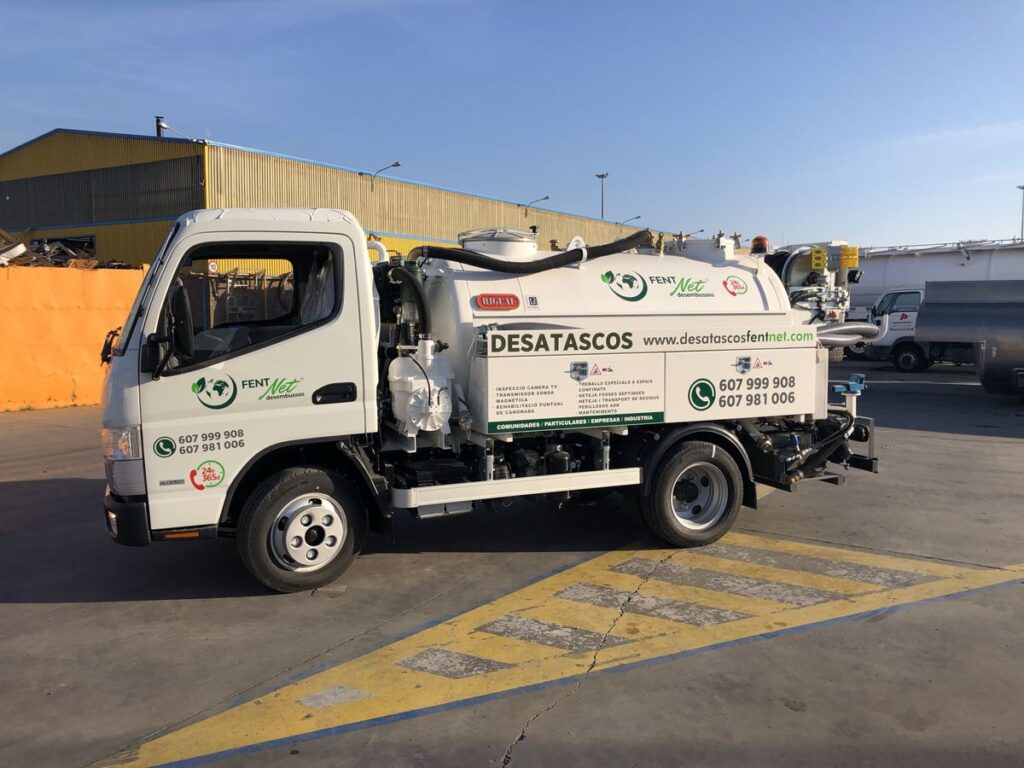

- MMA: from 6 to 9 Tn
- Capacity: from 3000 to 4500 litre
- Bowl material: Carbon steel, Stainless steel, Aluminium.
- High pressure pump: 105 l/min- 180 bar.
- Depressor: Vane; 6150 l/min (370 m3/h).
- Hydrostatic transmission: Transfer case drive.
- Hydraulic system control: By PLC (Rigual Smart).
- Reel: Fixed 50 m, Ø ½¨
- Remote control.
- Tipping tank.
- Folding reel.
- Hydraulic or manual full-opening tailgate.
- Fairing.
- Stainless steel drawers and hose reels.
- Air compressor.
- Direct-to-Alternate current inverter. 220 V socket.
- Communication between compartments
- Transfer pump.
- Reversing camera.
- Rigual IoT Platform.

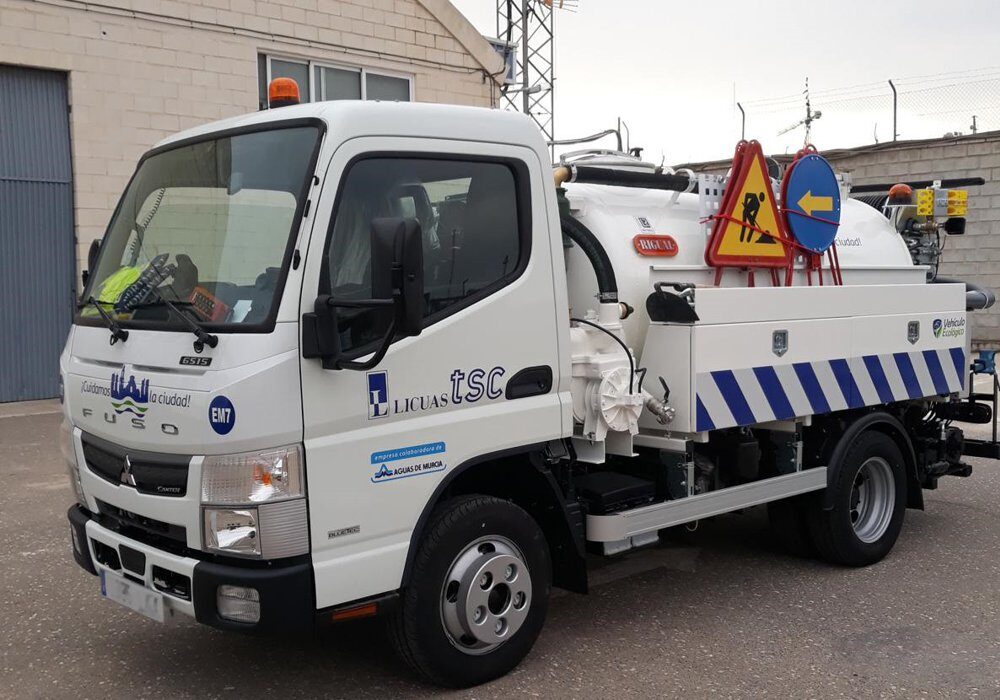

- MMA and chassis: 6 Tn and chassis FUSO 6S15.
- Approved pneumatic suspension.
- Capacity: from 3000.
- Bowl material: Carbon steel, Stainless steel, Aluminium.
- High pressure pump: 105 l/min- 180 bar.
- Depressor: Vane; 6150 l/min (370 m3/h).
- Hydrostatic transmission: Transfer case drive.
- Hydraulic system control: By PLC (Rigual Smart).
- Reel: Fixed 50 m, Ø ½¨
- Remote control.
- Tipping tank.
- Folding reel.
- Hydraulic or manual full-opening tailgate.
- Fairing.
- Stainless steel drawers and hose reels.
- Air compressor.
- Direct-to-Alternate current inverter. 220 V socket.
- Communication between compartments.
- Transfer pump.
- Reversing camera.
- Rigual IoT Platform.
- MMA: from 10 to 18 Tn
- Capacity: 5,000 to 9,500 litres.
- Bowl material: Carbon steel, Stainless steel.
- High pressure pump212 l/min- 250 bar.
- Depressor: Vane; 20,584 l/min (1240 m3/h).
- Hydrostatic transmission: PTO drive.
- Hydraulic system control: By PLC (Rigual Smart).
- Hydraulic folding reel: 100 m, Ø ¾".
- Reel: Fixed 50 m, Ø ½¨
- Lobular, liquid ring depressors.
- Lobe transfer pumps.
- Irrigation bar.
- Remote control.
- Tipping tank.
- Fairing.
- Manual folding reel.
- Hydraulic or manual full-opening tailgate.
- Fairing.
- Stainless steel drawers and hose reels.
- Air compressor.
- Direct-to-Alternate current inverter. 220 V socket.
- Communication between compartments.
- Transfer pump.
- Reversing camera.
- Rigual IoT Platform.

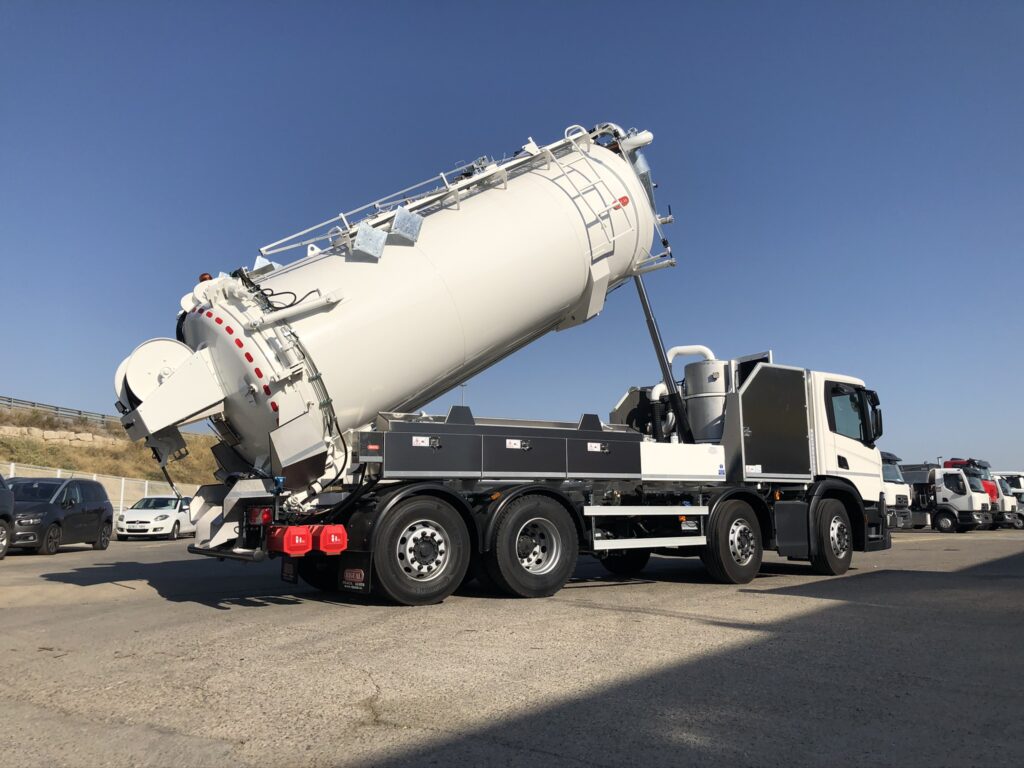

- MMA: from 26 to 35 Tn
- Capacity: from 10,000 to 24,000 litres
- Bowl material: Carbon steel, Stainless steel.
- High pressure pump212 l/min- 250 bar
- Depressor: Vane; 26,700 l/min (1,600 m3/h)
- Hydrostatic Transmission: PTO Drive
- Hydraulic system control: By PLC (Rigual Smart)
- Hydraulic folding reel: 100 m, Ø ¾".
- Reel: Fixed 50 m, Ø ½¨
- Lobular, liquid ring depressors.
- Lobe transfer pumps.
- Waste water recycling system.
- Irrigation bar.
- Remote control.
- Tipping tank.
- Fairing.
- Manual folding reel.
- Hydraulic or manual full-opening tailgate.
- Fairing.
- Stainless steel drawers and hose reels.
- Air compressor.
- Direct-to-Alternate current inverter. 220 V socket.
- Communication between compartments.
- Transfer pump.
- Reversing camera.
- Rigual IoT Platform.
